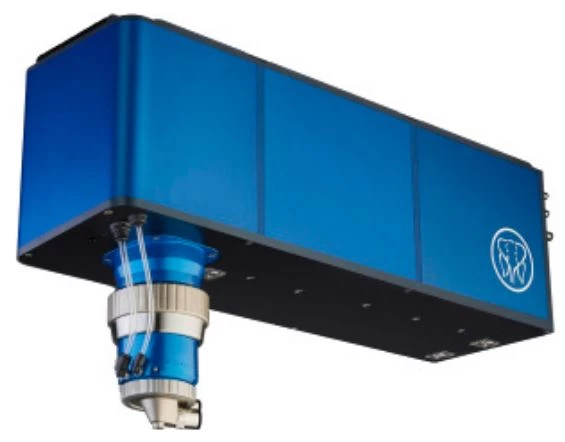

Precession Elephant 2 Multi-Axis Scan Head
Description
Experience unparalleled precision and efficiency in laser drilling and cutting with the Precession Elephant 2 Multi-Axis Scan Head. Engineered by ARGES, a brand under Novanta Corporation, this advanced scan head is meticulously designed for high-precision micromachining applications, setting new standards in performance and reliability.
Featuring a state-of-the-art precession scanning technology, the Precession Elephant 2 is the ultimate solution for demanding laser drilling, cutting, and micromachining tasks. Designed to operate seamlessly 24/7 in production facilities worldwide, this scan head offers maximum flexibility for creating innovative borehole-and edge geometries with varying conicity, taper angles, and shapes.
Equipped with customizable options for ultraviolet, green, and two infrared wavelength ranges, the Precession Elephant 2 is compatible with all major ultra-short pulsed laser sources available in the market today. Its advanced monitoring capabilities allow real-time monitoring of laser processes and beam properties during production, ensuring consistent quality and performance.
In addition to its advanced features, the Precession Elephant 2 offers enhanced particle extraction, beam attenuation control, and additional functionalities designed for mass production of the highest quality. With options for setting and calibration of polarization, along with various process control options, downtime is minimized, and productivity is maximized.
Tailored engineering capabilities by Novanta allow for laser-specific customization, subsystem integration, customer-specific software extensions, and laser process development, ensuring that the Precession Elephant 2 meets the unique requirements of every application.
Precession Elephant 2 Multi-Axis Scan Head
Specifications |
|
|---|---|
| Input Aperture: | 26 mm |
| Wavelength: | 527 nm (green), 532 nm (green), 1030 - 1080 nm, Other Broadband |
| Max Scan Rate: | -- m/s |
| Focal Length: | 60-120 mm |
| Work Area X: | -- mm |
| Work Area Y: | -- mm |
| Z Tolerance: | -- mm |
| Max Laser Power: | -- W |
| Weight: | -- kg |
| Options: | Water Cooling |
| Intended Application: | Laser Cutting, Laser Micromachining, Other |
| Number Of Axes: | 5 - 8 |
| Precession Frequency 2: | 00 – 600 Hz (12 000 – 36 000 rpm), depending on incidence angle |
| Purge Gas (Head / Lens): | Nitrogen / Any |
Features
- High-precision precession scanning technology
- Customizable options for ultraviolet, green, and infrared wavelength ranges
- Real-time monitoring of laser processes and beam properties
- Enhanced particle extraction and beam attenuation control
- Options for setting and calibration of polarization
- Tailored engineering capabilities for customer-specific requirements
Applications
- Laser drilling of innovative borehole-and edge geometries
- High-precision cutting of complex shapes and materials
- Micromachining of perfectly round, elliptical, and custom-shaped micro holes
- Mass production of high-quality components and materials
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The Precession Elephant 2 is equipped with state-of-the-art precession scanning technology, offering unparalleled precision and efficiency for laser drilling, cutting, and micromachining applications.
The scan head is compatible with all major ultra-short pulsed laser sources available in the market today, offering customizable options for ultraviolet, green, and two infrared wavelength ranges.
The scan head features advanced monitoring capabilities, enabling real-time monitoring of laser processes and beam properties, ensuring consistent quality and performance throughout production.
In addition to its advanced features, the Precession Elephant 2 provides enhanced particle extraction, beam attenuation control, and various process control options designed for mass production of the highest quality.
Yes, tailored engineering capabilities by Novanta allow for laser-specific customization, subsystem integration, customer-specific software extensions, and laser process development, ensuring the scan head meets the unique requirements of every application.
