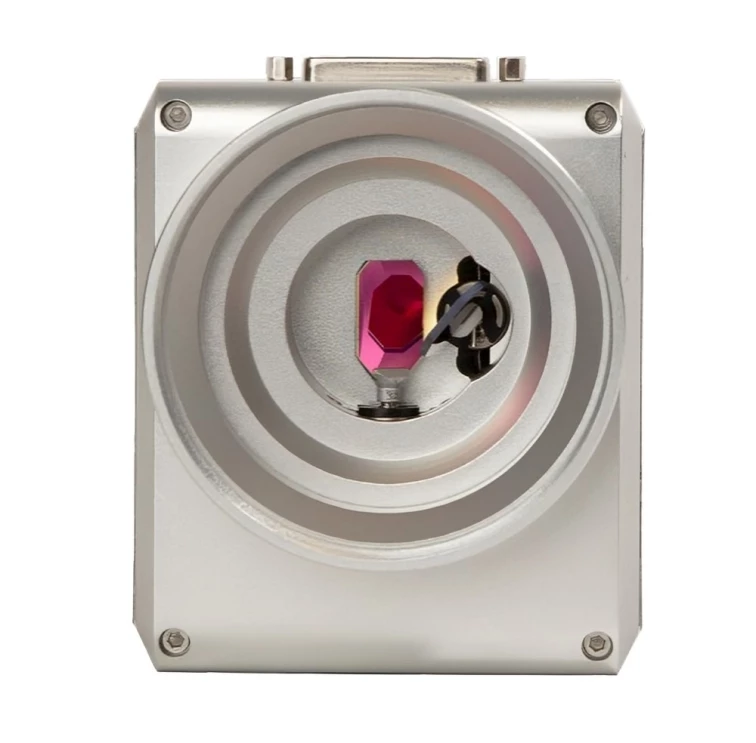

MOVIA 2-Axis Compact Scan Head

Specifications

Input Aperture: 10 mm
Wavelength: 351 nm (UV), 355 nm (UV), 532 nm (green), 1030 - 1080 nm, 9.4 - 10.6 μm, Other Broadband, Other (see Data Sheet)
Max Scan Rate: 3 m/s
Focal Length: Not Specified
Work Area X: Not Specified
Work Area Y: Not Specified
Z Tolerance: Not Specified
Max Laser Power: 125 W
Weight: 1.5 kg
Options: Water Cooling
Intended Application: Laser Marking, Laser Engraving, Laser Cutting, Laser Micromachining, Other
Tune Type: Vector tune
Scan Angle: ±20°
Beam Displacement: 12.05 mm
Step Response Time 1% Of Full Scale: <210 µs
Typical Positioning Speed: 16.3 m/s
Repeatability: 3.5 mrad
Tracking Error: <130 µs
Linearity: > 99.9% over 20°
Temperature Offset Drift: <20 µrad/°C
Command Resolution: 16-bit
Communication Interface: XY2 - 100
IP Rating: IP50
Power Requirements: ±15V, 3A RMS
Operating Temperature: 15-35 °C
Dimensions (L X W X H): 114 x 94 x 86 mm
Document icon Download Data Sheet Download icon

Features


  • Compact design for easy integration into existing systems

  • Supports industry-standard interfaces and connectors

  • High-quality character marking facilitated by improved electronics and tuning design

  • Tested under extreme conditions for reliability and durability

  • Compatibility with Synrad's CO2 lasers and Cambridge Technology's ScanMaster Controller

Applications


  • Marking and coding processes

  • Micromachining applications

  • Non-contact marking of logos, alpha-numeric codes, barcodes, graphics, expiration dates, etc.
