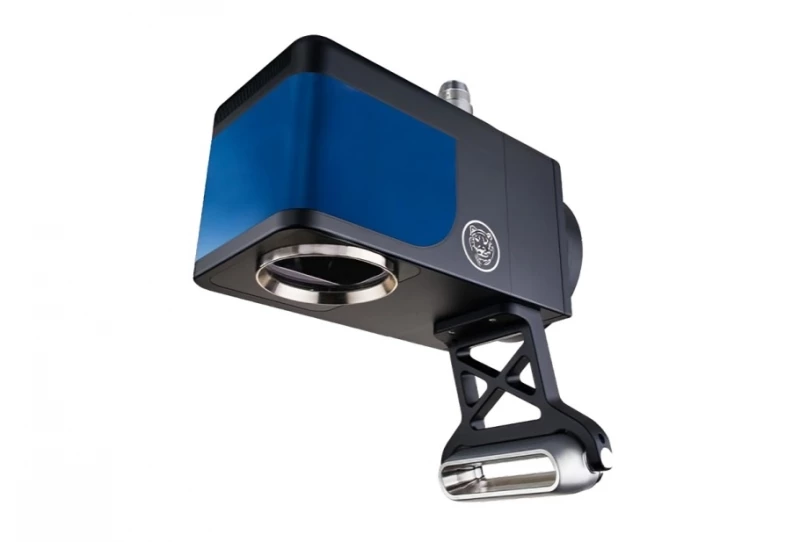

Fiber Tiger 3-Axis Scan Head
Description
The Fiber Tiger 3-Axis Scan Head, meticulously engineered by ARGES under the esteemed banner of Novanta Corporation, stands as a pinnacle of precision and innovation in laser material processing technology. This compact yet robust scan head is purpose-built for robot-assisted laser processing and dynamic 'on-the-fly' applications, particularly in the mid to high kW range. Its exceptional design incorporates a highly dynamic Z-axis, enabling ultrafast and precise 3-axis laser material processing across a wide range of industrial applications.
Crafted with a keen focus on versatility and performance, the Fiber Tiger scan head caters to the stringent demands of various sectors, including aviation, automotive, additive manufacturing, production of large technical goods, and precision mechanics. Its capability to deliver high-precision welding of electronic components, intricate cutting of pre-painted chassis panels, and robust welding of automotive components underscores its adaptability and reliability in diverse manufacturing environments.
One of the hallmark features of the Fiber Tiger is its compatibility with all commercially available single-mode or multi-mode fiber lasers, ensuring seamless integration into existing laser processing systems. The integrated beam expander optimizes performance, enhancing the scan head's efficiency and accuracy during operation.
Designed to thrive even in harsh operating conditions, the Fiber Tiger boasts an innovative 'Crossjet' design that provides additional protection for critical components, including the protective window and optics. This design not only prolongs the service life of the scan head but also ensures consistent performance even in environments with intense sparking and debris.
Moreover, the Fiber Tiger offers a range of optional features tailored to meet specific application requirements. From high-resolution vision systems for enhanced process monitoring to sensor ports for pyrometry, plasma detection, or OCT (optical coherence tomography), the Fiber Tiger empowers manufacturers with unparalleled flexibility and control over their laser processing workflows.
In addition to its technical prowess, the Fiber Tiger exemplifies Novanta's commitment to customer satisfaction and innovation. Through tailored engineering capabilities, Novanta collaborates closely with customers to develop bespoke laser processing solutions that address unique application needs. Whether it's laser-specific customization, sub-system integration, or software extensions, Novanta's dedicated team of experts ensures that each solution is meticulously tailored to deliver optimal results.
With its compact dimensions, robust construction, and unparalleled performance, the Fiber Tiger 3-Axis Scan Head stands as a beacon of excellence in the realm of laser material processing, empowering manufacturers to achieve new levels of precision, efficiency, and quality in their production processes.
Fiber Tiger 3-Axis Scan Head
Specifications |
|
|---|---|
| Input Aperture: | 36 mm |
| Wavelength: | 532 nm (green), 800 nm (near IR), 810 nm (near IR), 1054 nm (IR), 1064 nm (IR), 1070 nm (IR), Other (see Data Sheet) |
| Max Scan Rate: | 12.4 - 22.3 m/s |
| Focal Length: | -- mm |
| Work Area X: | 240 - 478 mm |
| Work Area Y: | 240 - 478 mm |
| Z Tolerance: | 70 - 200 mm |
| Max Laser Power: | 8000 W |
| Weight: | 7.8 kg |
| Options: | High Precision, Large Focal Length |
| Intended Application: | Laser Marking, Laser Engraving, Laser Cutting, Laser Welding, Laser Dicing, 3D Printing |
| Working Distance: | 275 mm |
| Repeatability: | <0.5 mrad |
| Zero Position Drift: | <5 µrad/K |
| Grain Drift: | <15 ppm/K |
| Max Scan Angle: | 0.79 rad |
| Linearity: | >99.9 % |
| Supply Voltage, DC: | 48 V |
| Max Supply Input Current: | 8.0 A |
| Operating Temperature Range: | 10-40 °C |
| Storage Temperature Range: | 0-50 °C |
| Non‑Condensing Humidity: | 10-80 % |
| Pressure: | 3-5 bar |
| Recommended Tube Material: | Polyether Polyurethan |
| Dimmensions ( L X W X H): | 289 x 160 x 160 mm |
Features
- Compact and robust design
- Highly dynamic Z-axis for ultrafast and precise 3-axis laser material processing
- Suitable for all commonly used materials including metals, plastics, and ceramics
- Crossjet design for enhanced scan head protection in harsh environments
- Optional features include high-resolution vision systems and sensor port for pyrometry, plasma detection, or OCT
- Compatible with all commercially available single-mode or multi-mode fiber lasers
- Integrated beam expander for optimized performance
- Fast Z-axis with acceleration of 800 m/s²
Applications
- High-precision welding of electronic components
- Cutting of pre-painted chassis panels
- Welding of automotive components
- Laser material processing in aviation, automotive, additive manufacturing, production of large technical goods, and precision mechanics industries
