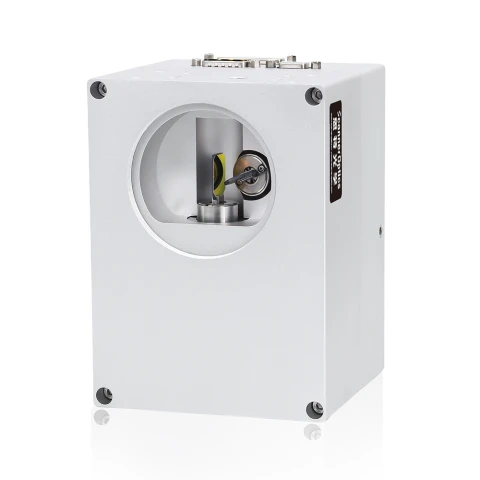

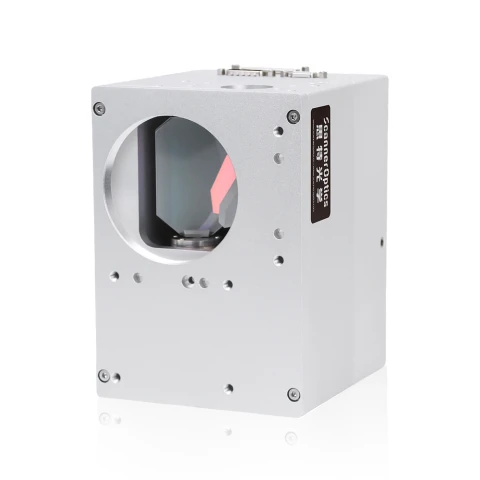

ExtraScan IV Laser Scan Head with Digital Servo and PWM Output Stage
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Scanner Optics Co.,Ltd -
On FindLight:
since 2025
Description
ExtraScan Laser Scan Head: High-Precision, Stability-Driven Beam Steering Solution
The ExtraScan Laser Scan Head is a next-generation galvanometer scanning solution designed to meet the growing demand for precision, speed, and long-term reliability in industrial laser applications. Engineered with a self-developed high-precision 23-bit grating encoder and a fully digital servo motor, this scan head delivers exceptional positioning accuracy and repeatability, making it ideal for high-end manufacturing scenarios.
High-Resolution Feedback with 23-bit Encoder
At the heart of the ExtraScan system lies its 23-bit optical grating encoder, capable of detecting ultra-fine position changes with sub-microradian resolution. This ensures that the laser beam can be steered with exceptional precision, minimizing deviation even in high-speed, multi-axis applications. Whether for intricate micromachining or fine feature processing, this encoder guarantees stable, repeatable performance.
Real-Time Galvanometer Status Monitoring
The system includes an intelligent real-time monitoring module that continuously evaluates the operational status of the galvanometer motor. By providing instant feedback on motor position, thermal condition, and system health, this feature significantly enhances operational safety and reduces downtime due to undetected faults. Operators can rely on consistent output even in complex or continuous-duty production environments.
Fully Digital Servo System for Drift-Free Performance
Unlike analog or hybrid systems, the ExtraScan Scan Head adopts a fully digital control architecture, eliminating the inherent drift and signal degradation found in traditional analog feedback loops. This digital precision leads to improved stability over long operating cycles, reduced recalibration needs, and better integration with modern laser control software.
ExtraScan IV Laser Scan Head with Digital Servo and PWM Output Stage
Specifications |
|
|---|---|
| Input Aperture: | 10 mm |
| Wavelength: | Other (see Data Sheet) |
| Max Scan Rate: | Not Specified |
| Focal Length: | Not Specified |
| Work Area X: | Not Specified |
| Work Area Y: | Not Specified |
| Z Tolerance: | Not Specified |
| Max Laser Power: | Not Specified |
| Weight: | Not Specified |
| Options: | Water Cooling |
| Intended Application: | 3D Printing |
| Input Beam Aperture (mm): | 10 |
| Beam Displacement (mm): | 12.67 |
| Tracking Error (ms): | 0.14 |
| Repeatability (µrad): | <1 |
| Offset Drift (µrad/K): | <12 |
| Gain Drift (ppm/K): | <8 |
| Long-Term Drift Over 8h (mrad): | <0.04 |
| 1% Of Full Travel (ms): | 0.30 |
| 10% Of Full Travel (ms): | 0.7 |
| Positioning Speed (rad/s): | 200 |
| Scan Angle (°): | ±25 |
| Gain Error (mrad): | <5 |
| Offset Offset (mrad): | <5 |
| Nonlinearity (%): | <0.1 |
| Power Requirements: | 48VDC, ≥5A |
Features
The ExtraScan IV Scan Head features a digital PWM output stage, which significantly reduces power consumption and heat generation. This not only improves energy efficiency but also contributes to extended system lifespan and higher operational stability in demanding environments.
Applications
The ExtraScan IV Galvo Scan Head is well-suited for a variety of high-precision laser applications, including micromachining, photovoltaic cell processing, and 3D printing. Its exceptional positioning accuracy, low thermal drift, and real-time status monitoring make it ideal for demanding environments where precision, efficiency, and long-term stability are essential.
