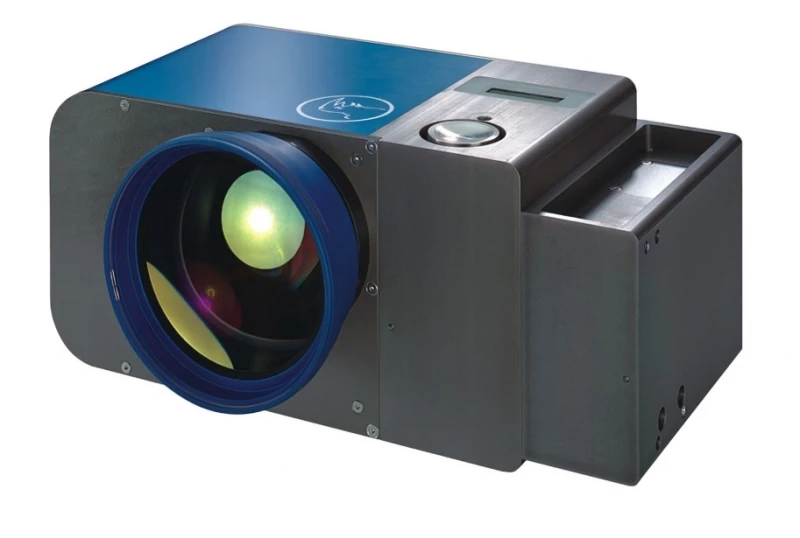

Thumbnail of Fiber Rhino 2-Axis Scan Head photo 1

Description

Experience unparalleled versatility and precision in laser-based applications with the Fiber Rhino 2-Axis Scan Head, engineered by ARGES, a globally recognized brand under Novanta Corporation. Offering the largest aperture sizes within its portfolio, ranging from 16 to 31 mm, the Fiber Rhino is designed to meet the demands of vision and measurement systems, as well as multi-kilowatt applications.

The Fiber Rhino scan head boasts a robust electronic design utilizing state-of-the-art surface mount technology, maximizing thermal stability and ensuring both static and dynamic optical performance. Its compact yet durable housing houses advanced features that cater to a wide variety of industrial system manufacturers and integrators.

With the option for customization, including a version without fiber coupling, the Fiber Rhino scan head offers unmatched flexibility to suit diverse application requirements. Whether you need laser-specific customization, sub-system integration, or customer-specific software extensions, the Fiber Rhino delivers tailor-made solutions for your laser processing needs.

Fiber Rhino 2-Axis Scan Head

Visit the Novanta Photonics Store

Specifications

Input Aperture: 16 mm
Wavelength: Other (see Data Sheet)
Max Scan Rate: Not Specified
Focal Length: Not Specified
Work Area X: Not Specified
Work Area Y: Not Specified
Z Tolerance: Not Specified
Max Laser Power: 15 W
Weight: 3.7 kg
Options: Water Cooling
Intended Application: Laser Marking, Laser Engraving, Laser Cutting, Laser Welding, Laser Dicing, Laser Micromachining, 3D Printing, Other
Repeatability: < 20 mrad
Longterm Offset Drift: < 0.3 mrad
Scan Angle: ±25°
Skew: < 1.2 mrad
Linearity: > 99.9 %
Supply Voltage, DC:: +/- 24 V
Ambient Operating Temperature: 10-40 °C
Ambient Storage Temperature: 0-50 °C
Non-condensing Humidity: 10-80 %
Pressure: 3-5 bar
Recommended Tubing Material: Polyether Polyurethane
Dimensions ( L X W X H): 200 x 145 x 182.5 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Largest aperture sizes in its portfolio (16 to 31 mm)
  • State-of-the-art surface mount technology for maximum thermal stability
  • Compact and robust housing design
  • Versatile interfaces: standard analog inputs, XY2-100 protocol, or proprietary interface with Plug

Applications

  • Laser Welding
  • Laser Cutting
  • Laser Hardening
  • Microscopy
  • Measurement Systems
  • Multi-kilowatt Applications

Frequently Asked Questions

What makes the Fiber Rhino 2-Axis Scan Head stand out?
The Fiber Rhino offers the largest aperture sizes within its portfolio, ranging from 16 to 31 mm, providing unparalleled versatility for various laser-based applications. Its robust electronic design utilizing state-of-the-art surface mount technology ensures maximum thermal stability and exceptional optical performance, setting it apart from other scan heads.
How does the Fiber Rhino ensure stability and performance in laser processing applications?
The scan head features state-of-the-art surface mount technology in its electronic design, maximizing thermal stability. This ensures both static and dynamic optical performance, guaranteeing stability and precision in laser processing tasks. Additionally, its compact and durable housing design further enhances stability and performance in industrial environments.
What customization options are available for the Fiber Rhino scan head?
The Fiber Rhino offers customization options to meet specific application requirements. It includes a version without fiber coupling, providing flexibility for integrators. Moreover, it can be tailored to accommodate laser-specific customization, sub-system integration, or customer-specific software extensions, ensuring it meets the unique needs of various laser processing applications.
What interfaces are supported by the Fiber Rhino scan head?
The Fiber Rhino scan head offers versatile interfaces to cater to different integration needs. It supports standard analog inputs, the XY2-100 protocol, or a proprietary interface with Plug. This flexibility allows seamless integration into existing systems, providing convenience and compatibility for industrial system manufacturers and integrators.
How does the Fiber Rhino contribute to the efficiency of vision and measurement systems?
With its largest aperture sizes in the portfolio and advanced electronic design, the Fiber Rhino enhances the efficiency of vision and measurement systems. Its thermal stability and precise optical performance ensure accurate and reliable operation, making it an ideal choice for applications requiring high precision and versatility in laser-based measurements.

Got more questions? Use the inquiry form to ask the supplier directly.
