Description

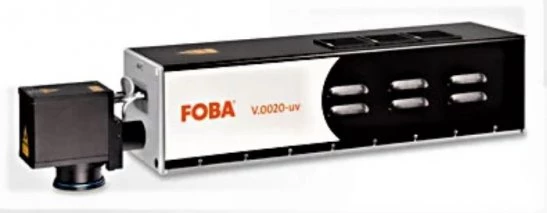

The FOBA V.0020-uv ultraviolet marking laser applies high-contrast markings on sensitive products. As the vector scanning laser colors the product's surface photo-chemically, the heat that results from laser marking is so little that even highly sensitive products and materials remain undamaged: from aircraft cables and translucent or colored tubes for various industries through medical plastics for invasive applications or flame-resistant plastics for electronic housings to glass.

With a typical pulse duration of 20 ns and a beam diameter of 10 µm, V.0020-uv only colors the surface (instead of foaming the material) so that the product itself remains undamaged. This is how permanent laser marks that are capable of sterilization can be applied on medical technology products such as catheters or insulin pumps, and this is also how filigree and brilliant laser marks can be applied on glass without breaking it.

With V.0020-uv now also silicones or white polyamides can be laser marked. It is this capability of marking highly sensitive and previously unmarkable materials damage-free that makes FOBA\'s UV laser marker a pioneering one.

Specifications

Work Area X: 64 mm
Work Area Y: 76 mm
Beam Delivery: Other
Laser Source: DPSS (Nd:YVO4)
Laser Output Power: 20 W
Laser Wavelength: 355 nm (UV)
Marking Speed: 5000 mm/sec
Voltage Requirement: 110V - 60Hz, 240V - 50Hz
Materials: Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Plexiglass
Air Assist: Included
Fume Extraction Unit: Not specified
Safety Enclosure: Not Specified

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

This UV Fiber Laser Marker comes with several key features that makes it a a superior machine for many applications:
  • Safety and integrity for sensitive and critical materials
  • Hygiene and sterility for UV laser marked medical plastics
  • Filigree, high-contrast markings
  • Solvent-free and additive-free marking of plastics
  • Low-maintenance thanks to long-lasting diodes
  • Economic due to efficient air-cooling

Applications

  • Automobile and aircraft construction, medical technology, electronics, extrusion;
  • Marking of sensitive materials: glass, ceramics, flame-protected plastics, plastics and materials for invasive applications

Frequently Asked Questions

How does the FOBA V.0020-uv laser mark products without damaging them?
The FOBA V.0020-uv laser uses a vector scanning laser to color the product's surface photo-chemically, which produces very little heat. This allows the product to remain undamaged while still receiving a permanent laser mark.
What are some key features of the FOBA V.0020-uv laser marker?
The FOBA V.0020-uv laser marker offers safety and integrity for sensitive and critical materials, hygiene and sterility for UV laser marked medical plastics, filigree and high-contrast markings, solvent-free and additive-free marking of plastics, low-maintenance due to long-lasting diodes, and economic efficiency due to efficient air-cooling.
What is the typical pulse duration and beam diameter of the FOBA V.0020-uv laser?
The FOBA V.0020-uv laser has a typical pulse duration of 20 ns and a beam diameter of 10 µm.
What kind of industries can benefit from using the FOBA V.0020-uv laser marker?
The FOBA V.0020-uv laser marker can benefit industries such as automobile and aircraft construction, medical technology, electronics, and extrusion.
What kind of products can the FOBA V.0020-uv laser mark?
The FOBA V.0020-uv laser can mark sensitive products such as aircraft cables, translucent or colored tubes, medical plastics, flame-resistant plastics, glass, silicones, and white polyamides.
