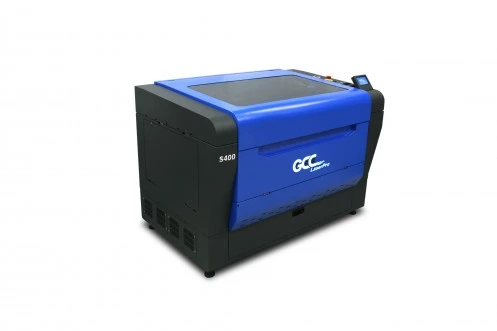

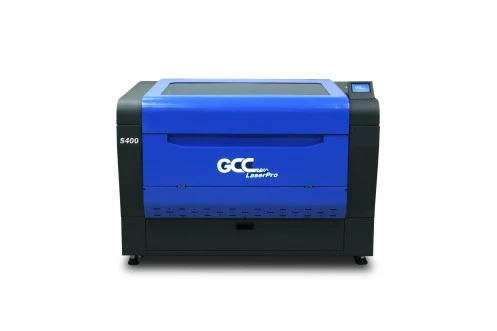

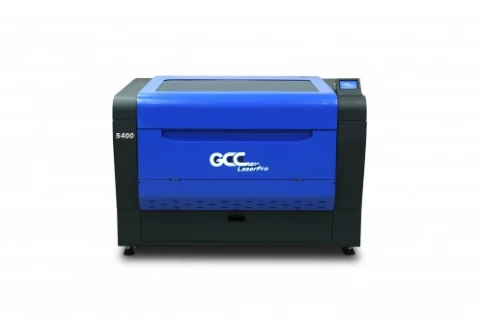

GCC LaserPro S400 - CO2 and Fiber Laser Engraver
Description
This is a flatbed laser engraving and cutting machine. Inherit all the advantages from Spirit Hybrid, a brand new machine – S400 features 140ips processing speed by DC servo motor, innovative touch panel, user-friendly interface and a modern good looking design.
Together with SmartFLOW™ dust prevention technology and SmartLID™ easy access invention, S400 presents you the highest throughput and precise laser quality.
GCC S400 makes all your imaginations to life at the speed of light.
For more details, please inquire.
GCC LaserPro S400 - CO2 and Fiber Laser Engraver
Specifications |
|
|---|---|
| Work Area (X): | 1016 mm |
| Work Area (Y): | 610 mm |
| Material Thickness: | 280 mm |
| Laser Source: | Fiber Laser, CO2 Laser |
| Laser Output Power: | 20 - 120 W |
| Resolution: | 125-1500dpi |
| Max Engraving Speed: | 3556 mm/sec |
| Machine Type: | Benchtop |
| Beam Delivery: | Flatbed |
| Materials: | Marble, Glass, Plastic, Metal, Other |
| Function: | Laser Engraving, Laser Cutting |
| Application: | Industrial, Commercial, Hobby, Home, Auto Parts Engraving, Shoes Engraving, Scientific Applications |
| Air Assist Pump: | Not Specified |
| Output Power Options (CO2): | 30~120W |
| Output Power Range (Fiber): | 20~60W |
Features
S400 Flatbed Laser Engraver comes with a number of important features:
- Perfect Cutting and Engraving Throughput
- Depth of Z-axis up to 11” (280mm)
- Dust Prevention
- Intuitive Touch Screen
- SmartLID™ Easy Access
- SmartFLOW™ Technology
- SmartACT™ (Patented)
- Pass-through Front & Rear Doors (Optional)
- User friendly driver interface
- SmartSEAL™ Technology
Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Taiwan
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Yes, S400 has a built-in material database with parameter settings for different materials, making it easier to select the appropriate job type and material category.
The maximum depth of the Z-axis in S400 is up to 11” (280mm).
The processing speed of GCC LaserPro S400 is 140ips by DC servo motor.
S400 can engrave or cut a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal and more.
S400 uses SmartFLOW™ technology for dust prevention.
