Description

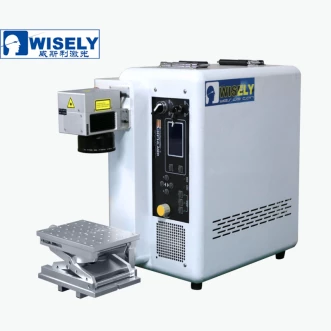

The UV Laser Marking Machine MY-UV03 is a state-of-the-art device that incorporates the advanced INNGU UV Laser source, utilizing third-order cavity frequency doubling technology. Unlike infrared lasers, this machine operates at a wavelength of 355nm, providing a smaller spot size and greater focal depth. The short wavelength of the UV laser is capable of interrupting molecular chains within materials, which significantly reduces mechanical deformation and temperature distortion. This makes it a "cold laser," ideal for super precise marking and engraving tasks.
One of the standout features of the UV Laser Marking Machine is its ability to perform with extraordinary precision, making it particularly suitable for sectors that demand high accuracy, such as food and pharmaceutical packaging. The machine's capability to create micro porous structures and execute high-speed divisions on glass, as well as complex graphics wafer cutting on silicon materials, underscores its versatility and precision. The UV laser beam is generated after a high-power multimode diode is pumped and frequency doubled, allowing for highly controlled marking through a computer-operated high-speed scanning galvanometer.
With its high-quality laser beam and small spot size, the UV Laser Marking Machine ensures super precise marking and engraving. The cold laser technology minimizes the heat-affected zone, ensuring that materials are not burned or deformed during the marking process. This machine is not only efficient and stable but also compact and energy-efficient, making it an excellent choice for materials that are sensitive to thermal radiation. Its ability to integrate with production lines for automatic feeding and discharge of materials further enhances its industrial applicability.
Wisely UV Laser Engraver for Glass Crystal Wood
Specifications |
|
|---|---|
| Work Area (X): | 100 mm |
| Work Area (Y): | 100 mm |
| Laser Source: | Fiber Laser |
| Laser Output Power: | 3 W |
| Resolution: | 200 – 400 dpi |
| Max Engraving Speed: | 7000 mm/sec |
| Machine Type: | Benchtop, Portable |
| Beam Delivery: | Galvo |
| Materials: | Granite, Glass, Plastic |
| Function: | Laser Engraving, Laser Marking |
| Application: | Commercial, Hobby, Auto Parts Engraving, Shoes Engraving, Scientific Applications |
| Air Assist Pump: | Optional |
| Working Size: | 70*70mm / 140*140mm / 175*175mm / 200*200mm / 300*300mm |
| Laser Source: | INNO Laser(ADVANCED OPTOWAVE CORPORATION) |
| Scan Head: | GalvoTech |
Features
- Cold UV Marking Technology: Minimal thermal damage with 355nm laser for ultra-precise results
- High Beam Quality: M² < 1.2 with ≤0.01 mm spot diameter for sharp, detailed marking
- Fast and Accurate: Up to 7000 mm/s with ±0.003 mm repeatability
- Broad Material Compatibility: Works on plastics, glass, metals, ceramics, PCBs, and more
- Integrated Software and Controller: EZCAD software + BJJCZ controller for seamless operation
- Compact & Modular Design: Small footprint, water-cooled, easily adaptable to automation systems
- Low Power Consumption: High efficiency with adjustable laser power and frequency
Applications
- Precision Processing of High-End Market Products: Ideal for marking and engraving on high-end market products such as handicrafts, medicine, cosmetics, and video packaging bottles. The marks are precise, durable, and superior to ink printing, with no pollution.
- Flexible PCB Marking and Scribing: Suitable for marking and scribing on flexible PCBs, allowing for detailed and accurate processing.
- Silicon and Wafer Processing: Capable of creating micro holes and blind holes on silicon and wafer materials, providing high precision for electronic components.
- LCD Glass QR Code Marking: Perfect for marking QR codes on LCD glass, ensuring clear and permanent identification.
- Glassware Punching: Useful for creating precise punches on glassware, maintaining structural integrity.
- Metal Surface Coating Marking: Excellent for marking coated metal surfaces without damaging the underlying material.

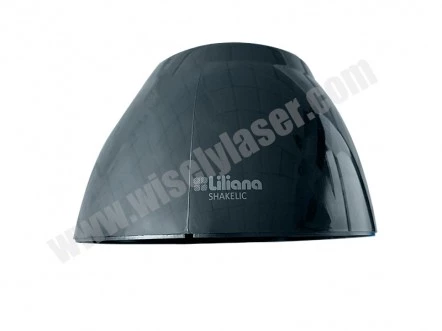

- Plastic Buttons and Communications Equipment: Suitable for marking on plastic buttons and various communications equipment, providing clear and durable labels.

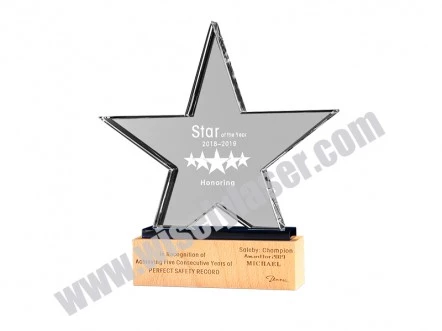

- Gifts and Promotional Items: Ideal for engraving and marking gifts and promotional items, adding a personalized touch.
Frequently Asked Questions
The UV laser engraver provides a small-size spot and a big focal depth, reducing mechanical deformation and temperature distortion of materials.
The UV laser engraver is suitable for food and pharmaceutical packaging materials, glass, silicon materials, and more.
No, the UV laser engraver has a very small heat affected area and does not cause material burning or deformation.
Yes, the UV laser engraver can achieve super precise marking and engraving, including complex graphics.
Yes, the UV laser engraver can work with production lines to automatically feed and discharge materials.
