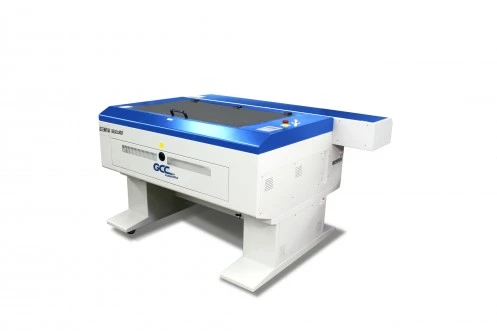

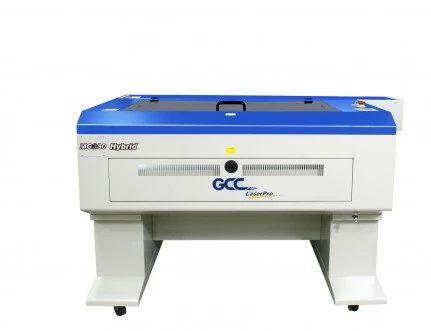

Hybrid Laser Engraver and Cutter: MG380Hybrid by GCC LaserPro

Description

The GCC LaserPro MG380Hybrid is equipped with metal laser tube and glass laser tube at the same time which allow users to produce superior engraving and cutting work piece. This all-in-one machine saves your storage space and makes your profit maximum. The GCC LaserPro always has an edge over the others with numerous uniquely innovative and user-friendly features.

https://youtu.be/lD3nJ8xsJT8

Specifications

Work Area (X):	960 mm
Work Area (Y):	610 mm
Material Thickness:	165 mm
Laser Source:	CO2 Laser
Laser Output Power:	100 W
Resolution:	125 – 1000 dpi
Max Engraving Speed:	1016 mm/sec
Machine Type:	Benchtop
Beam Delivery:	Flatbed
Materials:	Plastic, Metal, Other
Function:	Laser Engraving, Laser Cutting
Application:	Industrial, Hobby, Home, Scientific Applications
Air Assist Pump:	Included
Metal Laser Tube::	12-25W
Glass Laser Tube::	100W

Download Data Sheet

Features

RoHS Compliance
Dual Laser Tubes (Patented)
Innovative Software Features
Emergency Stop
Motion System with DC Servo Motor
AutoFocus (Patented)
Programmable Origin
SmartBOX™ (Optional)
Pass-Through Front and Rear Doors (Optional)
Easy-to-use Control Panel
Rigid and Reliable Construction
Superb Engraving and Cutting Quality
AAS Contour Cutting Device (patented)(Optional)
Job Preview Function

Applications

The material database consists of built-in parameter settings for a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal and more. With this convenient selecting the appropriate job type (engraving or cutting) and material category, minimizing wasted time and materials.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Taiwan

Sold by:

GCC

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

Does the GCC LaserPro MG380Hybrid come with a material database?

Yes, the GCC LaserPro MG380Hybrid comes with a material database consisting of built-in parameter settings for a wide variety of materials, making it easy to select the appropriate job type and material category and minimizing wasted time and materials.

What are the features of the GCC LaserPro MG380Hybrid?

The features of the GCC LaserPro MG380Hybrid include RoHS compliance, dual laser tubes, innovative software features, emergency stop, motion system with DC servo motor, autofocus, programmable origin, SmartBOX (optional), pass-through front and rear doors (optional), easy-to-use control panel, rigid and reliable construction, superb engraving and cutting quality, and AAS contour cutting device (optional).

What is the benefit of the dual laser tubes?

The dual laser tubes of the GCC LaserPro MG380Hybrid allow users to produce superior engraving and cutting work pieces, and also save storage space.

What is the GCC LaserPro MG380Hybrid?

The GCC LaserPro MG380Hybrid is an all-in-one laser engraver and cutter equipped with both metal and glass laser tubes.

What materials can the GCC LaserPro MG380Hybrid work with?

The GCC LaserPro MG380Hybrid can work with a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal, and more.
