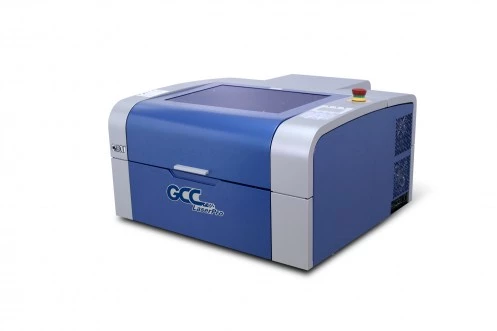

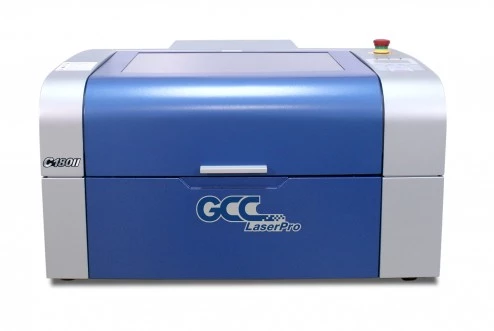

Desktop Laser Engraver: C180II by GCC LaserPro

Description

This is a desktop laser engraver. The C180II is designed to provide an enjoyable engraving experience. Underneath the stylish exterior is a full 18\" x 12\" (458 x 305 mm) working area. Engraving depth can be easily extended from the normal 4 inches to 6 inches in less than a minute. The C180II is an all purpose laser engraving system that delivers spectacular engraving and cutting results and makes every job a pleasant working experience.

https://youtu.be/nBFk-lxIVa0

For more details, please inquire.

Specifications

Work Area (X):	458 mm
Work Area (Y):	305 mm
Material Thickness:	155 mm
Laser Source:	CO2 Laser
Laser Output Power:	40 W
Resolution:	125 – 1000 dpi
Max Engraving Speed:	1016 mm/sec
Machine Type:	Tabletop
Beam Delivery:	Flatbed
Materials:	Glass, Plastic, Metal, Other
Function:	Laser Engraving
Application:	Commercial, Hobby, Home
Air Assist Pump:	Not Specified

Download Data Sheet

Features

This desktop laser engraver comes with the following key features:

Closed-loop DC Servo Motor and Reliable Motion System
TrueImage (Patented)
Open Front Door Design
Drag-N-Play
Simple and Intuitive Control Panel
SmartPIN™ AutoFocus (Patented)
Dust Protection Design (Patented)
Programmable Origin Modes
Internal LED Lighting
Built-in SmartBOX™
SmartCENTER™ (Patented)
Job Preview Function
Bridge Cutting

Applications

The material database consists of built-in parameter settings for a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal and more. With this convenient selecting the appropriate job type (engraving or cutting) and material category, minimizing wasted time and materials.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Taiwan

Sold by:

GCC

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

Can the engraving depth be extended on the C180II desktop laser engraver?

Yes, the engraving depth can be easily extended from the normal 4 inches to 6 inches in less than a minute.

Is there a video demonstration of the C180II desktop laser engraver?

Yes, there is a video demonstration of the C180II desktop laser engraver available at https://youtu.be/nBFk-lxIVa0.

What are some key features of the C180II desktop laser engraver?

Some key features of the C180II desktop laser engraver include closed-loop DC servo motor and reliable motion system, TrueImage (patented), open front door design, drag-n-play, simple and intuitive control panel, SmartPIN™ autofocus (patented), dust protection design (patented), programmable origin modes, internal LED lighting, built-in SmartBOX™, SmartCENTER™ (patented), and job preview function.

What is the working area of the C180II desktop laser engraver?

The working area of the C180II desktop laser engraver is 18" x 12" (458 x 305 mm).

What materials can be engraved or cut using the C180II desktop laser engraver?

The material database consists of built-in parameter settings for a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal and more.
