Description

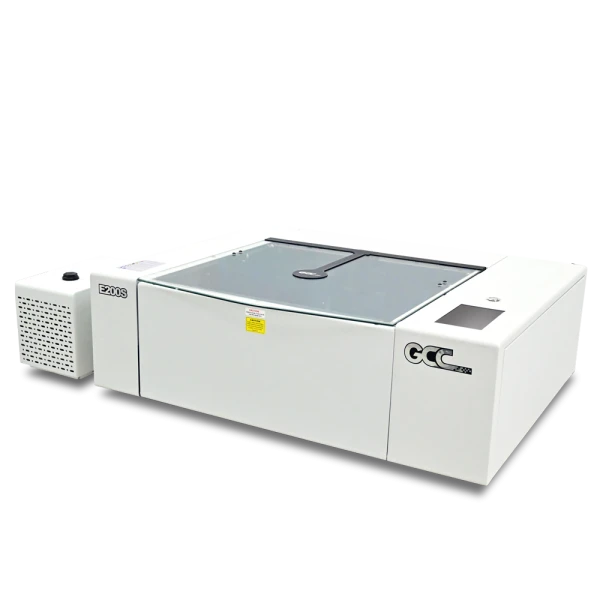

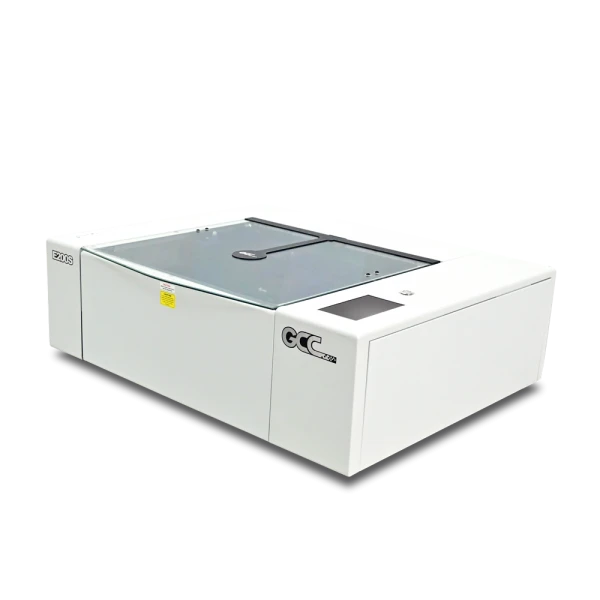

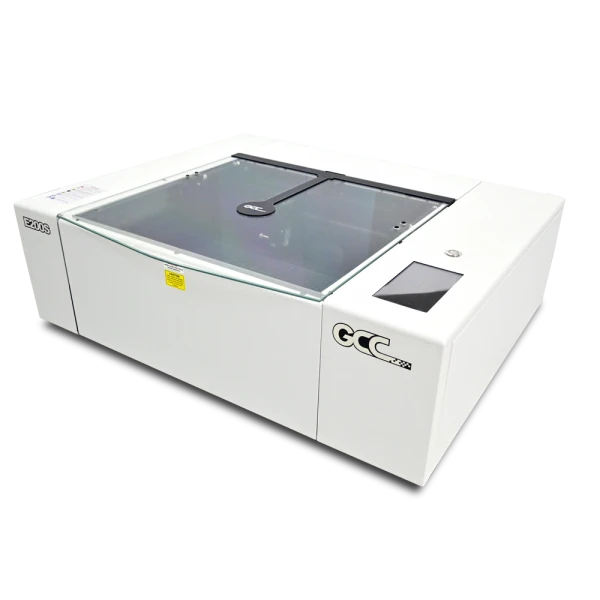

E200S Series is GCC latest LaserPro professional-grade co2 desktop laser engraving machine, containing advanced functions with user-friendly design and excellent artwork presented.

E200S Series CO2 desktop laser engraver provides an easy operating workflow and is able to complete different processing procedures quickly, containing various advanced functions with stable quality and excellent safety features.

Specifications

Work Area (X):	510 mm
Work Area (Y):	330 mm
Material Thickness:	10 mm
Laser Source:	CO2 Laser
Laser Output Power:	40 W
Resolution:	250 – 1000 dpi
Max Engraving Speed:	510 mm/sec
Machine Type:	Small
Beam Delivery:	Flatbed
Materials:	Granite, Marble, Plastic, Other
Function:	Laser Engraving, Laser Marking, Laser Cutting
Application:	Hobby, Home
Air Assist Pump:	Included

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

510 x 330 mm
Desktop Laser Engraver
7” Touch Screen Control Panel
Stamp Mode with shoulder level function
SmartEYES™ for live preview (E200S)
Multifunction user interface for both beginners and advance users
0.51 m/s (20 in/s) High Speed throughput
StandardWater-cooled chiller or Air-cooled design for high production

Applications

The material database consists of built-in parameter settings for a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal and more. With this convenient selecting the appropriate job type (engraving or cutting) and material category, minimizing wasted time and materials.
