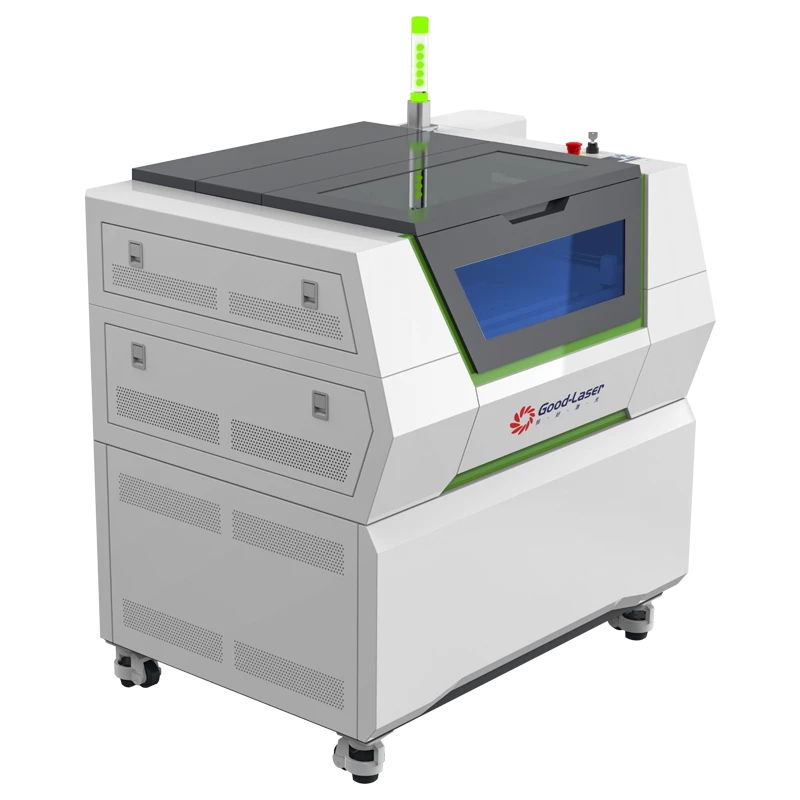

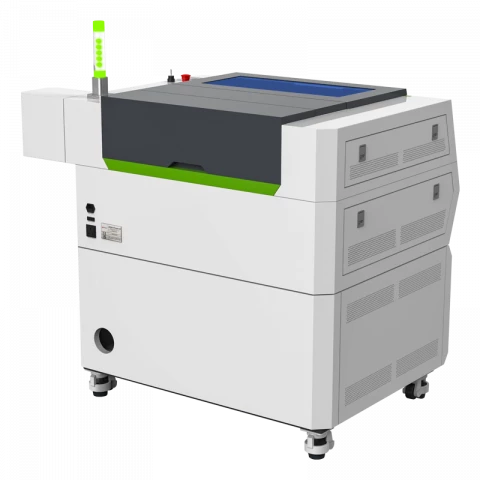

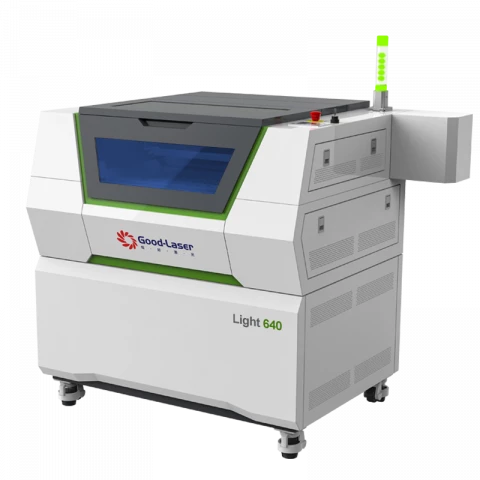

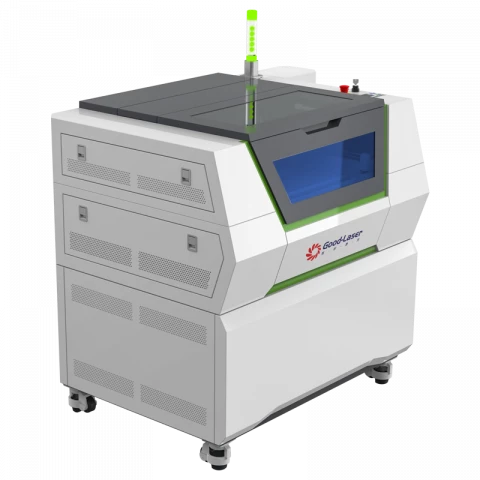

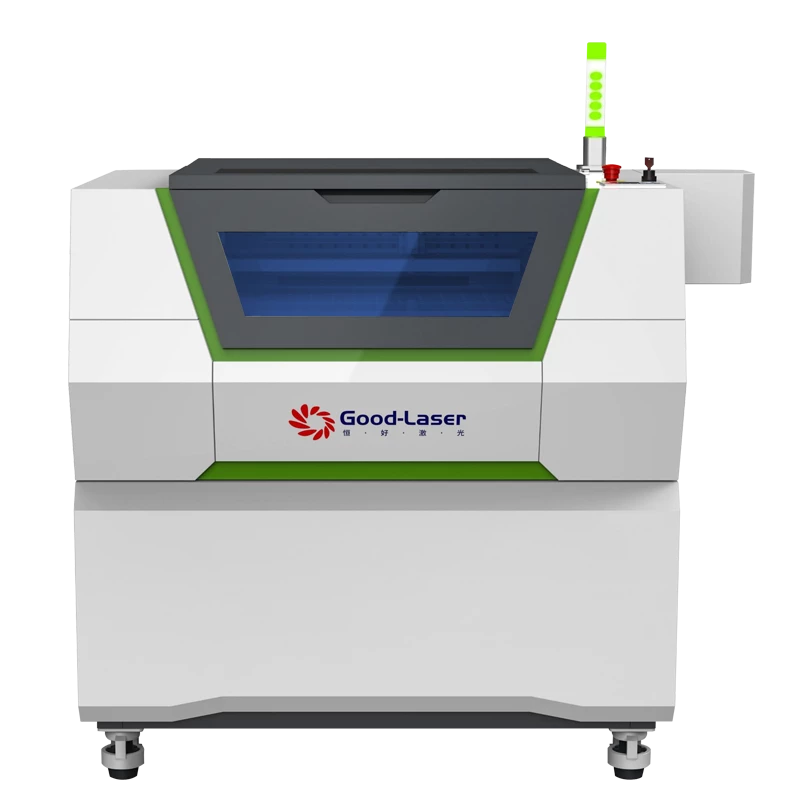

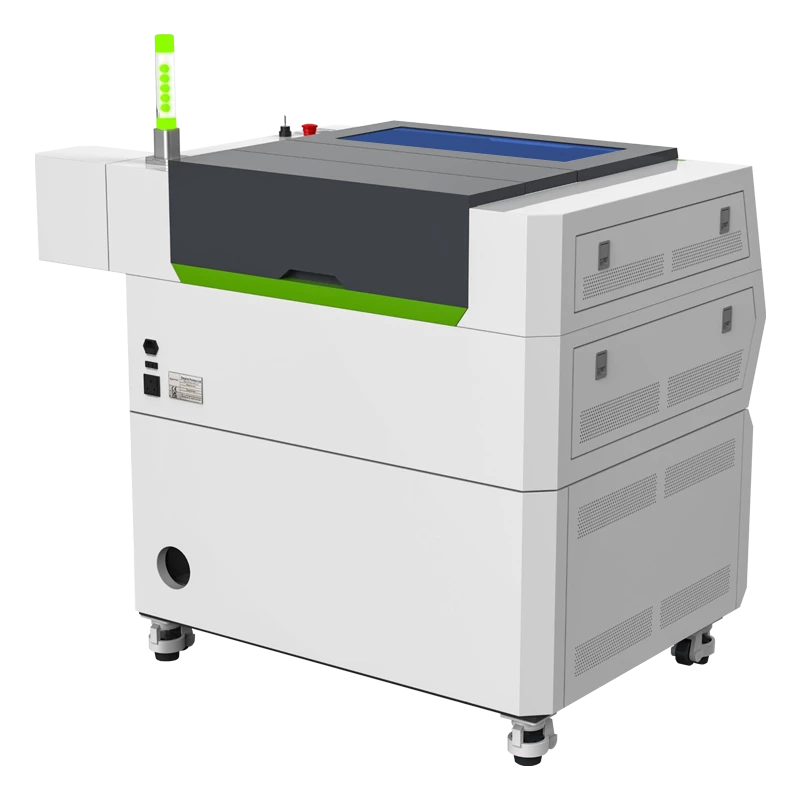

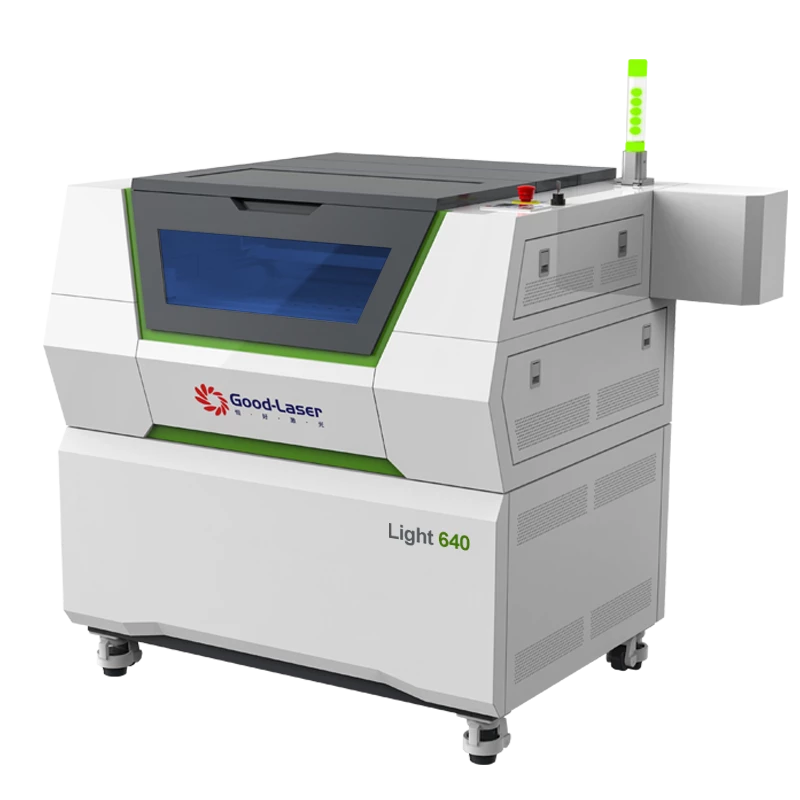

Tower Laser Cutting Machine | 60w to 150W, Built-In Water Chiller, Unlimitted Work Area

Dongguan Henghao Laser Technology Co., Ltd

Specifications

Format: Tower
Laser Source: CO2
Laser Output Power: 60 W
Laser Wavelength: 10.6 um (IR)
Beam Delivery: 3 axis
Work Area X: 600 mm
Work Area Y: 400 mm
Work Area Z: 180 mm
Application: 3D Cutting
Sector: Engineering
Materials: Steel/Iron
Voltage Requirement: 220V - 50Hz
Included Options: Rotary Attachment
Safety Enclosure: Yes
Laser Safety Class: Class 4
Max Cutting Speed: 1000 mm/s
Motion Control System: High-speed servo motor
Exhaust System: exhaust diameter 145mm
Maximum Engraving Speed: 1000mm/s
Maximum Cutting Thickness: 20mm (acrylic)
Platform Lifting: 155mm
Processing Platform: honeycomb platform, aluminum knife platform
Air Assist System: dual air assist system
Cooling System: water cooling
Rated Power: 1200W
Document icon Download Data Sheet Download icon

Features

Faster and Quieter


Shock-proof and high safety thanks to the advanced high-performance hybrid servo motor. It not only supports a working speed up to 1000mm/s but also runs more stably and with lower noise.


High-quality laser tube


We have strict standards, testing, and inspection procedures for the laser tubes. The thickness of tubes is thicker than ordinary laser tubes, which is more secure and durable, and provides higher-quality carbon dioxide energy for delicate laser cutting and engraving work.


Efficient autofocus + red dot positioning


The autofocus function can quickly and accurately focus and locate before cutting and engraving. Coupled with the beam positioned by the red dot to view the working position in real-time, it saves a lot of time and brings better cutting and engraving results.


Considerate and advanced safety



  1. Emergency stops

  2. Alarm lamps

  3. Water protection switches

  4. Earth wiring

  5. The built-in heat detector alarm automatically switches on in the event of abnormal machine activity

  6. 5x open flap protection

  7. The tempered glass material is durable protection window

Applications


  • Compatible materials

  • Wood

  • Acrylic

  • Delrin

  • Cloth

  • Leather

  • Mat Board

  • Melamine

  • Pressboard

  • Paper

  • Mylar

  • Twill

  • Cork

  • Glass

  • Coated Metals

  • Ceramics

  • Marble

  • Rubber

  • Wood Veneer

  • PET

  • Fiberglass

  • Plastic

  • CorCoriank
