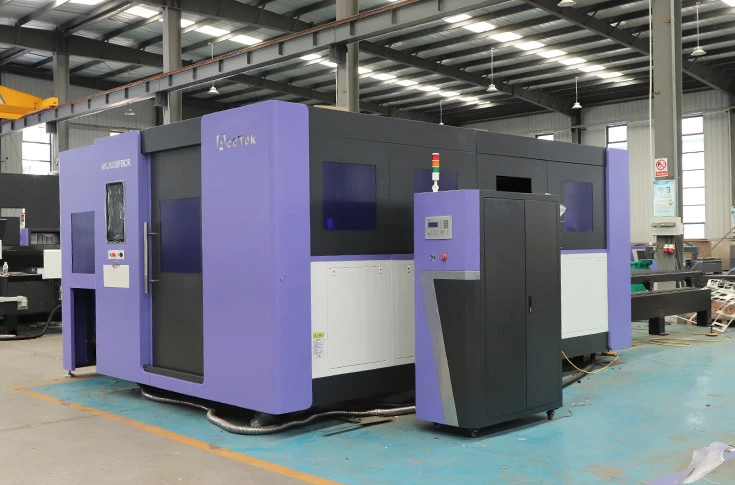

AKJ-FBC Laser Cutting Machine

Jinan Acctek Machinery Co., LTD

Specifications

Format: Tower
Laser Source: Fiber
Laser Output Power: 1500 W
Laser Wavelength: 1064 nm (IR), 1070 nm (IR)
Beam Delivery: Flatbed, Large Flatbed Platform
Work Area X: 1300 mm
Work Area Y: 6000 mm
Application: Tube Cutting, Sheet Cutting, Stent Cutting, Die Cutting
Sector: Home Improvement, Hobby, Industrial, Engineering, Professional, Job Shop, Medical Equipment, Architecture
Materials: Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic
Voltage Requirement: Other / Not Specified
Included Options: CNC, Air Assist, Fume Extraction, Rotary Attachment, Laser Chiller
Safety Enclosure: Not Specified
Laser Safety Class: Other / Not Specified
Max Cutting Speed: 1667 mm/s
Cutting Range: 1300*2500mm
Laser Type: Fiber Laser
Laser Power: 1500-40000W
Laser Generator: Raycus, Max, BWT, JPT, IPG
Transmission System: Gantry Double Drive Structure
Max Speed: 100m/min
Max Acceleration: 1.0G
Positioning Accuracy: ±0.01mm
Repeat Accuracy: ±0.03mm
Document icon Download Data Sheet Download icon

Features

The fuselage adopts a gantry structure, and the beam is integrally cast, which has higher rigidity, stability, and shock resistance.
The high-performance laser generator and Au3tech cutting system with stable operation ensure the best cutting effect.
The machine has a complete cooling system, lubrication system, and dust removal system to ensure stable, efficient, and long-lasting operation of the machine.
The laser head is automatically adjusted to keep the focal length constant so that the cutting quality is more stable.
Professional CAD/CAM automatic programming software and automatic nesting software can help save raw materials to the greatest extent.

Applications

AKJ-FBC laser cutting machine is a high-end laser cutting machine model, widely used in electronics, electrical, mechanical hardware, new energy, packaging, solar energy, LED, automobile, and other industries. The fiber laser cutting machine is used to cut various metal materials of different materials, such as stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, rare metals, etc.
