Weld Monitors for Precision Welding Control

Did You Know?

Weld Monitors are vision instruments that are used to measure and analyze welding processes. Weld monitors offer several benefits, including improving the quality and consistency of welds, reducing the risk of weld defects, reducing scrap rates, increasing productivity, and providing real-time feedback for process optimization. The type of weld monitor you choose will depend on factors such as the type of welding process you will be monitoring, the welding parameters you need to measure, the accuracy and resolution of the device, the data storage and analysis capabilities, and the user interface and ease of use. Weld monitors can be used with a variety of welding processes, including arc welding (such as MIG, TIG, and stick welding), resistance welding, and laser welding. By providing real-time data on welding parameters, weld monitors can help operators identify and correct issues such as improper welding technique, incorrect electrode positioning, or insufficient weld penetration. This can lead to higher-quality and more consistent welds. Additionally, weld monitors can help reduce costs by optimizing the welding process to reduce the risk of defects and increase productivity. The cost of weld monitors will vary depending on the specific device and its features. Basic digital meters can cost under $100, while advanced data acquisition systems can cost several thousand dollars.
Read more in our Blog

Related Resources

Frequently Asked Questions

Weld monitors are devices that are used to measure and analyze welding processes. They provide real-time data on various welding parameters such as voltage, current, and weld time, which can help operators optimize the welding process and ensure quality welds.

What Are Weld Monitors?

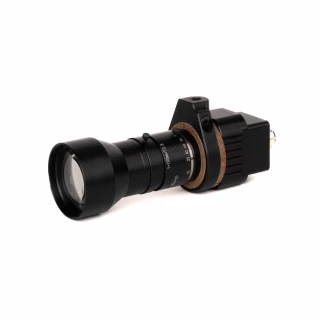

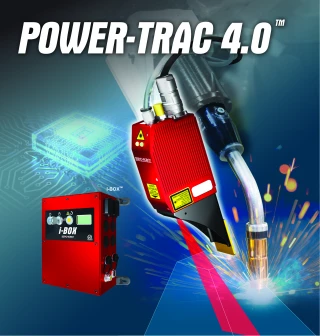

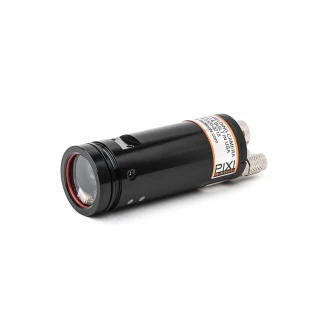

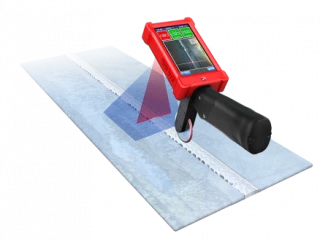

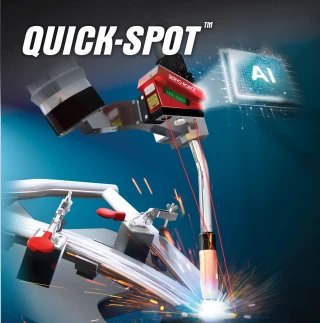

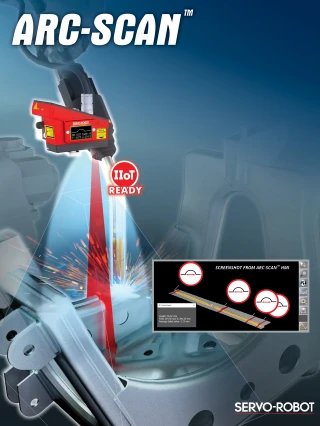

Weld Monitors are optical and electronic systems that observe the welding process in real time to evaluate stability, detect defects, and log process data. In the FindLight catalog, these Weld Monitors focus on light detection around the weld pool, plasma plume, keyhole, or back-reflected laser radiation. They are used with laser, resistance, and arc welding setups for both R&D and production lines.

Typical Specifications of Weld Monitors

Depending on design, Weld Monitors may integrate photodiodes, spectrometers, cameras, or pyrometers. Key specifications include:

  • Detection type: optical emission, back-reflection, infrared radiation, or multi-sensor Weld Monitors combining several signals.
  • Spectral range: UV to NIR or MIR (e.g., 200–900 nm, 400–1700 nm, or 1–5 µm) for capturing plasma emission or thermal signatures.
  • Sampling rate / bandwidth: from a few kHz up to MHz for tracking fast changes in laser welds and short pulses.
  • Dynamic range and SNR: critical for distinguishing subtle signal variations that indicate porosity, blowouts, lack of fusion, or gap changes.
  • Interface and I/O: analog voltage outputs, Ethernet, fieldbus, digital triggers, and alarm outputs for integration into welding cells or PLCs.

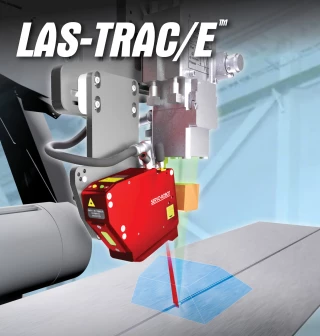

  • Form factor: in-line coaxial Weld Monitors mounted in the beam path, or off-axis sensors viewing the weld zone from the side.

Use Cases for Weld Monitors

Weld Monitors are deployed in automotive body-in-white lines, battery tab welding, medical device manufacturing, aerospace components, and precision instrumentation. Engineers use these systems for process development, closed-loop power control, and in-line quality assurance, reducing destructive testing by correlating monitored signals with weld geometry and defect rates.

Buyer Guidance on FindLight

When selecting Weld Monitors, compare spectral range, bandwidth, sensitivity, and mounting geometry against your welding source (CW or pulsed laser, arc, or resistance) and material stack. Verify compatibility with existing optics, scan heads, and motion systems, as well as data interfaces needed for your QC or MES infrastructure.

On FindLight you can browse multiple Weld Monitors, review detailed datasheets, and request quotes or technical clarifications directly from manufacturers and distributors. Communication is direct and no registration is required, enabling fast sourcing and evaluation for both new and retrofit welding cells.
