Description
QUICK-SCAN is a compact and cost efficient laser-vision system designed for seam finding, joint fit up monitoring, 3D program shifting, welding inspection, and teaching. It includes high-speed 3D robotic mapping capabilities to generate precise points cloud.

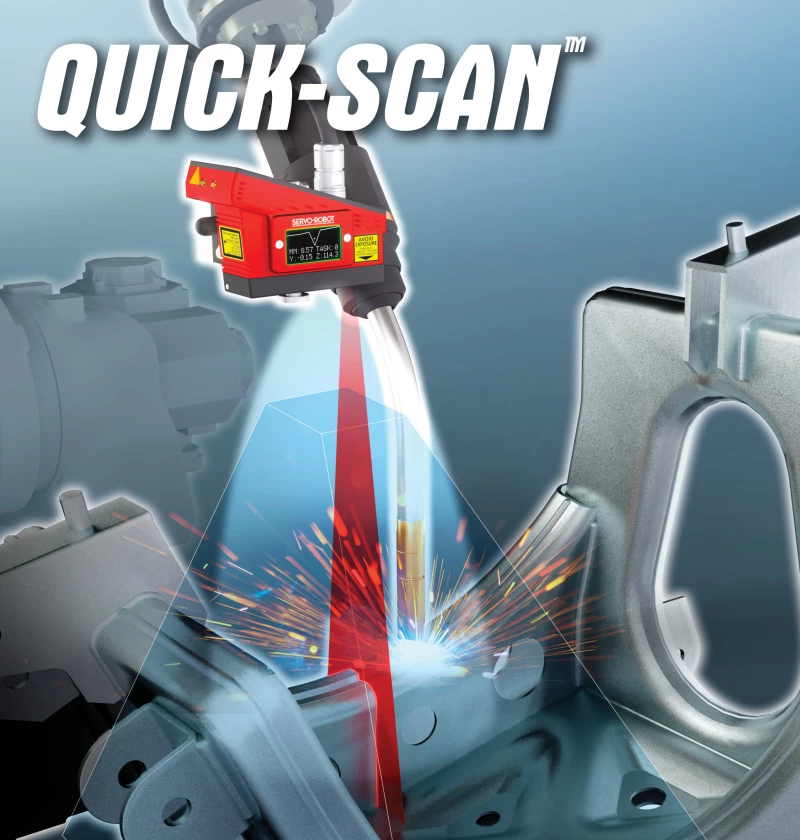

QUICK-SCAN (Arc Seam Finding)
Specifications
Working Distance: | 231 – 616 mm |
---|---|
Max Temperature: | 50 degC |
Features
- A large field of view allows to scan, map, measure, and inspect large weld joints and features
- A long stand-off and small size of the camera head is crucial for applications with space and access restrictions
- Compact with no external control unit needed which simplifies the installation by reducing the amount of components
- Integrated Wi-Fi for easier access with mobile HMI
- OLED graphical display for optimal user process feedback
- Extensive joint and feature library allows almost any joint or feature to be located and measured
- Integrated digital video camera (image and video streaming for process monitoring)
- LED illumination for better visibility of parts and joints
- Compatible
Applications
Used for applications that require pre and post process measurements and inspection while keeping the overall camera footprint as small as possible.
Frequently Asked Questions
What is QUICK-SCAN used for?
QUICK-SCAN is used for seam finding, joint fit up monitoring, 3D program shifting, welding inspection, and teaching.
What are the features of QUICK-SCAN?
The features of QUICK-SCAN include a large field of view, long stand-off and small size of the camera head, compact design with no external control unit, integrated Wi-Fi, OLED graphical display, extensive joint and feature library, integrated digital video camera, and LED illumination.
What are the benefits of the large field of view?
The large field of view allows for scanning, mapping, measuring, and inspecting large weld joints and features.
How does the compact design simplify installation?
The compact design eliminates the need for an external control unit, reducing the amount of components and simplifying the installation process.
What applications is QUICK-SCAN compatible with?
QUICK-SCAN is compatible with applications that require pre and post process measurements and inspection while keeping the overall camera footprint as small as possible.
