MDL/E (Laser Seam Tracking)
Description

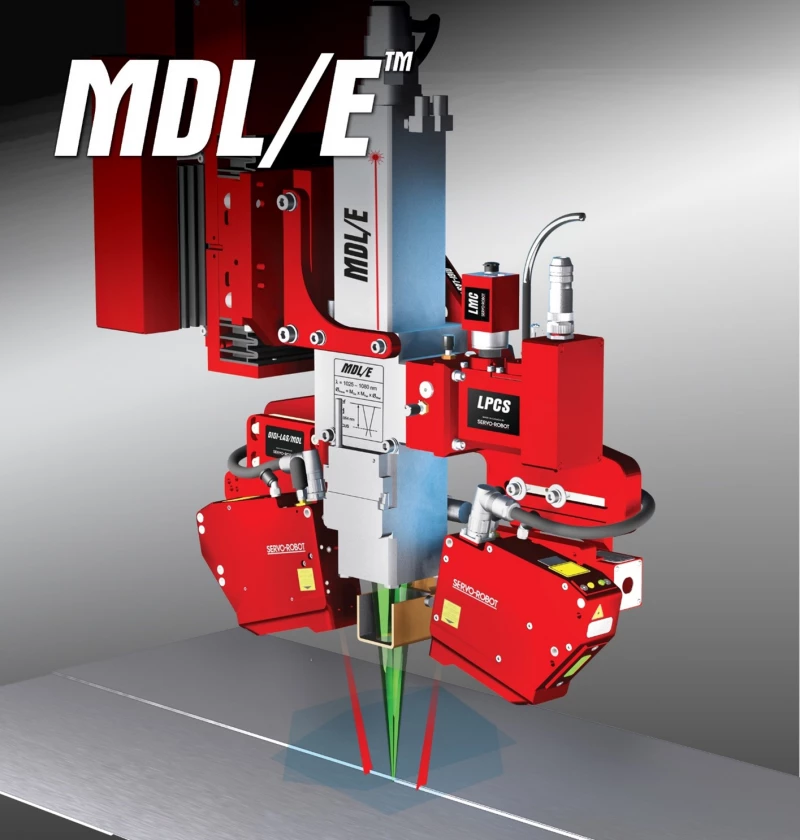

MDL/E is an intelligent modular laser welding system that integrates two high-precision 3D laser-cameras and a high quality industrially proven laser beam delivery head (up to 30kW) into one compact rugged package to perform real-time seam tracking, weld inspection and process control. The MDL/E system precisely welds linear or curved TWB on CNC machines or articulated robots thanks to the patented software developed by SERVO-ROBOT. It performs seam tracking of the joint and inspection of the weld bead simultaneously.
MDL/E (Laser Seam Tracking)
Specifications |
|
|---|---|
| Working Distance: | 99-114.5mm |
| Max Temperature: | 50 degC |
Features
Precise part to part variation measurement and adjustment of tool position in real-time.
Patented technology to compensate for repeatable errors of robots and NC machines.
Tracking of complex 2D and 3D trajectories with curve radius down to 35 mm.
Drastically minimize the set up time by reducing the number of points to teach.
Closed loop servo-controlled high speed actuators to precisely correct the 3D trajectory according to the joint position.
Adaptive process control in real time based on joint geometry (optional).
High-precision cold wire feeding system to weld joints with wider gap (optional).
Applications
TWB laser welding of automobile body and chassis components on various materials, laser brazing of car body and trunk lid, laser welding of aerospace components and general industry sheet metal parts.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The MDL/E laser welding system is used for real-time seam tracking, weld inspection, and process control in laser welding applications.
The main features of the MDL/E system include precise part to part variation measurement, patented technology to compensate for repeatable errors, tracking of complex 2D and 3D trajectories, minimized setup time, closed loop servo-controlled actuators, and optional adaptive process control and high-precision cold wire feeding system.
The MDL/E system can be used to weld automobile body and chassis components on various materials, perform laser brazing of car body and trunk lid, laser welding of aerospace components, and general industry sheet metal parts.
The MDL/E system utilizes two high-precision 3D laser cameras and a high-quality laser beam delivery head to perform real-time seam tracking and inspection. It also has patented software developed by SERVO-ROBOT to compensate for repeatable errors and precise correction of the 3D trajectory.
Yes, the MDL/E system is capable of tracking complex 2D and 3D trajectories, including curved welds with a curve radius down to 35 mm.
