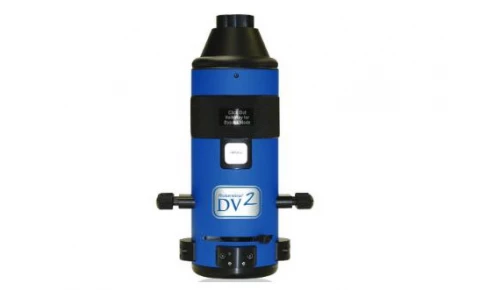

Photometrics DV2 - Dual-Channel Simultaneous-Imaging System
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
Photometrics -
On FindLight:
since 2015
Description
The Photometrics® DV2™ is a cutting-edge dual-channel simultaneous-imaging system designed to enhance imaging capabilities in life sciences. Utilizing a single-beamsplitter design, the DV2™ efficiently divides the emission light from a microscope into two independent channels. This innovative approach allows each channel to be projected onto half of the CCD simultaneously, making it an essential tool for advanced imaging techniques such as FRET and other emission ratiometric applications.
This state-of-the-art system is engineered to seamlessly integrate with most microscopes, offering improved adjustment control for easier image alignment. The redesigned aperture adjustments ensure that apertures remain parallel, enhancing the precision of your imaging results. With its ability to separate emissions by wavelength, polarization, or amplitude, the DV2™ provides unparalleled versatility in imaging applications.
The Photometrics® DV2™ also features a bypass mode for hassle-free full-field imaging, and an exchangeable filter cube that supports multiple applications with minimal realignment. This product is compatible with a wide range of Photometrics® and QImaging® cameras, making it a versatile choice for researchers looking to expand their imaging capabilities. The integrated, adjustable CCD mask minimizes ghosting, ensuring high-quality imaging for a variety of scientific investigations.
With dimensions of 6.5” at its widest point and a height of 8.5”, the DV2™ is compact yet robust, weighing in at 4.8 lbs. It accommodates standard 25-mm-diameter emission and polarization filters, making it a practical addition to any laboratory setup. This system is designed to operate efficiently within a wavelength sensitivity range of 400 to 750 nm and can function optimally at temperatures ranging from 10 to 37˚C. The Photometrics® DV2™ is a reliable and advanced imaging solution, backed by patents in the USA, Australia, and Canada, with other foreign patents pending.

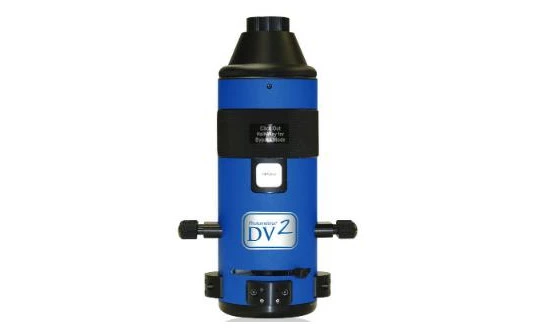

Photometrics DV2 - Dual-Channel Simultaneous-Imaging System
Specifications |
|
|---|---|
| Number Of Channels: | 2 |
| Sensor Type: | CCD |
| Wavelength Range: | 400 – 750 nm |
| Efficiency Per Image: | 88 to 92% |
| Operation Temperature: | 10 to 37˚C |
| Detector Attachment: | C-mount (male) |
| Front Attachment: | C-mount (female) |
| External Mounting Option: | ¼-20 tapped hole on back of unit |
| Dimensions: | 6.5” at widest point x 8.5” height |
| Weight: | 4.8 lbs |
| Filters: | Emission/barrier, neutral density, polarization; 1” (25.4-mm) max diameter; 0.39” (9.9-mm) max thickness |
Features
- Simultaneous Dual-Channel Imaging: The Photometrics® DV2™ splits emission light into two channels for simultaneous imaging, ideal for FRET and ratiometric applications.
- Flexible Emission Separation: Channels can be separated by wavelength, polarization, or amplitude, providing versatile imaging options.
- Easy Microscope Integration: The system easily mounts to most microscopes, ensuring a seamless setup.
- Enhanced Image Alignment: Improved adjustment control for easier image alignment and redesigned aperture adjustments for parallel apertures.
- Standard Filter Compatibility: Utilizes standard 25-mm-diameter emission and polarization filters for convenient use.
- Bypass Mode: Allows full-field imaging without hassle, enhancing flexibility in imaging applications.
- Exchangeable Filter Cube: Supports multiple applications with minimal realignment, increasing efficiency and adaptability.
- Integrated CCD Mask: Adjustable mask minimizes ghosting for clearer images.
- Camera Compatibility: Compatible with many Photometrics® and QImaging® cameras. Contact your local representative for specific compatibility.
- Wide Range of Applications: Suitable for FRET imaging, polarized FRET analysis, calcium imaging, fluorescence polarization/anisotropy imaging, and more.
- Broad Wavelength Sensitivity: Sensitive to wavelengths from 400 to 750 nm, ensuring broad application use.
- High Efficiency: Achieves 88 to 92% efficiency per image, optimizing performance.
- Temperature Range: Operates effectively between 10 to 37˚C, suitable for various laboratory conditions.
- Compact and Lightweight: Dimensions of 6.5” x 8.5” and a weight of 4.8 lbs make it easy to handle and integrate into setups.
- Patent Protected: Protected by multiple patents in the USA, Australia, and Canada, ensuring innovative technology.
Applications
- FRET Imaging: For monitoring molecular interactions using fluorescence resonance energy transfer.
- Polarized FRET Analysis: Enables detection of molecular orientation changes through polarization imaging.
- Calcium and pH Imaging: Suitable for calcium imaging with fluo-3/Fura Red™ and pH imaging with SNARF dyes.
- Single-Molecule Fluorescence Imaging: For high-sensitivity detection of individual fluorescent molecules.
- Multiwavelength TIRF Imaging: Supports advanced surface imaging using total internal reflection fluorescence.
- Simultaneous Fluorescence/DIC Imaging: Combines fluorescence and differential interference contrast imaging in real time.
- Drug Discovery Assays: Facilitates Cy3/Cy5 imaging for high-throughput screening.
- Multichannel Confocal Microscopy: Enables dual-channel imaging with spinning-disk confocal systems.
Frequently Asked Questions
The Photometrics DV2 features simultaneous acquisition of two emission channels, the ability to separate emission by wavelength, polarization, or amplitude, easy mounting to most microscopes, improved adjustment control for easier image alignment, redesigned aperture adjustments to ensure parallel apertures, and more.
The Photometrics DV2 is suitable for a variety of applications, including fluorescence resonance energy transfer (FRET) imaging, polarized FRET analysis, calcium imaging, fluorescence polarization/anisotropy imaging, drug discovery, single-molecule fluorescence (SMF) imaging, and more.
The Photometrics DV2 is a dual-channel simultaneous-imaging system that splits the emission light from a microscope into two independent channels.
The wavelength sensitivity of the Photometrics DV2 is 400 to 750 nm.
The weight of the Photometrics DV2 is 4.8 lbs.
