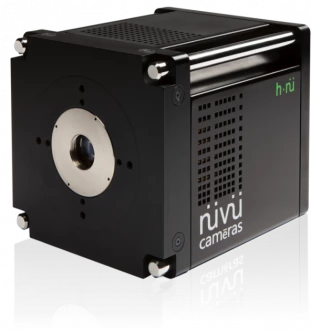

HNu 128 EMCCD

Name: HNu 128 EMCCD
Brand: Nuvu Cameras
Availability: InStock

Description

Built for high frame rates: Frame rates exceeding 1460 fps in full frame! Made for high-speed applications such as Adaptive Optics (AO) and neural and cardiac imaging, the HNü 128 camera provides exactly what is to be expected from a high-end E⁣M⁣C⁣C⁣D⁣ camera: virtually no noise. This ultimate sensitivity enables highly efficient low-flux imaging, hence faster acquisitions and superior image quality.

Specifications

Sensor Type:	EMCCD
# Pixels (Width):	128
# Pixels (Height):	128
Pixel Size (Square):	24 um
Peak Quantum Efficiency:	95 %
Full Frame Rate:	1460 fps
Bit Depth:	16 bit
Operation Rate:	up to 1460 fps full frame
Background Noise:	< 0.004 e-/pixel/frame
EM Gain:	up to 5000
Air-cooling:	down to -60°C

Download Data Sheet

Features

Patented electronics for unmatched low noise& photon counting performances

Faster acquisition speeds with a variety of options (ROI, multiple ROI, crop mode, Fast Kinetics mode, TDI)

Variety of sensor options for high QE from 250-1100 nm

Window and Linux compatibility

Applications

Space and Defense

Adaptive optics

Space surveillance (SSA & SDA)

Exoplanet direct imaging

Satellite & ballon missions

Physics

Quantum simulation & computing

Quantum imaging

Life Science

FRET and BRET imaging

Single molecule imaging / Super-resolution microscopy

Raman spectroscopy

Small animal imaging

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Canada

Sold by:

Nuvu Cameras

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What software systems is the HNü 128 EMCCD camera compatible with?

The HNü 128 EMCCD camera can be easily integrated into a wide variety of software systems, including NüPixel control, acquisition and analysis software, software development kit (SDK) for customizable programming, and various drivers available for commercial software. It is also compatible with Windows and Linux.

What applications is the HNü 128 EMCCD camera suitable for?

The HNü 128 EMCCD camera is suitable for high-speed applications such as Adaptive Optics (AO) and neural and cardiac imaging, as well as space and defense, quantum simulation and computing, life science, and more.

Does the HNü 128 EMCCD camera have noise-filtering algorithms?

No, the HNü 128 EMCCD camera does not have noise-filtering algorithms. The amount of noise generated is simply lower, eliminating the risk of removing genuine photoelectrons.

What is the sensitivity of the HNü 128 EMCCD camera?

The HNü 128 EMCCD camera has ultimate sensitivity, enabling highly efficient low-flux imaging and faster acquisitions.

What is the frame rate of the HNü 128 EMCCD camera?

The HNü 128 EMCCD camera has a frame rate exceeding 1460 fps in full frame.
