Description
Built for resolution: Made for applications requiring a large field of view along with photon counting capabilities in the fields of Space & Defense, Life Science, Physics, Industry and more. The HNü 1024 camera provides exactly what is to be expected from a high-end EMCCD camera: virtually no noise. This ultimate sensitivity enables highly efficient low-flux imaging, hence faster acquisitions and superior image quality.

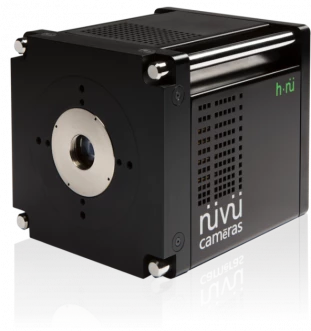

HNu 1024 EMCCD 1MP Camera
Specifications
Sensor Type: | EMCCD |
---|---|
# Pixels (Width): | 1024 |
# Pixels (Height): | 1024 |
Pixel Size (Square): | 13 um |
Peak Quantum Efficiency: | 95 % |
Full Frame Rate: | 25 fps |
Bit Depth: | 16 bit |
Operation Rate: | up to 25 fps full frame |
Background Noise: | < 0.0015 e–/pixel/frame |
EM Gain: | up to 5000 |
Air-cooling: | down to -80°C |
Features
HNu 1024 EMCCD 1MP Camera features the following characteristics:
- Patented electronics for unmatched low noise & photon counting performances
- Faster acquisition speeds with a variety of options (ROI, multiple ROI, crop mode, Fast Kinetics mode, TDI)
- Variety of sensor options for high QE from 250-1100 nm
- Windows and Linux compatibility
Applications
Space & Defense:
- Adaptive optics
- Space surveillance (SSA & SDA)
- Exoplanet direct imaging
- Satellite & balloon missions
Physics:
- Quantum simulation & computing
- Quantum imaging
Life Science:
- FRET and BRET imaging
- Single molecule imaging / Super-resolution microscopy
- Raman spectroscopy
- Small animal imaging
Frequently Asked Questions
What software systems is the HNu 1024 EMCCD 1MP Camera compatible with?
The HNu 1024 EMCCD 1MP Camera can be integrated into a wide variety of software systems, including NüPixel control, acquisition and analysis software, a software development kit (SDK) for customizable programming, various drivers available for commercial software, and worldwide professional customer support consultation services.
What are the features of the HNu 1024 EMCCD 1MP Camera?
The HNu 1024 EMCCD 1MP Camera features patented electronics for unmatched low noise and photon counting performances, faster acquisition speeds with a variety of options, a variety of sensor options for high QE from 250-1100 nm, and Windows and Linux compatibility.
What is the advantage of using multiple ROI (mROI)?
Using multiple ROI (mROI) offers higher frame rates at the cost of a reduced field of view. A ROI is subject to the same limitations as binning, namely that the speed gain occurs with smaller vertical regions but is restricted by the horizontal pixel rate.
What is the HNu 1024 EMCCD 1MP Camera used for?
The HNu 1024 EMCCD 1MP Camera is used for applications requiring a large field of view along with photon counting capabilities in the fields of Space & Defense, Life Science, Physics, Industry and more.
What is the ultimate sensitivity of the HNu 1024 EMCCD 1MP Camera?
The ultimate sensitivity of the HNu 1024 EMCCD 1MP Camera enables highly efficient low-flux imaging, hence faster acquisitions, with an operation rate up to 25 fps in full frame at 30 MHz readout rate.
