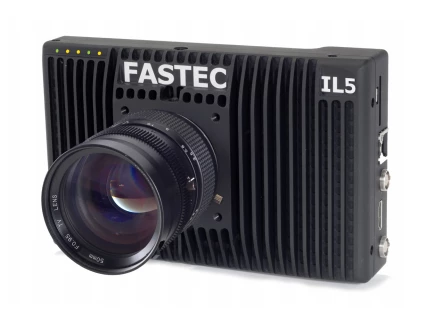

FASTEC IL5 High-Speed Camera
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description
The Fastec IL5 high-speed camera is a pinnacle of precision and performance, designed to meet the demanding needs of both industrial and research environments. Its compact design allows it to seamlessly integrate into various setups, whether mounted on a microscope, tripod, or directly onto production machinery. This versatility makes the IL5 an essential tool for capturing high-speed events with unparalleled clarity and detail.
At the heart of the IL5 is an advanced 2560 x 2080 12-bit CMOS sensor, which delivers exceptional image quality. The sensor's 5µm low-noise pixels ensure superior depth of field and high system magnification, making it ideal for applications requiring detailed analysis. With full HD frame rates exceeding 600 frames per second and the capability to achieve over 20,000 frames per second at reduced resolutions, the IL5 is engineered to capture even the most fleeting moments with precision.
The IL5 is equipped with a built-in web interface, allowing for effortless control via a browser on a PC, tablet, or phone. This feature, combined with advanced PC software compatible with Windows, Mac, and Linux, ensures that users have complete control over their imaging processes. Whether in a manufacturing plant or a research facility, the IL5's robust design and cutting-edge technology make it a reliable choice for professionals worldwide.
FASTEC IL5 High-Speed Camera
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| # Pixels (Width): | 2560 |
| # Pixels (Height): | 2080 |
| Full Frame Rate: | 253 fps |
| Bit Depth: | 12 bit |
Features
- Compact Design: Easily fits into machine and laboratory setups, including microscopes.
- Advanced CMOS Sensor: 2560 x 2080 12-bit sensor for high-quality imaging.
- Superior Depth of Field: 5µm low-noise pixel ensures high system magnification.
- High Frame Rates: Full HD frame rates above 600fps and over 20,000fps at reduced resolutions.
- Built-in Web Interface: Control the camera via browser on PC, tablet, or phone.
- Cross-Platform Software: Advanced PC software available for Windows, Mac, and Linux.
- Internal SSD Options: Up to 2TB for extensive storage capacity.
- Streaming Modes: Allows for long record times without interruption.
- Advanced Synchronization: 6-headed I/O cable for enhanced synchronization and digital input.
- WiFi Connectivity: Control the camera wirelessly via tablet, PC, or phone.
Applications
- Manufacturing Process Analysis: Capture fast-moving machinery operations for optimization.
- Scientific Research: Supports microscopy and high-magnification studies in physics, biology, and materials science.
- Quality Control: Detect defects and improve inspection processes with high-speed clarity.
- Ballistics & Impact Testing: Record high-velocity events with precision frame-by-frame detail.
- R&D and Engineering: Essential for studying motion dynamics, fluid behavior, and rapid mechanical systems.
Frequently Asked Questions
The applications of the FASTEC IL5 high-speed camera include autonomous systems available, setup and control via multiple interfaces, exceptional resolution and frame rate options, advanced synchronization and control of multi-camera systems, unique imaging capabilities for greater system magnification and depth of field, long record times - onboard mass storage up to 2TB, and flexible workflows for unique applications.
The FASTEC IL5 high-speed camera features a 5-megapixel 12-bit sensor, pixel rates over 1300Mp/sec, 4 models from 800 x 600 to 2560 x 2048 resolutions, 6 I/O channels for data and/or control, excellent depth of field and high system magnification, binning and sub-sampling, and a wide ISO range.
The options available for the FASTEC IL5 high-speed camera include internal SSD up to 2TB, streaming modes for long record times, 6-headed I/O cable for advanced synchronization and digital input, and WiFi to control the camera via tablet, PC, or phone.
The specifications of the FASTEC IL5 high-speed camera include QSXGA IL5-Q: 2560 x 2048 (91 fps, 34.9 min), HD 1080p IL5-H: 1920 x 1080 (231 fps, 34.7 min), SXGA IL5-S: 1280 x 1024 (366 fps, 34.7 min), and SVGA IL5-L: 800 x 600 (1677 fps, 10.4 sec).
The FASTEC IL5 high-speed camera is used for lab research and industrial work/manufacturing equipment troubleshooting.
