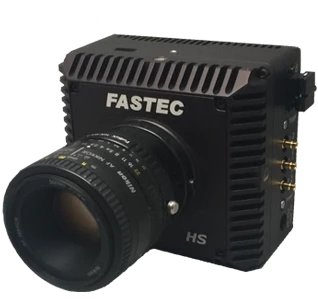

FASTEC HS5 High-Speed Camera
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description
Introducing the FASTEC HS5, a groundbreaking high-speed camera system designed to redefine your imaging experience. Built on an advanced architecture, the HS5 offers an enhanced workflow that is faster than vision itself. This state-of-the-art camera is equipped with an optical interface, enabling high-bandwidth transport through industry-standard fiber cabling, ensuring seamless and efficient data transfer.
The FASTEC HS5 is powered by an extensible Linux Camera Controller, offering compatibility with standard displays and input devices, including Bluetooth and WiFi. This flexibility allows you to run your own applications directly on the camera controller, providing a customizable and versatile imaging solution. Additionally, the camera supports high-speed, high-capacity mass storage via USB3.1 Gen2 or Thunderbolt 3 interfaces, ensuring that you never miss a moment.
At the heart of the FASTEC HS5 is a proven 12-bit CMOS sensor, now integrated into a high-performance platform that utilizes the Fastec Camera Controller for unrivaled access to captured images. With a resolution of 2560 x 2048 at 253 frames per second streaming in 12 bits, the HS5 delivers exceptional image quality and speed. This makes it an ideal choice for professionals seeking high-speed video capture, image storage, and transport, as well as a streamlined application workflow.
Constructed with anodized machined aluminum housing, the FASTEC HS5 is designed to withstand the demands of various environments, operating efficiently between +5°C to +40°C. Its compact size and lightweight design make it a portable yet powerful tool for capturing high-speed imagery. Whether you're in the field or in the studio, the FASTEC HS5 is engineered to deliver unparalleled performance and reliability.
FASTEC HS5 High-Speed Camera
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| # Pixels (Width): | 2560 |
| # Pixels (Height): | 2048 |
| Pixel Size (Square): | 5 um |
| Full Frame Rate: | 253 fps |
| Bit Depth: | 12 bit |
Features
- Advanced Architecture: Enhanced workflow with cutting-edge design.
- High-Bandwidth Transport: Camera with optical interface using industry-standard fiber cabling.
- Extensible Linux Camera Controller: Compatible with standard displays and input devices, including Bluetooth and WiFi.
- Custom Applications: Run your own applications directly on the camera controller.
- High-Speed Storage Options: Attach high-speed, high-capacity mass storage via USB3.1 Gen2 or Thunderbolt 3 interfaces.
- Proven 12-bit CMOS Sensor: New high-performance platform utilizing the Fastec Camera Controller for unrivaled access to captured images.
- High-Speed Video Capture: Capture at 2560 x 2048 resolution at 253 fps streaming in 12 bits.
- High-Speed Image Storage and Transport: Efficiently manage and transfer images with advanced technology.
- Flexible Lens Mount: Micro Four Thirds (MFT) Standard; adaptable to C, F, EF, PL, and more via adapters.
- Comprehensive Control Software: FasMotion native on Controller with network support for Windows, MacOS, and Linux.
- Robust Construction: Anodized machined aluminum housing for durability.
- Versatile External I/O Ports: 3 configurable ports for various input/output needs.
- Wide Environmental Range: Operates efficiently from +5°C to +40°C.
- Compact and Lightweight: Measures 114mm x 114mm x 76mm and weighs 1 Kg (2.2 lbs).
Applications
- Scientific Research: Capture high-speed processes in physics, biology, and materials science.
- Industrial Manufacturing: Analyze fast-moving machinery for quality control and optimization.
- Ballistics & Impact Testing: Record high-velocity events with frame-by-frame precision.
- Aerospace & Defense: Support advanced testing, tracking, and motion analysis.
- Engineering & R&D: Study rapid dynamics, vibrations, and fluid behaviors.
Frequently Asked Questions
The applications of the HS5 high-speed camera include autonomous systems, exceptional resolution and frame rate options, advanced synchronization and control of multi-camera systems, unique imaging capabilities for greater system magnification and depth of field, long record times, and flexible workflows for unique applications.
The HS5 high-speed camera features advanced CMOS image sensors, configurable I/O ports, excellent depth of field and high system magnification, binning and sub-sampling on some models, and a wide ISO range.
The specifications of the HS5 high-speed camera include a 12-bit 2560 x 2048 CMOS sensor, 12 channel Type B fiber optic patch cable with MPO connectors, built-in mechanical shutter for black-level calibration, 8GB, 16GB, or 32GB image memory, up to 2TB NVMe SSD mass storage, and external storage options via Thunderbolt3 or USB-3.1 SSD and MicroSDXC slot with UHS-1 support.
The HS Series high-speed camera is designed for serious researchers.
The record rate and time of the HS5 high-speed camera depend on the resolution and bit depth. For example, at 2560 x 2048 resolution and 12 bits, the max frame rate is 253 fps, the record time to 32GB memory is 25 seconds, and the record time streaming to 1TB SSD is 12.5 minutes.
