Description
The e-CAM30_CUNANO is a cutting-edge camera board meticulously designed by e-con Systems, a renowned leader in embedded product design services with a specialization in advanced camera solutions. This innovative camera board is specifically tailored for integration with the NVIDIA® Jetson Nano™ and Xavier NX™ development kits, offering seamless interfacing through the J13 connector for the Jetson Nano™ and the J1/J9 connector for the Jetson Xavier NX™. This compatibility ensures that developers can effortlessly incorporate high-quality imaging capabilities into their AI and machine learning projects.
At the heart of the e-CAM30_CUNANO is the 3.4MP customer lens camera module, which is built around the 1/3” AR0330 CMOS image sensor from ON Semiconductor®. This sensor is renowned for its exceptional image quality and performance, making it an ideal choice for applications requiring precise and clear visuals. The camera supports the uncompressed UYVY format, ensuring that users can capture images with high fidelity and detail. Additionally, the camera is equipped with an S-mount (M12 board lens) lens holder, which is a compact and versatile lens mount commonly used in board cameras.
e-con Systems enhances the user experience by providing sample applications that demonstrate the camera's capabilities. These applications serve as a valuable resource for developers looking to explore the full potential of the e-CAM30_CUNANO. Furthermore, the camera is compatible with any V4L2 application, offering flexibility and ease of integration into existing systems. This document provides a comprehensive overview of the camera board's features, connector pin-outs, and mechanical specifications, ensuring that users have all the necessary information to successfully implement the e-CAM30_CUNANO in their projects.

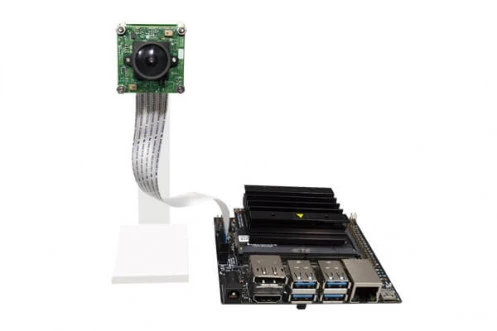

e-CAM30_CUNANO - 3.4 MP NVIDIA® Jetson Nano™ Camera
Specifications
| Sensor Type: | CMOS |
|---|---|
| # Pixels (Width): | 2304 |
| # Pixels (Height): | 1536 |
| Pixel Size (Square): | 2.2 um |
| Peak Quantum Efficiency: | 70 % |
| Full Frame Rate: | 60 fps |
| Bit Depth: | 12 bit |
Download Data Sheet
Features
- High-Resolution Imaging: The e-CAM30_CUNANO is equipped with a 3.4MP camera module based on the 1/3” AR0330 CMOS image sensor from ON Semiconductor®, delivering high-quality images.
- Compatibility: Specifically designed for NVIDIA® Jetson Nano™ and Jetson Xavier NX™ development kits, allowing seamless integration through J13 and J1/J9 connectors respectively.
- Uncompressed Video Format: Supports uncompressed UYVY format, ensuring superior image quality for various applications.
- S-Mount Lens Holder: Comes with an S-mount (M12 board lens) holder, which is ideal for small form-factor lens mounts on board cameras.
- V4L2 Application Support: Compatible with any V4L2 application, providing flexibility for developers to utilize the camera in diverse projects.
- Sample Applications: e-con Systems provides sample applications to demonstrate the camera's features, facilitating easy evaluation and integration.
- Advanced Camera Solutions: Developed by e-con Systems, a leader in embedded product design services specializing in advanced camera solutions.
Applications
- Embedded Vision Systems: The e-CAM30_CUNANO camera board is ideal for integrating into embedded vision systems, providing high-quality imaging capabilities for various applications.
- AI and Machine Learning: With compatibility for NVIDIA Jetson Nano™ and Xavier NX™, this camera module is perfect for AI and machine learning projects that require visual data input.
- Robotics: Utilize the e-CAM30_CUNANO in robotics for tasks such as object detection, navigation, and autonomous operations, benefiting from its high-resolution imaging.
- Industrial Automation: The camera board can be used in industrial settings for monitoring, inspection, and automation processes, thanks to its robust design and reliable performance.
- Security and Surveillance: Implement the e-CAM30_CUNANO in security systems for real-time surveillance, benefiting from its uncompressed UYVY format support for clear image capture.
- Healthcare and Medical Devices: Integrate the camera module into medical devices for imaging applications, such as diagnostic equipment or patient monitoring systems.
- Research and Development: The camera board is suitable for R&D projects that require high-quality imaging, offering flexibility and ease of integration with development kits.
- Prototyping and Product Development: Use the e-CAM30_CUNANO for prototyping new products that require camera functionality, leveraging its compatibility with popular development platforms.
Frequently Asked Questions
What is the resolution of the e-CAM30_CUNANO camera?
What type of image sensor does the e-CAM30_CUNANO camera use?
How can the e-CAM30_CUNANO camera be connected to the NVIDIA Jetson Nano developer Kit?
What applications is the e-CAM30_CUNANO camera suitable for?
What format does the e-CAM30_CUNANO camera support?
