Description
The Polarization Maintaining Tap Isolator combines a tap coupler and polarization sensitive isolator into a single compact package. It has high extinction ratio and very low insertion loss. The PM Tap Isolator is ideal for fiber amplifier and fiber optic system where signal monitoring is required.

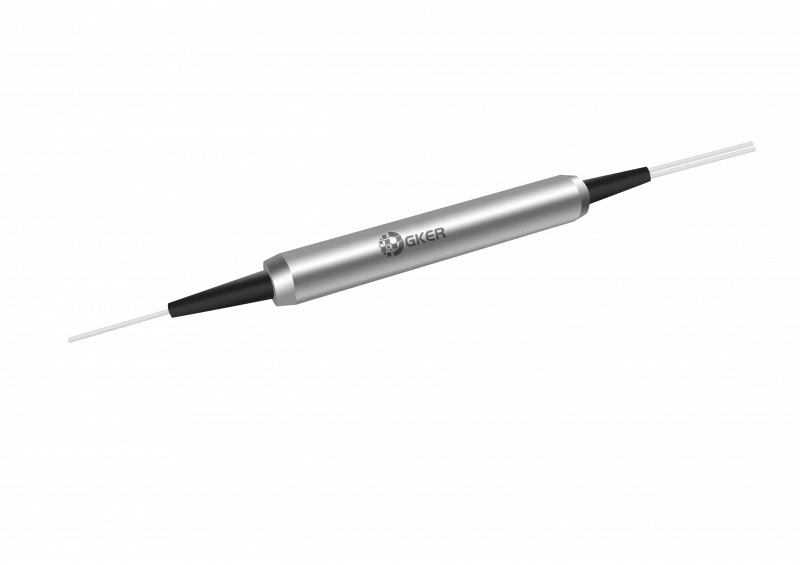

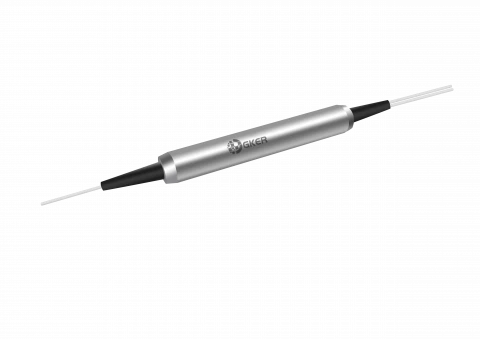

Polarization Maintaining Tap Isolator
Specifications
| Type Of The Device: | Isolator |
|---|---|
| Operating Wavelength: | 1064 nm |
| Max Power: | 0.3 W |
| Min Isolation: | 35 dB |
| Center Wavelength (λc): | 1064 nm |
| Max. Optical Power (Continuous Wave): | 300 mW |
Download Data Sheet
Features
- High Extinction Ratio
- Low Insertion Loss
- High Isolation
Applications
- Fiber Sensors
- Fiber Lasers
- Fiber Amplifiers
Frequently Asked Questions
What is the Polarization Maintaining Tap Isolator?
The Polarization Maintaining Tap Isolator combines a tap coupler and a polarization sensitive isolator into a single compact package, offering high extinction ratio and very low insertion loss.
What applications are suitable for the PM Tap Isolator?
The PM Tap Isolator is ideal for fiber sensors, fiber lasers, and fiber amplifiers where signal monitoring is required.
What are the key features of the PM Tap Isolator?
The key features include high extinction ratio, low insertion loss, and high isolation.
Why is the PM Tap Isolator used in fiber optic systems?
The PM Tap Isolator is used in fiber optic systems to provide signal monitoring while maintaining polarization and minimizing signal loss.
