Ascentta 780 nm PM Fiber Circulator

Name: Polarization Maintaining (PM) Fiber Optic Circulator (780nm)
Brand: Ascentta
SKU: FL-18264
Price: 1730.00 USD
Availability: InStock

Description

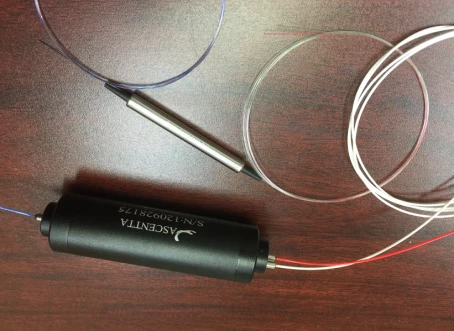

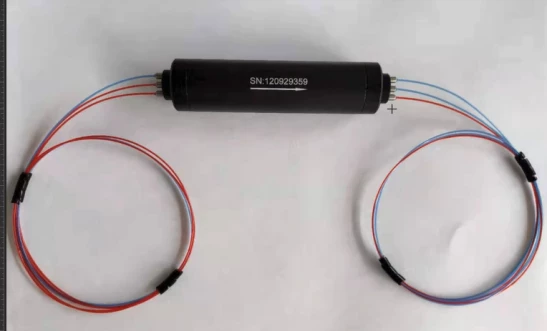

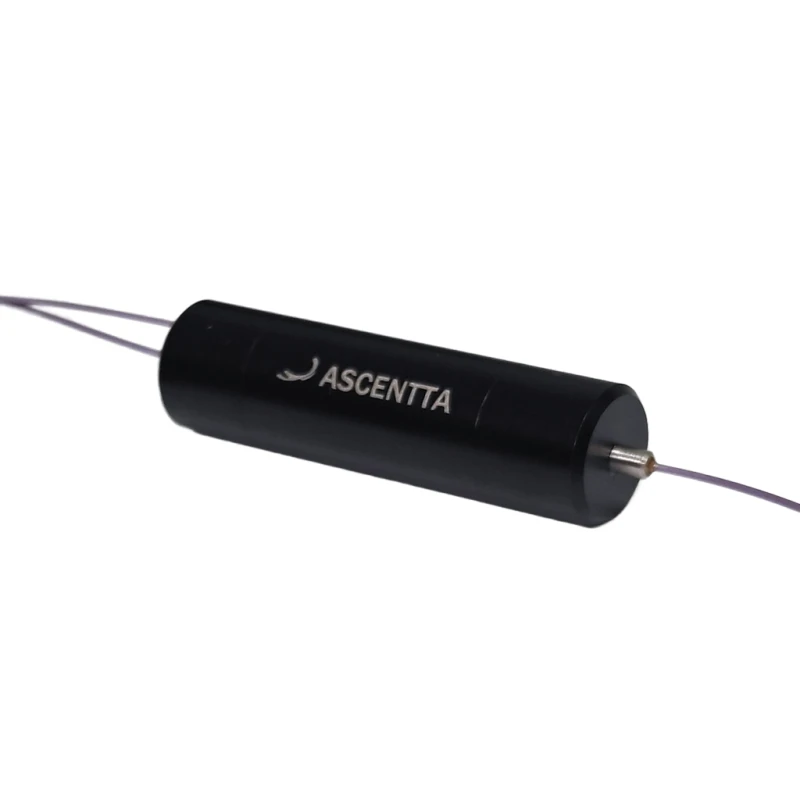

The PMVCIR 780nm Polarization-Maintaining Optical Circulator by Ascentta, Inc. is a compact and high-performance three-port fiber optic circulator designed for polarization-maintaining applications.

It transmits signals from port 1 to port 2 and from port 2 to port 3 simultaneously, making it ideal for use in sensing and communication systems with fiber gratings and other reflective components. Ascentta, Inc. also offers multiport circulator modules with up to N<=8 ports.

Ascentta also offers single mode polarization independent circulator in 780nm and other wavelength range such as 405nm, 532nm, 650nm, 785nm, 850nm, 980nm, 1030nm, 1064nm and telecommunication wavelengths.

Specifications

Type Of The Device:	Circulator
Operating Wavelength:	780 nm
Max Power:	0.25 W
Min Isolation:	21 dB
Insertion Loss (Fast Axis Block) (1→2, Or 2→3):	1.8 dB
Package Size:	OD24 x L65 mm
Extinction Ratio Min.:	20 dB
Return Loss Min:	45 dB
Directivity (1→3, Or 3→1):	40 dB
Fiber Length:	3.0 m
Operating Temperature:	+10 to +50 °C
Storage Temperature:	0 to +60 °C
Manufacturer Part Number (MPN):	PMVCIR-3-780-S-L-FA
FindLight SKU:	FL-18264

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Compact and high-performance polarization-maintaining three-port optical circulator
Simultaneous transmission from port 1 to port 2 and from port 2 to port 3
Specifically designed for polarization-maintaining applications
Four-port and N-port variants for diverse connectivity available
Visible/IR TGG options for wider wavelength compatibility
Polarization-dependent free-space (core) configuration available
High-isolation variant for 1060nm applications

Applications

Polarization-maintaining optical systems
Fiber optic networks with polarization-sensitive components
Telecommunications and data centers
Optical sensing and measurement applications
Research and development in fiber optics

Export & Trade Information

ECCN:	EAR99
HTS Code:	9027.90.8400
Estimated US Tariff:	0%

Importing, tariffs & codes (Quick Guide) →

$1,730.00

Volume Pricing:

Qty	Unit Price	Extended Price
5	$1,720.00	$8,600.00
10	$1,710.00	$17,100.00

Discounts apply automatically in cart.

Shipping:: Arrange Pickup ⓘ
Ships from:: United States
Processing:: 40 days
Delivers to:: United States

Made by:: Ascentta
Made in:: China
Warranty:: View full terms
Returns:: View return policy
Sold by:: Ascentta
On FindLight:: since 2020

Got Questions? Ask Below ▼

Message the supplier directly
No signup or account needed
Expect a fast reply

Ask a Question

To: Ascentta
Re: Polarization Maintaining (PM) Fiber Optic Circulator (780nm)

Name

Work Email

Organization

Country

Qty.

Your message to supplier

Thank you, your message was sent successfully.

Frequently Asked Questions

What is the function of the 3-Port Optical Circulator?

The 3-Port Optical Circulator is a device that directs light from one port to another in a specific sequence, typically from port 1 to port 2 and then from port 2 to port 3, while isolating the reverse direction.

What is the maximum optical power handling capacity?

The maximum optical power handling capacity varies by wavelength; for 780nm, it is 150mW.

What are the operating and storage temperature ranges for the circulator?

The operating temperature range is 10°C to 50°C, and the storage temperature range is 0°C to 60°C.

How does adding connectors affect the circulator's specifications?

Adding connectors can affect the insertion loss (IL), return loss (RL), and extinction ratio (ER) of the circulator.

What is the extinction ratio for the circulator?

The minimum extinction ratio is 20 dB for wavelengths 780nm and above.

What are the package dimensions for the circulator?

The package dimensions are Φ24xL65 mm. Other wavelengths may have different dimensions.
