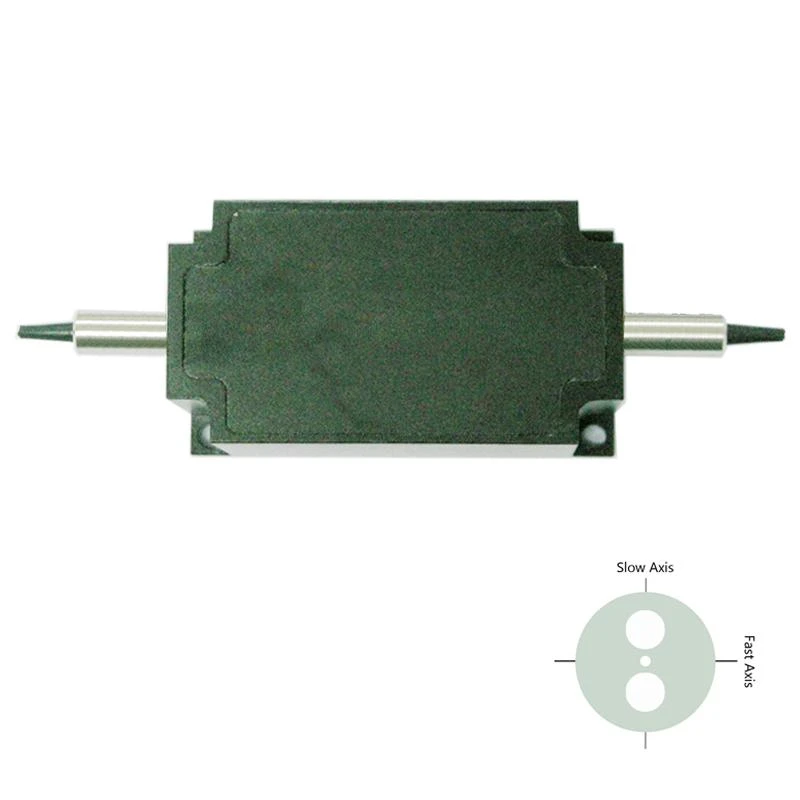

High Power 532nm PM Optical Isolator
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2021
Description
High Power 532nm Polarization Maintaining Optical Isolator is an advanced fiber passive component meticulously engineered with TGG crystal. This isolator is designed to facilitate the transmission of light signals in a singular forward direction, effectively minimizing back reflection light. This capability is crucial in maintaining the integrity of the light source and reducing optical signal noise, making it an indispensable component in various high-precision applications.
Widely utilized in biomedical systems and fiber optic sensor systems, this optical isolator ensures optimal performance by safeguarding the light source. Its robust design and high power handling capabilities make it suitable for demanding environments, where maintaining signal quality is paramount. The isolator's ability to handle higher optical power upon request further enhances its versatility, catering to specific needs in specialized applications.
For those requiring pulse-type configurations, customization options are available to meet unique operational requirements. This product's high reliability and low insertion loss, combined with its high isolation properties, make it a preferred choice for fiber laser applications and lab & research settings. Its compact design, with dimensions of 4x3mm, ensures easy integration into existing systems without compromising on performance.
High Power 532nm PM Optical Isolator
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 532 nm |
| Max Power: | 2 W |
| Min Isolation: | 22 dB |
| Max. Insertion Loss: | 2.0 dB |
| Typ. Isolation: | 30 dB |
Features
- High Power 532nm Polarization Maintaining Optical Isolator: Designed for efficient light signal delivery in one direction, minimizing back reflection and optical signal noise.
- Applications: Ideal for use in biomedical systems, fiber optic sensor systems, fiber lasers, and lab research.
- High Isolation: Ensures minimal interference with a minimum isolation of 22 dB and typical peak isolation of 30 dB.
- Low Insertion Loss: Offers a typical insertion loss of 1.6 dB and a maximum of 2.0 dB, ensuring efficient signal transmission.
- High Reliability: Built with robust materials, including TGG crystal, for long-lasting performance.
- Flexible Power Handling: Supports continuous wave (CW) optical power up to 2W, with peak power options up to 5KW.
- Precision Alignment: Slow axis is default aligned to the connector key for optimal performance.
- Customizable Options: Available in various wavelengths (488nm, 532nm, 633nm, 635nm, 650nm, 680nm) and fiber lengths (0.5m, 1.0m, 1.5m, 2.0m).
- Operating Conditions: Suitable for temperatures ranging from +10℃ to +50℃, with storage temperatures from 0℃ to +60℃.
- Durable Design: Maximum tensile load of 5N, ensuring durability and stability in various environments.
Applications
- Optical Biomedical: Ideal for use in biomedical systems to ensure precise optical signal management.
- Fiber Optic Sensor: Enhances the performance of fiber optic sensor systems by protecting the light source and reducing optical signal noise.
- Fiber Laser: Suitable for fiber laser applications, providing high power handling and maintaining signal integrity.
- Lab & Research: Perfect for laboratory and research environments requiring high reliability and performance.
- High Power: Capable of handling high optical power levels, with options available for customization.
- High Isolation: Offers high isolation to prevent back reflection and interference.
- Low Insertion Loss: Ensures minimal signal loss for efficient optical transmission.
- High Reliability: Built for durability and consistent performance in demanding applications.
Frequently Asked Questions
The High Power 532nm PM Optical Isolator is used to deliver light signals in one forward direction and prevent back reflection light in biomedical and fiber optic sensor systems.
The isolator can handle a maximum optical power of 0.5W, 1W, 2W, or a specified power.
The insertion loss of the isolator is typically 2.0 dB.
Yes, the isolator can be used for pulse type applications, but it is recommended to contact us to confirm.
The isolator can operate within a temperature range of +10 to +50 ℃.
