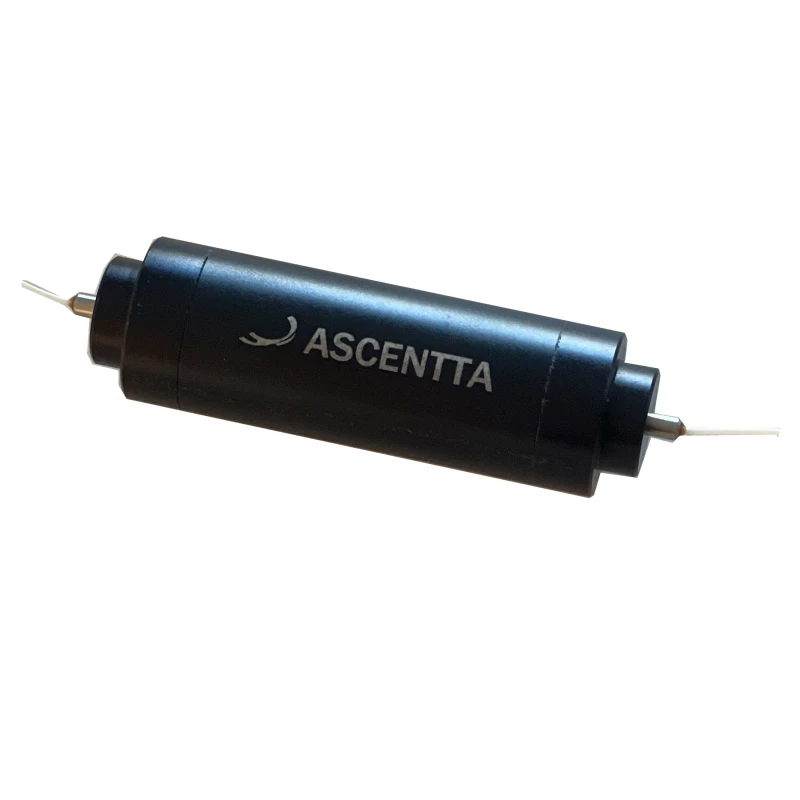

Optical (TGG Type) Isolator: Single-Mode
Our Optical Isolator is a high-performance device designed to ensure that light travels only in the desired direction, effectively eliminating any back reflections that could potentially disrupt optical systems. It is crafted using top-quality materials and state-of-the-art technology, ensuring reliability and efficiency in various optical applications. This single-mode isolator is available in a range of wavelengths, including 532nm, 635nm, 650nm, 780nm, 850nm, 980nm, 1030nm, and 1060nm, making it versatile for different needs.
Each isolator is meticulously engineered to deliver optimal performance, with typical isolation levels ranging from 26dB to 30dB, depending on the wavelength. The insertion loss is kept to a minimum, ensuring maximum signal integrity with values ranging from 1.2dB to 2.3dB. The device is built to handle varying optical power levels, with a maximum capacity of up to 250mW, making it suitable for both low and high-power applications.
Constructed in a robust cylindrical package, the isolator is designed to withstand operating temperatures from 10°C to 50°C, ensuring durability and consistent performance even in challenging environments. The compact design, with dimensions tailored to each wavelength, facilitates easy integration into existing systems. Our optical isolator is an ideal choice for those seeking reliability and efficiency in optical isolation applications.
Single-Mode Optical Isolator (TGG Type), Multiple Wavelengths Available
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 532 nm |
| Max Power: | 0.05 W |
| Min Isolation: | 23 dB |
| Insertion Loss (All SOP) Max.: | 2.3 dB |
| Return Loss Min.: | 45 dB |
| Extinction Ratio Min.: | 18 dB |
| Operating Temperature: | +10 to +50 °C |
| Storage Temperature: | 0 to +60 ℃ |
Features
- Wide range of optical isolators, including single-mode, multimode, and PM isolators
- Inline and free space (Faraday isolators) configurations
- Covers various wavelengths: 405nm, 532nm, 635nm,780nm, 850nm, 980nm, 1060nm, 1310nm, 1550nm, and L-band
- Customization options available for tailored solutions
Applications
- Fiber optics communication systems
- Laser systems
- Optical testing and measurement
- Research and development
- Telecommunications
Frequently Asked Questions
The typical isolation ranges from 26 dB (for 532, 635, 650 nm) to 30 dB (for 980, 1030, 1060 nm), and the minimum isolation ranges from 23 dB (for 532, 635, 650 nm) to 25 dB (for 980, 1030, 1060 nm).
The maximum insertion loss ranges from 2.3 dB (for 532 nm) to 1.2 dB (for 980, 1030, 1060 nm).
The maximum PDL ranges from 0.2 dB (for 532, 635, 650 nm) to 0.15 dB (for 980, 1030, 1060 nm).
The maximum PMD is 0.2 ps for all wavelengths.
The minimum return loss is 45 dB for all wavelengths.
The maximum optical power handling ranges from 50 mW (for 532 nm) to 250 mW (for 980, 1030, 1060 nm).
The package dimensions are Φ21xL60 mm for 532 nm, Φ21xL75 mm for 635, 650 nm, Φ24xL80 mm for 780, 850 nm, and Φ24xL95 mm for 980, 1030, 1060 nm.
The operating temperature is from 10 to 50°C and the storage temperature is from 0 to 60°C.
The above specifications are for parts without connectors. Adding connectors can affect the insertion loss (IL), return loss (RL), and PDL. SOP=State of Polarization.
Contact Ascentta with your custom configuration needs, specifying the wavelength, fiber type, cable type, fiber length, connector, max power, and package. Use the provided codes to specify options. For instance, 'S=Single-Mode' for fiber type, 'B=250um' for cable type, '10=1.0m' for fiber length, and 'FA=FC/APC' for connector type. The max power affects other specifications.
