Description
The Polarization Sensitive Isolator is designed and manufactured according to Telcordia standard. The unique manufacturing process and optical path epoxy-free design enhance the device high power handling capability. The optical isolator is characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, fiber lasers, transmitters and other fiber optics communication equipment to suppress back reflection and back scattering.

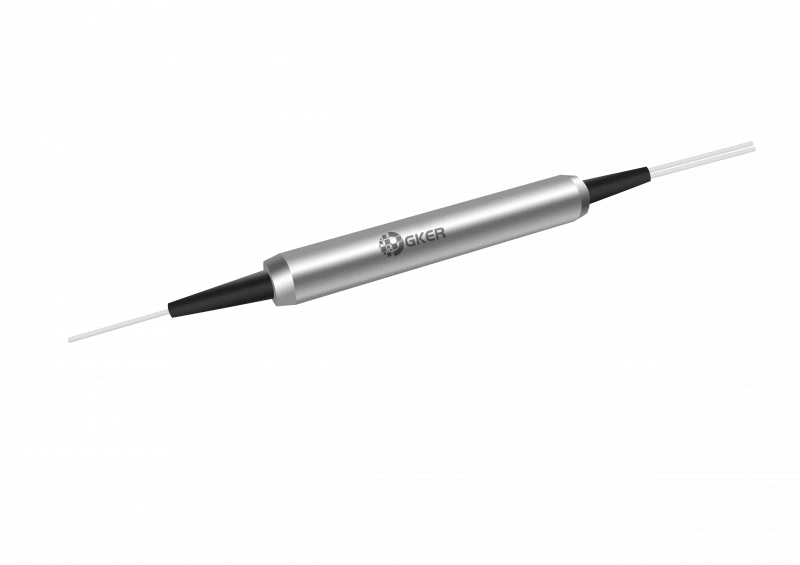

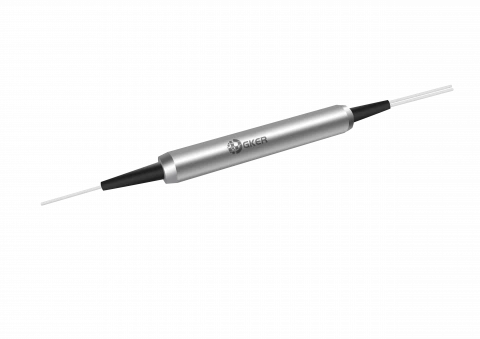

1064 nm Polarization Sensitive Isolator
Specifications
| Type Of The Device: | Isolator |
|---|---|
| Operating Wavelength: | 1064 nm |
| Max Power: | 0.3 W |
| Min Isolation: | 32 dB |
| Center Wavelength (λc): | 1064 nm |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Fiber Type: | Hi1060 |
Download Data Sheet
Features
- High Isolation
- High Return Loss
- Low Insertion Loss
Applications
- EDFAs
- Raman Amplifiers
- DWDM Systems
Frequently Asked Questions
What is the Polarization Sensitive Isolator?
The Polarization Sensitive Isolator is designed and manufactured according to Telcordia standards, featuring a unique manufacturing process and optical path epoxy-free design that enhances its high power handling capability.
What applications are suitable for the Polarization Sensitive Isolator?
The Polarization Sensitive Isolator is ideal for EDFAs, Raman amplifiers, DWDM systems, fiber lasers, transmitters, and other fiber optics communication equipment.
What are the key features of the Polarization Sensitive Isolator?
The key features include high isolation, high return loss, and low insertion loss.
Why is the Polarization Sensitive Isolator used in fiber optics communication equipment?
The Polarization Sensitive Isolator is used to suppress back reflection and back scattering, ensuring high performance and reliability in fiber optics communication equipment.
