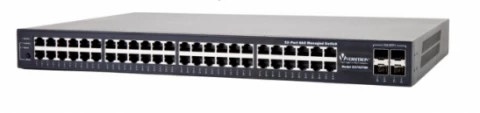

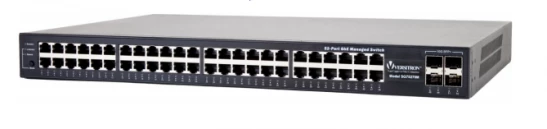

SG75270M 52-Port 10/100/1000 Layer 2 Plus Managed Switch
Description
Here's a high-capacity ethernet network switch that also provides fiber optic connectivity at 1G or 10G speeds.The SG75270M provides 48 ports of 10/100/1000 with RJ45 connectors and 4 SFP slots which accept either 1G or 10G f.o. SFP modules. This product is ideal for those larger network requirements where enhanced management features are desired, along with uplink connectivity via f.o. cable to remote network locations. And, the flexibility offered by SFP modules means you can use multimode, singlemode, or single fiber cables with this device. 100km links are possible with the use of VERSITRON'S GB100SM 1G SFP module and 80km distances are supported at 10G speed with our 10GB80SM SFP module. As with all VERSITRON products, the SG75270M carries a lifetime warranty.
SG75270M 52-Port 10/100/1000 Layer 2 Plus Managed Switch
Specifications |
|
|---|---|
| Number Of Ports: | 4-52 |
| Wavelength Range: | 1000-1600nm |
| Insertion Loss (typical): | - dB |
| Return Loss: | - dB |
Features
Provides 48 ports 10/100/1000 Ethernet (RJ45)
Provides 4 1G/10G SFP fiber slots
Compliant with IEEE 802.3az EEE Energy, Efficient Ethernet (standard for green Ethernet)
176 Gbps switching capacity
32K MAC address Table
Supports jumbo frames to 10K
UPnP (Universal Plug and Play)
Supports SFP Fiber Module Technology
Rackmountable
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
External Vendor
Claim Versitron Page to edit and add data
Frequently Asked Questions
Yes, the SG75270M switch supports IPv6.
The SG75270M switch provides 48 ports of 10/100/1000 with RJ45 connectors and 4 SFP slots which accept either 1G or 10G f.o. SFP modules.
The SG75270M is a 52-port 10/100/1000 Layer 2 Plus Managed Switch with 1G/10G SFP slots that provides fiber optic connectivity at 1G or 10G speeds.
The SG75270M switch carries a lifetime warranty.
The SG75270M switch supports Cat.5 up to 100m for 10/100Mbps, Cat.5e or higher up to 100m for 1Gbps, and Cat.6 or higher up to 100m for 10Gbps. It also supports multi-mode or single-mode fiber with LC connectors.
