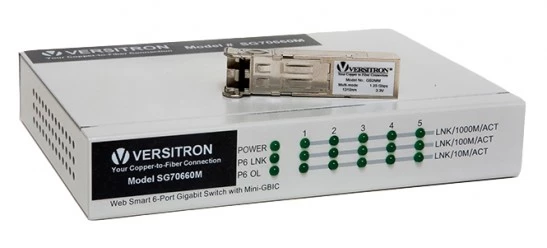

SG70660M 6-Port 10/100/1000 Web Smart Switch
Description
If you're tired of having to buy big switches for small applications, this 6-port managed gigabit fiber switch is for you. The SG70660M comes in a compact package and is compatible with 10, 100, or 1000baset network devices. This product also offers fiber optic uplinks using GBIC module technology. Many choices are available including multimode, singlemode, and single fiber. So, if you need a "little switch" with a "big switch" mentality, this could be your answer. As with all VERSITRON products, this switch carries a lifetime warranty.
SG70660M 6-Port 10/100/1000 Web Smart Switch
Specifications |
|
|---|---|
| Number Of Ports: | 2-6 |
| Wavelength Range: | 1000-1600nm |
| Insertion Loss (typical): | - dB |
| Return Loss: | - dB |
Features
Provides 5 10/100/1000Mbps Gigabit Ethernet ports and (1) 100/1000 SFP port
Provides in-band web-based management interface
All copper ports support auto-negotiation and auto-MDI/MDI-X detection
Provides full wire speed forwarding
Supports 802.3x flow control for full-duplex and backpressure for half-duplex
Provides port status, statistic monitoring, and control function
Supports port-based and 802.1Q Tag-based VLAN
Provides QoS function
Provides port link aggregation (trunking) function
Provides port mirroring function
Compact Design
Supports SFP Module Technology
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
External Vendor
Claim Versitron Page to edit and add data
Frequently Asked Questions
The SG70660M offers fiber optic uplinks using GBIC module technology, with many choices available including multimode, singlemode, and single fiber.
The SG70660M provides 5 10/100/1000Mbps Gigabit Ethernet ports and (1) 100/1000 SFP port, in-band web-based management interface, full wire speed forwarding, port status, statistic monitoring, and control function, port-based and 802.1Q Tag-based VLAN, QoS function, port link aggregation (trunking) function, port mirroring function, and compact design.
The SG70660M is a 6-Port 10/100/1000 Web Smart Switch with (1) SFP Slot, with standards including IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.1Q, and network ports including (5) 10/100/1000Mbps Copper Ports (RJ -45) and (1) 100/1000Mbps SFP Slot. It also has a buffer memory of 112Kb, a MAC Addresses table with 8K entries, and LED indication for power status, TX ports, and FX port.
The SG70660M is a 6-port managed gigabit fiber switch that is compatible with 10, 100, or 1000baset network devices.
The SG70660M, like all VERSITRON products, carries a lifetime warranty.
