MPX-1 Encircled Flux Meter
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description

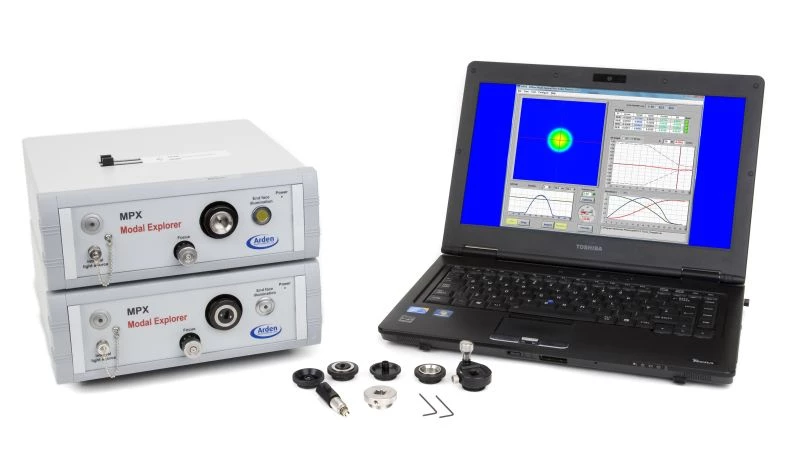

The MPX Modal Explorer, crafted by Arden Photonics, is a cutting-edge Encircled Flux meter that has become the preferred choice for leading companies globally. This innovative device is designed to provide real-time measurement of Modal Launch Conditions with remarkable ease and precision. By simply connecting your source and patchcord to the MPX, you can achieve accurate and efficient results, enhancing your workflow and productivity. Manufactured with meticulous attention to detail, the MPX Modal Explorer is synonymous with reliability and performance. Its user-friendly interface allows for seamless integration into various testing environments, making it an essential tool for professionals in the photonics industry. The device's robust design ensures it withstands the rigors of daily use, while its advanced features guarantee superior measurement accuracy. Arden Photonics Ltd, located in Solihull, UK, and Clearwater, USA, proudly stands behind the MPX Modal Explorer, offering exceptional customer support and service. With a commitment to innovation and quality, Arden Photonics continues to lead the way in photonics measurement solutions.
MPX-1 Encircled Flux Meter
Specifications |
|
|---|---|
| Wavelength: | 850 nm |
| Dynamic Range: | 60 dB |
| Image Sensor: | CCD |
| Maximum Core Diameter: | 110 µm |
| Maximum Source Power: | 10 W |
| Input Connector Adaptors Available: | Universal 2.5 mm ferrule |
| End Face Inspection And Focusing: | 850 nm LED |
| Built-in Reference Source: | 850 nm LED |
| Power: | External switched mode power supply (supplied) |
| Connection To Computer: | USB 2.0 |
| Operating Systems Supported: | Windows 7 / 8 / 10, 32 bit or 64 bit |
| Operating Temperature: | 0 - +50 ºC |
| Humidity: | 5 - 95 % |
| Size, Mm: | 260 (W) x 270 (D) x 90 (H) |
| Weight: | 2.5 kg |
Features
- End face inspection mode with focus indicator to give better repeatability from operator to operator
- Power monitor - optimize light throughput and modal conditions simultaneously
- Real-time measurement - adjust modal conditions easily as well as increase productivity
- Internal LED with fully filled launch condition
- USB2.0 connection gives portability - with the optional carrying case plus a laptop computer
- Optional geometrical calibration artefact to enable user calibration of MPX
- API software control feature designed for use in the production environment
Applications
- Source and patchcord characterization for IEC11801 and TIA/EIA568 LAN testing
- VCSEL characterization for Gigabit Ethernet IEEE 802.3
- Mode-scrambler and mode-filter characterization
- Connector inspection
- Measure sources to IEC 61280-4-1
- Alignment of pig-tailed light sources
Frequently Asked Questions
The applications of the MPX Modal Explorer include source and patchcord characterization for IEC11801 and TIA/EIA568 LAN testing, VCSEL characterization for Gigabit Ethernet IEEE 802.3, mode-scrambler and mode-filter characterization, connector inspection, measure sources to IEC 61280-4-1, and alignment of pig-tailed light sources.
The MPX Modal Explorer is available in MPX-1 and MPX-2 models, with wavelengths of 850nm and 1300nm. The Encircled Flux measurement range is from 400 to 1100nm for MPX-1 and 900 to 1700nm for MPX-2. The size of the MPX Modal Explorer is not specified.
The MPX Modal Explorer has features such as end face inspection mode with focus indicator, power monitor, real-time measurement, internal LED with fully filled launch condition, USB2.0 connection, and optional geometrical calibration artefact.
The MPX Modal Explorer is used for measuring Encircled Flux, which is a preferred way to specify modal filling by IEEE, TIA, and IEC.
The MPX Modal Explorer is available in models for measurements at 850nm and 1300nm.
