ModCon Mode Controller for Multi-Mode Fiber Testing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
ModCon Mode Controller is an innovative solution designed to enhance the precision and reliability of your fiber optic measurements. This compact and lightweight module seamlessly integrates with your existing LED or VCSEL light source, transforming it into a stable and consistent Encircled Flux (EF) compliant output. This compliance is crucial for adhering to the stringent standards set by IEC 62180-4-1:2009, ensuring that your measurements are both accurate and reliable. In the world of fiber optics, the accuracy of loss and bandwidth measurements in multi-mode fibers is heavily influenced by the modal condition of the light source. The ModCon Mode Controller addresses this challenge by providing a uniform distribution of modes, regardless of the light source being used. This results in reduced uncertainty and increased consistency in your measurements, which is particularly beneficial when dealing with different sources such as lasers and LEDs. By using the ModCon, you can achieve better agreement between test data sets, thereby enhancing the overall reliability of your fiber optic system assessments. Every ModCon unit undergoes rigorous testing with Arden’s MPX Modal Explorer to ensure compliance with international standards, regardless of the input's modal distribution. This meticulous testing process guarantees that each ModCon delivers the precise performance needed for high-quality measurements. Furthermore, Arden Photonics offers a Certificate of Conformance or Test Sheet with each ModCon, assisting you in maintaining comprehensive records of your test equipment. This documentation is invaluable for meeting industry standards and ensuring traceability in your measurement processes.

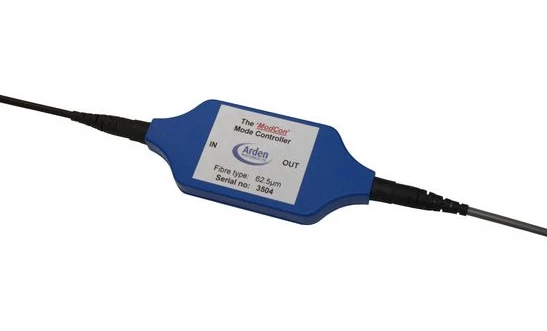

ModCon Mode Controller for Multi-Mode Fiber Testing
Features
- Encircled Flux Compliance: The ModCon Mode Controller ensures EF compliance to IEC 62180-4-1:2009, providing stable and consistent output.
- Plug & Play: Easily integrates with your LED or VCSEL light source for repeatable EF compliant launch conditions.
- Improved Measurement Accuracy: Reduces uncertainty in measurements by ensuring consistent modal distribution across different light sources.
- Enhanced Repeatability: Optimizes measurements in multi-mode fibers, reducing variability and increasing accuracy.
- Optimized for Key Wavelengths: Works effectively at 850nm and 1300nm, making it versatile for various applications.
- Universal Compatibility: Compatible with all multi-mode fiber optic testers, ensuring broad usability.
- Rigorously Tested: Each unit is tested with Arden’s MPX Modal Explorer to ensure compliance, with optional Certificate of Conformance available.
- Compact and Lightweight Design: Weighs only 50g with dimensions of 153mm x 36mm x 10.5mm, excluding cabling.
- Robust Construction: Features a high-strength polymer enclosure and 3mm PVC jacketed cables with Aramid strength member for durability.
- Optical Performance: Maximum power throughput of 10mW with insertion loss at 850nm of less than 3dB for both 50µm and 62.5µm fibers.
Applications
- EF Compliant to IEC 62180-4-1: Ensures adherence to international standards for encircled flux compliance.
- Improves Measurement Repeatability: Enhances the consistency of measurements in multi-mode fiber tests.
- Optimized for 850nm and 1300nm: Specifically designed to work effectively at these common wavelengths.
- Compatible with All Multi-Mode Fiber Optic Testers: Versatile functionality with various testing equipment.
Frequently Asked Questions
The ModCon Mode Controller has a physical mass of 50g, dimensions of 153mm x 36mm x 10.5mm (excluding cabling), and input/output cable length of 1.0m. It has a maximum power throughout of 10mW and insertion loss at 850nm of 50µm < 3dB; 62.5µm < 3dB. It also has encircled flux compliance to IEC 61280-4-1:2009 and passive reference grade connectors.
The ModCon Mode Controller features encircled flux preserving extender patchcords to protect the ModCon output connector from wear and change connector type on the ModCon output.
The ModCon Mode Controller is a compact and lightweight module that modifies your LED or VCSEL light source to provide repeatable EF compliant launch conditions.
By simply plugging the ModCon into your light source, you will be provided with a stable and consistent EF compliant output that meets IEC 62180-4-1:2009.
The ModCon Mode Controller is used in telecomms and aerospace applications.
