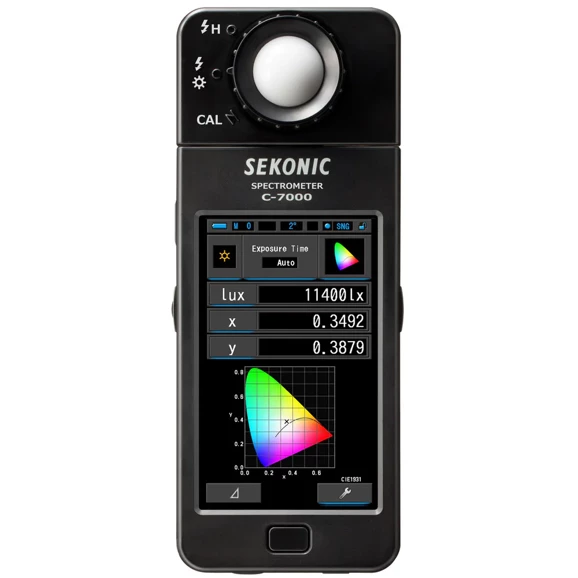

C-7000 Spectrometer - Sekonic

Alrad Instruments Ltd

Specifications

Spectral Range: 380 – 780 nm
Optical Resolution (FWHM): 11 nm
Luminance Measurement Range: Not Specified
Document icon Download Data Sheet Download icon

Features


  • Measures LED, HMI, Fluorescent, Tungsten, Natural Light and Flash, from 380 to 780 nm

  • Wide measurement range of Colour Temperature (1,563 to 100,000K) and illuminance (1 to 200,000 lx in ambient light, 20 to 20,500 lx)

  • Conforms to Class A of JIS C 1609-1: 2006, and DIN 5032 Part 7 Class C as Illuminance meter class

  • Text Mode with more measurement for Industrial use such as Tcp, ⊿uv, XYZ, λd, λp

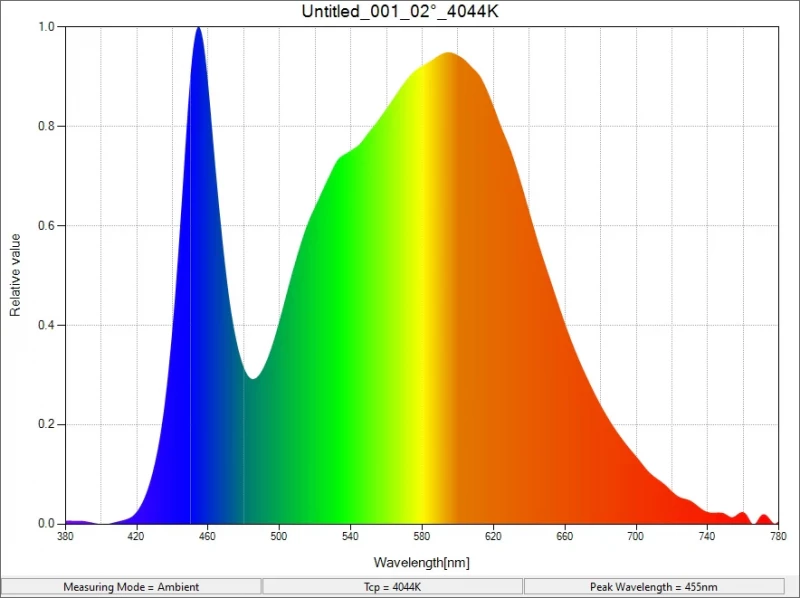

  • Spectrum Mode / Spectrum Comparison Mode

  • PPFD (Photosynthetic Photon Flux Density) Measurement

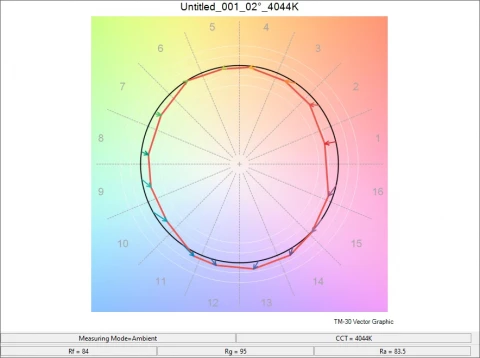

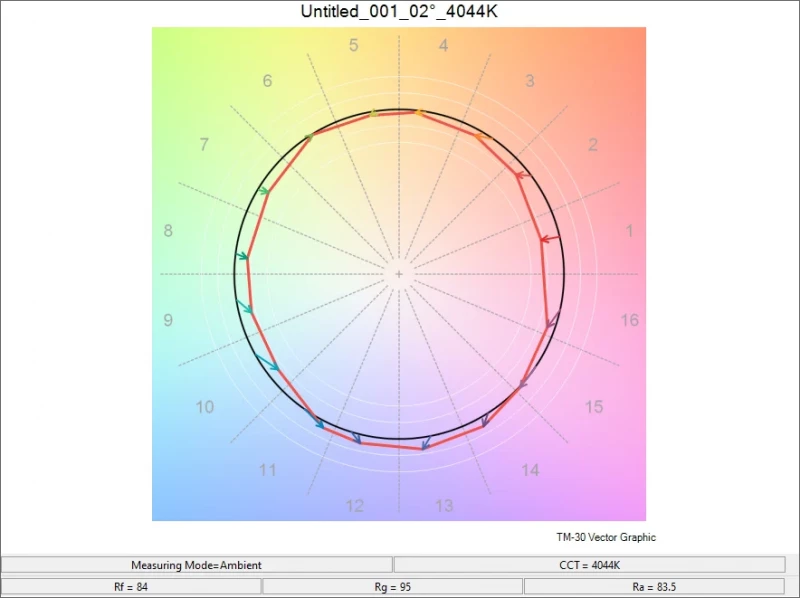

  • Expanded Colour Rendering Properties (CRI/CRI Comparison, SSI, TLCI, TLMF, TM-30-18)

  • CIE1931 (CIE1964) Chromaticity Coordinates and CIE1931 (CIE1964) Comparison Mode

  • CIE1976 Chromaticity Coordinates and CIE1976 Comparison Mode

  • 2° or 10° field of view is selectable

  • Single / Continuous measurement

  • Exposure time (Shutter speed) is selectable

  • Up to 999 measurements can be stored in memory

  • User-friendly design: 270 degrees swivel head, dark calibration without a cap, large 4.3” colour touch panel LCD and Customize function

  • C-7000 Utility offers easy setting, updating firmware of the meter, and outputting the various graphics and csv data

  • 1nm / 5nm increment spectrum output in CSV format by Utility

  • SDK (Software Development Kit) for remote control is available

Applications

The C-7000 is an important measuring tool for quality control in:



  • Lamp manufacturing

  • Medical facilities

  • Educational / office safety and health standards

  • Agricultural lighting / design

  • Other industrial uses
