Description
IR VIVO is an infrared multispectral imager designed for biological studies with animals. Using near and shortwave infrared light, IR VIVO hyperspectral imager benefits from reduced scattering as well as minimal tissue absorption and auto-fluorescence. This allows deeper, clearer imaging than standard optical imaging.
IR VIVO takes advantage of the most recent developments in SWIR imaging. It combines Photon etc.’s ultra-low noise InGaAs camera (Alizé™ 1.7 or ZephIR™ 1.7) with novel illumination and powerful analytical software to provide an unprecedented combination of fast, high resolution and deep imaging.
With this IR multispectral imaging system you can visualize biomarkers in vivo and in real-time with high sensitivity and optimized contrast resolution.

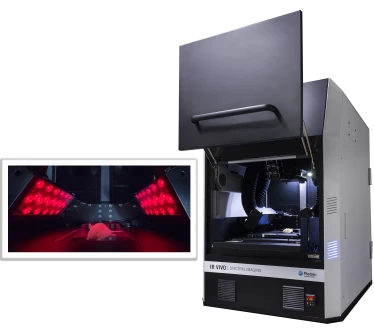

IR VIVO™ Pre-Clinical Infrared Multispectral Imager
Specifications
| Imaging Mode: | Photoluminescence (PL) |
|---|---|
| Excitation Wavelength: | 785 nm |
| Spectral Range (Raman Imaging): | Not Applicable |
| Spectral Range (PL, EL, DR Imaging): | 900 - 1700 nm |
| Spectral Resolution (Raman Imaging): | Not Applicable |
| Spectral Resolution (PL, EL, DR Imaging): | <4 nm |
| Spatial Resolution: | Sub-Micron Range |
| Illumination Area: | 15.6x12.5 cm |
| Anesthetic Tubing And Nosecone: | 3 mice anesthetic gaz manifold supplied |
| Camera: | InGaAs (ZephIR™ 1.7 or Aliz.™ 1.7) |
| Lens: | 28mm focal, f#1.4 NIR-II lens |
Download Data Sheet
Features
IR VIVO Infrared Multispectral Imager features the following key attributes:
- High spatial resolution hyperspectral imager
- High Temporal Resolution (real-time dynamics)
- Non-ionizing & Non-invasive
- Good penetration depth (10x greater than traditional visible optical systems)
Applications
The increased penetration depth and contrast of this Infrared Multispectral Imager, combined with its fast acquisition speed and micron-scale spatial resolution, enable to visualize simultaneously microvasculature and blood flow through an intact cranial bone. Other biological applications include pharmacokinetics of chemotherapy drugs and lipid quantification in liver and blood circulation.
Frequently Asked Questions
What are some applications of IR VIVO?
What are the benefits of using IR VIVO?
What are the key attributes of IR VIVO?
What is IR VIVO?
What is the spectral range of IR VIVO?
