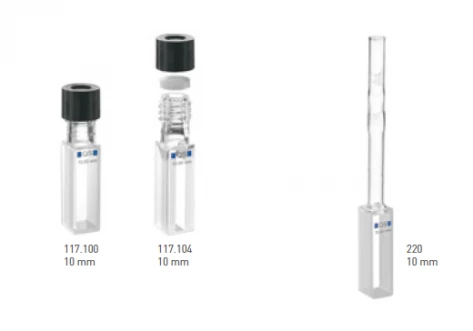

SEALABLE CELLS 117.200-QS

Description

Hellma Analytics produces a wide range of cuvettes for use in spectroscopy and cytometry with optical path lengths spanning 0.01 mm to 100 mm and above. Thanks to their stability, maximum precision and reliability when used for absorbance and fluorescence measurements, Hellma cuvettes work exceptionally well in a wide range of areas in the lab.

With a surface flatness of 1 μm, our quartz windows set a benchmark in cuvette production. What’s more, the function-optimized design with beveled edges and corners protects against the risk of damage caused by splitting and assists users in their daily work. On request, we are able to produce custom models designed for specific areas of application.

Specifications

Window Material:	Quartz glass high performance (QS)
Wavelength Range:	200 – 2500 nm
Width:	12.5 mm
Depth:	12.5 mm
Height:	56 mm
Light Path:	10 mm
Max Temperature:	Not Specified
Fiber Optic Cable:	None

Download Data Sheet

Features

Extremely high parallelism of the windows with a maximum tolerance of ± 0.01 mm

Exceptional optical path length accuracy down to 0.003 mm (3 μm) for high dimensional accuracy and reproducible measurements results

Unique surface flatness of the optical windows of 0.001 mm (1 μm)

Very high temperature stability and chemical resistance due to thermal bonding of individual components (effectively monolithic)

Guaranteed transmission of at least 85% from 200 nm to 3500 nm depending on the material

Applications

Spectroscopy

Chemistry Labs

Laser spectroscopy

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Hellma USA INC

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the optical path length accuracy of the SEALABLE CELLS 117.200-QS?

The SEALABLE CELLS 117.200-QS has exceptional optical path length accuracy down to 0.003 mm (3 μm) for high dimensional accuracy and reproducible measurement results.

What is the surface flatness of the optical windows of the SEALABLE CELLS 117.200-QS?

The SEALABLE CELLS 117.200-QS has a unique surface flatness of the optical windows of 0.001 mm (1 μm).

What is the transmission guarantee of the SEALABLE CELLS 117.200-QS?

The SEALABLE CELLS 117.200-QS has a guaranteed transmission of at least 85% from 200 nm to 3500 nm depending on the material.

What is the temperature stability of the SEALABLE CELLS 117.200-QS?

The SEALABLE CELLS 117.200-QS has very high temperature stability and chemical resistance due to thermal bonding of individual components (effectively monolithic).

Can custom models be produced for specific areas of application?

Yes, on request, Hellma Analytics is able to produce custom models designed for specific areas of application.
