What are the main types of cuvette holders used in spectroscopy and photonics labs?

Common types include basic fixed-path single-position holders, multi-position or turret holders for rapid sample exchange, temperature-controlled holders with Peltier or liquid circulation, and fiber-coupled holders that interface directly with optical fibers. There are also specialized holders for fluorescence at 90°, integrating sphere configurations, flow-through cuvettes, and long-pathlength cells for low-concentration measurements.

How do optical path length and geometry of the cuvette holder affect measurement performance?

The holder must maintain the designed optical path length of the cuvette (typically 1 mm, 2 mm, 5 mm, or 10 mm, with 10 mm being the most common) so that Beer–Lambert law calculations are valid. Geometry—such as straight-through vs 90° collection, adjustable height, and beam collimation or focusing—determines how efficiently the excitation and collection beams interact with the sample and how sensitive the setup is to misalignment and stray light.

What key specifications should I consider when selecting a cuvette holder for my application?

Important parameters include supported cuvette dimensions (path length, external size), wavelength range of compatible optics or windows, numerical aperture or f/# of the input and output ports, and available port configurations (e.g., transmission only, transmission plus 90° fluorescence, reference channel). You should also consider mechanical interface (post mounts, cage systems, rail compatibility), temperature control range and stability, and whether it supports fiber coupling (SMA, FC/PC) or free-space optics.

How do I compare different cuvette holders in terms of optical performance and usability?

For optical performance, compare alignment tolerances, internal baffling or blackening for stray-light suppression, maximum allowable beam diameter, and whether the design maintains beam centration across different cuvette sizes. For usability, look at access to the cuvette slot, repeatability of insertion (e.g., kinematic mounts or keyed positioning), compatibility with stirring or injection accessories, and ease of integrating with your existing spectrometer or optomechanical framework.

What are typical lead times and customization options for cuvette holders, and what drives their cost?

Standard cuvette holders without temperature control are often available from stock or within 1–3 weeks, while temperature-controlled, flow-through, or multi-position designs may have lead times of 4–8 weeks, especially with custom machining. Cost is driven by mechanical precision, complexity of kinematic adjustments, type and quality of integrated optics or fiber couplers, temperature control hardware, and any custom interfaces or materials (e.g., vacuum compatibility, chemical-resistant coatings).

How can I find, compare, and request quotes for cuvette holders on FindLight without creating an account?

On FindLight, navigate to Spectral Analysis → Material Analysis and Forensics → Cuvette Holders, then use the filters (e.g., path length, temperature control, fiber coupling, number of positions) to narrow down the listings. You can compare shortlisted products by opening them in separate tabs and reviewing their datasheets, then use the built-in contact or “Request Quote” forms on each product page to send technical requirements directly to suppliers without registration.

Filter Products

Cuvette Holders for Spectral Material Analysis

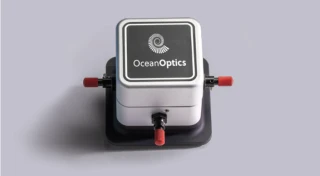

UV-Vis Cuvette Holders for Spectroscopy and Spectrophotometric Systems

Request Quote

Sold by: Ocean Optics Ships from: United States

Specifications
Pathlength:	1 cm
Z Dimension Spec:	15 mm
Integrated Light Source:	No
Light Source Mount Diameter:	9.52 mm
Dimensions (CUV-UV):	58 mm x 140 mm x 38 mm

Did You Know?

Did you know that a 1 cm path length cuvette holder that is misaligned by just 1° can introduce several percent error in absorbance readings due to increased effective path length and stray reflections at the cuvette walls? High-stability holders use kinematic mounts and spring-loaded clamps to keep the cuvette’s optical faces normal to the beam and in the same lateral position within tens of micrometers, which is critical when comparing spectra across multiple samples. For temperature-dependent measurements, some holders integrate metal blocks or liquid channels that can maintain cuvette temperature to within ±0.1 °C, significantly reducing baseline drift in UV-Vis and fluorescence assays.

Related Resources

Frequently Asked Questions

A cuvette holder is a mechanical fixture that positions a cuvette with precise alignment in the optical path of a spectrometer, fluorometer, or other photometric instrument. It ensures repeatable positioning, fixed optical path length, and controlled environmental conditions (e.g., temperature, atmosphere) so that absorbance, fluorescence, or scattering measurements are accurate and reproducible.

What Are Cuvette Holders?

Cuvette Holders are mechanical and optical fixtures designed to securely position standard or custom cuvettes in a spectroscopic beam path. In material analysis and forensic applications, they ensure stable alignment between the excitation or probe beam and the sample cell, enabling reproducible absorbance, transmission, fluorescence, and scattering measurements across UV, visible, and NIR bands.

Typical Specifications of Cuvette Holders

Cuvette Holders on FindLight support common laboratory cell formats, including standard 10 mm pathlength cuvettes, micro-volume cuvettes, and specialized flow cells. Many designs accept 12.5 mm square cells, with adapters available for alternative geometries. Materials often include black anodized aluminum or stainless steel housings to reduce stray light and improve mechanical stability.

Key specifications to review when selecting Cuvette Holders include:

Supported cuvette size and pathlength: Usually 10 mm, with options for shorter or longer pathlengths.
Wavelength compatibility: Determined by internal apertures and window access, commonly UV–Vis–NIR (200–2500 nm) when paired with appropriate cuvettes.
Optical ports: Number and geometry of input/output ports for collimated beams, fibers, or lenses, including right-angle and 4-face illumination/collection options.
Adjustment mechanisms: Translational or rotational stages for fine beam alignment, focus positioning, and height adjustment relative to the optical table.
Mounting interface: Compatibility with posts, breadboards, dovetail rails, and cage systems for integration into existing spectrometers or custom setups.

Use Cases in Material Analysis and Forensics

Cuvette Holders are used in quantitative spectrophotometry of dissolved materials, contaminant monitoring in liquids, fluorescence lifetime studies, and trace evidence analysis in forensic laboratories. They enable consistent pathlength and orientation, which is essential for Beer–Lambert law measurements, calibration curve generation, and comparative studies of sample batches.

Buyer Guidance on FindLight

When comparing Cuvette Holders on FindLight, evaluate mechanical stability, stray light suppression, compatibility with your cuvette dimensions, and optical access needed for your detector and light source. Confirm that the holder geometry matches your spectrometer beam height and that port spacing accommodates lenses or fiber collimators.

Use the product pages to review detailed specifications, drawings, and supported accessories. You can contact suppliers directly from each listing to request technical clarifications or formal quotations. All quote requests for Cuvette Holders on FindLight can be submitted without registration, allowing rapid procurement for R&D and routine analytical workflows.
