Flow Cells with Cross-Channel

Name: Flow Cells with Cross-Channel
Brand: Translume Inc.
Availability: InStock

Description

Cross-Channel Flow Cells are expertly crafted from high-quality fused silica glass, ensuring durability and precision in microfluidic applications. These flow cells feature a unique design with three input ports connected via a straight channel to a single output port. This configuration is ideal for a variety of fluidic experiments and analyses, providing seamless integration into your laboratory setup.

The flow cells are engineered with optically clear, transparent ceilings and floors, allowing for unobstructed observation and analysis of fluid dynamics within the channels. The microfluidic channels are designed with nearly vertical walls and a flat bottom, enhancing the accuracy and reliability of your experiments. The graduated reticle, with 1mm spacing running perpendicular to the channel, aids in precise measurement and alignment during use.

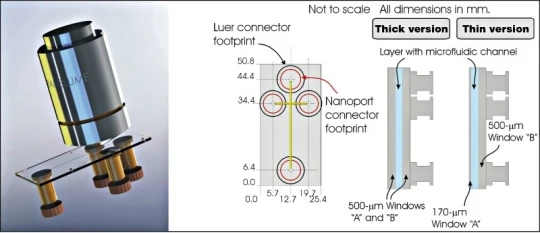

Available in both "Thin" and "Thick" versions, these flow cells cater to diverse experimental needs. The "Thin" version features a 500µm-thick optical quality window on the top and a 170µm-thick window on the bottom, while the "Thick" version offers 500µm-thick windows on both sides. This flexibility allows you to select the version that best suits your specific requirements.

Customization is key with Cross-Channel Flow Cells, as they are available with or without connectors. Choose from options such as Luer connectors or UpChurch Nanoport connectors, depending on your setup. Additionally, the flow cells come in various channel widths and depths, providing further adaptability for your microfluidic applications.

Specifications

Window Material:	IR grade fused silica, UV grade fused silica
Wavelength Range:	200 – 1600 nm
Width:	12.7 mm
Depth:	0.5 mm
Height:	50.8 mm
Fiber Optic Cable:	None

Download Data Sheet

Features

High-Quality Material: Made from premium fused silica glass, ensuring durability and optical clarity.

Innovative Design: Features three input ports connected via a straight channel to one output port, optimizing fluid flow.

Optically Clear Channels: Microfluidic channels with transparent ceilings and floors for enhanced visibility and precision.

Multiple Configurations: Available in various channel widths (100micron, 300micron) and depths (250micron, 500micron).

Size Options: Thin version- 500µm-thick optical quality window on top, 170µm-thick on bottom. Thick version- 500µm-thick optical quality windows on both top and bottom.

Precise Measurements: 2" long x 1" wide flow cell body with a graduated reticle (1mm spacing) running perpendicular to the channel.

Microfluidic Features: Nearly vertical walls and flat bottom for efficient fluid dynamics.

Applications

Microfluidic Research: Ideal for researchers working with microfluidic systems, offering precise control over fluid flow.

Biotechnology Applications: Suitable for applications in biotechnology where small-scale fluid manipulation is required.

Chemical Analysis: Used in chemical analysis for mixing and reacting small volumes of fluids.

Optical Experiments: The optically clear ceiling and floor make it suitable for optical experiments requiring visual observation of fluid flow.

Medical Diagnostics: Can be used in the development of diagnostic devices that require precise fluid handling.

Environmental Testing: Useful in environmental testing applications where small sample volumes are analyzed.

Educational Purposes: A valuable tool for educational demonstrations and experiments in fluid dynamics and microfluidics.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Translume Inc.

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the available options for channel width and depth?

The channel width can be selected from 100 micron or 300 micron, and the channel depth can be selected from 250 micron or 500 micron.

What are the available options for connectors?

The flow cells are available with no connectors, Luer connectors, or UpChurch Nanoport connectors.

What are the specifications of the flow cell body?

The flow cell body is 2" long x 1" wide and has a graduated reticle (1mm spacing) running perpendicular to the channel.

What is a fused silica flow cell?

A fused silica flow cell is a microfluidic device with optically clear channels made from high-quality fused silica glass.

What is the difference between the Thin and Thick versions?

The Thin version has a 500µm-thick optical quality window on the top and a 170µm-thick optical quality window on the bottom. The Thick version has 500µm-thick optical quality windows on both the top and the bottom.
