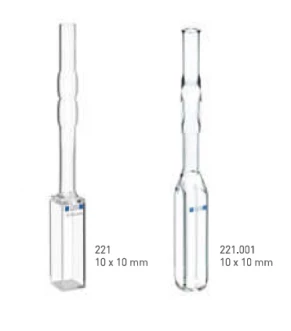

Fluorescence Cells With Tubes Quartz/Duran 221-QS

Name: Fluorescence Cells With Tubes Quartz/Duran 221-QS
Brand: Hellma USA INC
Availability: InStock

Description

The all-quartz flow-through cuvette is a high-precision cell for applications in spectroscopy. New technology enables the positioning of precise internal threads into the quartz glass. Tubes can now be connected very easily and securely directly to the cuvette.

The second path length is available by simply turning the cuvette through 90° – all tubes remain screwed in place. Time consuming changing of the cuvette is no longer necessary. Two different path lengths have a beneficial effect to the costs and the application. Furthermore, it is possible to measure the fluorescence with each optical path length – another benefit.

Specifications

Window Material:	Quartz glass high performance (QS)
Wavelength Range:	200 – 2500 nm
Width:	12.5 mm
Depth:	12.5 mm
Height:	40 mm
Light Path:	10 mm
Max Temperature:	Not Specified
Fiber Optic Cable:	None

Download Data Sheet

Features

No liquid leakage, monolithic quartz glass construction prevents this by design

Suitable for high and low temperatures

Fully autoclavable

Secure tube connection is ensured due to the innovative quartz glass internal threads

Applications

Spectroscopy

Chemistry Labs

Laser spectroscopy

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Hellma USA INC

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the Fluorescence Cells With Tubes Quartz/Duran 221-QS used for?

The Fluorescence Cells With Tubes Quartz/Duran 221-QS is used for applications in spectroscopy, laser spectroscopy, and chemistry labs.

What are the benefits of the two different path lengths?

The two different path lengths have a beneficial effect on the costs and the application. Furthermore, it is possible to measure the fluorescence with each optical path length.

Is the Fluorescence Cells With Tubes Quartz/Duran 221-QS suitable for high and low temperatures?

Yes, the Fluorescence Cells With Tubes Quartz/Duran 221-QS is suitable for high and low temperatures.

Can the cuvette be easily changed?

Yes, the cuvette can be easily changed. The second path length is available by simply turning the cuvette through 90° – all tubes remain screwed in place. Time consuming changing of the cuvette is no longer necessary.

Is liquid leakage prevented by design?

Yes, liquid leakage is prevented by design. The monolithic quartz glass construction prevents this by design.
