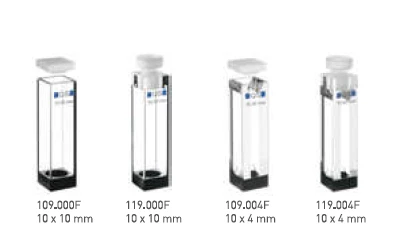

Fluorescence Cells For Magnetic Stirrers 109.000F-QS

Name: Fluorescence Cells For Magnetic Stirrers 109.000F-QS
Brand: Hellma USA INC
Availability: InStock

Description

The all-quartz flow-through cuvette is a high-precision cell for applications in spectroscopy. New technology enables the positioning of precise internal threads into the quartz glass. Tubes can now be connected very easily and securely directly to the cuvette.

The second path length is available by simply turning the cuvette through 90° – all tubes remain screwed in place. Time consuming changing of the cuvette is no longer necessary. Two different path lengths have a beneficial effect to the costs and the application. Furthermore, it is possible to measure the fluorescence with each optical path length – another benefit.

Specifications

Window Material:	Quartz glass high performance (QS)
Wavelength Range:	200 – 2500 nm
Width:	12.5 mm
Depth:	12.5 mm
Height:	45 mm
Light Path:	10 mm
Max Temperature:	Not Specified
Fiber Optic Cable:	None

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

No liquid leakage, monolithic quartz glass construction prevents this by design
Suitable for high and low temperatures
Fully autoclavable
Secure tube connection is ensured due to the innovative quartz glass internal threads

Applications

Spectroscopy
Chemistry Labs
Laser spectroscopy

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Ships from:

United States

Sold by:

Hellma USA INC

On FindLight:

since 2016

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the Fluorescence Cells For Magnetic Stirrers 109.000F-QS used for?

The Fluorescence Cells For Magnetic Stirrers 109.000F-QS is used for applications in spectroscopy, chemistry labs, and laser spectroscopy.

What are the benefits of using the Fluorescence Cells For Magnetic Stirrers 109.000F-QS?

The Fluorescence Cells For Magnetic Stirrers 109.000F-QS has two different path lengths which have a beneficial effect on the costs and the application. It is also possible to measure the fluorescence with each optical path length.

Is the Fluorescence Cells For Magnetic Stirrers 109.000F-QS easy to use?

Yes, the new technology enables the positioning of precise internal threads into the quartz glass, making it very easy and secure to connect tubes directly to the cuvette. Turning the cuvette through 90° allows for a second path length, and all tubes remain screwed in place.

Is the Fluorescence Cells For Magnetic Stirrers 109.000F-QS durable?

Yes, the Fluorescence Cells For Magnetic Stirrers 109.000F-QS is made of monolithic quartz glass construction which prevents liquid leakage and is suitable for high and low temperatures. It is also fully autoclavable.

What is the innovative feature of the Fluorescence Cells For Magnetic Stirrers 109.000F-QS?

The innovative feature of the Fluorescence Cells For Magnetic Stirrers 109.000F-QS is the quartz glass internal threads which ensure a secure tube connection.
