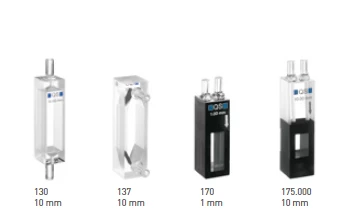

CELLS FOR FLOW-THROUGH MEASUREMENTS 130-QS
Description
Hellma Analytics produces a wide range of cuvettes for use in spectroscopy and cytometry with optical path lengths spanning 0.01 mm to 100 mm and above. Thanks to their stability, maximum precision and reliability when used for absorbance and fluorescence measurements, Hellma cuvettes work exceptionally well in a wide range of areas in the lab.
With a surface flatness of 1 μm, our quartz windows set a benchmark in cuvette production. What’s more, the function-optimized design with beveled edges and corners protects against the risk of damage caused by splitting and assists users in their daily work. On request, we are able to produce custom models designed for specific areas of application.
CELLS FOR FLOW-THROUGH MEASUREMENTS 130-QS
Specifications |
|
|---|---|
| Window Material: | Quartz glass high performance (QS) |
| Wavelength Range: | 200-2500nm |
| Width: | 12.5 mm |
| Depth: | 12.5 mm |
| Height: | 45 mm |
| Light Path: | 10 mm |
| Max Temperature: | -- degC |
| Fiber Optic Cable: | None |
Features
- Extremely high parallelism of the windows with a maximum tolerance of ± 0.01 mm
- Exceptional optical path length accuracy down to 0.003 mm (3 μm) for high dimensional accuracy and reproducible measurements results
- Unique surface flatness of the optical windows of 0.001 mm (1 μm)
- Very high temperature stability and chemical resistance due to thermal bonding of individual components (effectively monolithic)
- Guaranteed transmission of at least 85% from 200 nm to 3500 nm depending on the material
Applications
- Spectroscopy
- Chemistry Labs
- Laser spectroscopy
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Hellma Analytics produces cuvettes with optical path lengths ranging from 0.01 mm to 100 mm and above.
The quartz windows in Hellma cuvettes have a surface flatness of 1 μm, which sets a benchmark in cuvette production.
Yes, Hellma Analytics can produce custom models of cuvettes designed for specific areas of application upon request.
Hellma cuvettes have a guaranteed transmission of at least 85% from 200 nm to 3500 nm depending on the material.
The windows in Hellma cuvettes have an extremely high parallelism with a maximum tolerance of ± 0.01 mm.
