Description

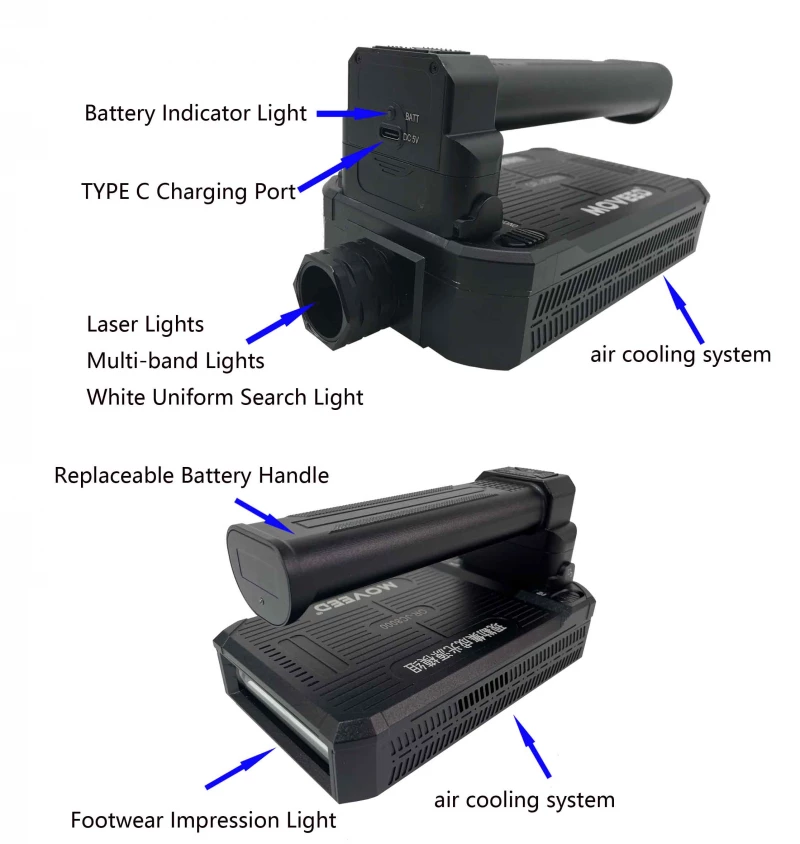

The ALL-IN-ONE Forensic Light Source System OR-GJC8000 is an essential tool for forensic professionals, designed to streamline crime scene investigations and forensic laboratory work. This advanced system integrates multiple light sources, including Laser Lights, Multi-band Lights, Footwear Impression Oblique Light, and White Uniform Search Light, into one compact and portable unit. Each light source is engineered to reveal and enhance contrast evidence, ensuring that forensic examiners can detect and document critical evidence with precision and clarity.

The OR-GJC8000 features laser lights with wavelengths of 530nm (2W), 445nm (3W), and CSS0 (4W), providing powerful illumination for various investigative needs. The multi-band lights include white light (10W), UV 365nm (10W), and UV 395nm (8W), offering versatile options for detecting different types of evidence. The footwear impression light, with a power of 40W, delivers an oblique light beam that is ideal for identifying surface debris and shoe/tire prints.

This all-in-one system is designed for ease of use and portability, making it an invaluable asset in the field and the lab. The light source intensity is adjustable, allowing forensic examiners to customize the illumination based on the specific requirements of their investigation. Whether conducting a general search, detecting body fluids, identifying fingerprints, or tracing physical evidence like hairs and fibers, the OR-GJC8000 provides the reliable performance needed for thorough and accurate forensic analysis.

With its robust construction and high-quality components, the OR-GJC8000 is built to withstand the demands of forensic work, ensuring durability and long-lasting service. It is an ideal choice for professionals seeking a comprehensive and versatile forensic light source system that can handle a wide range of investigative tasks.

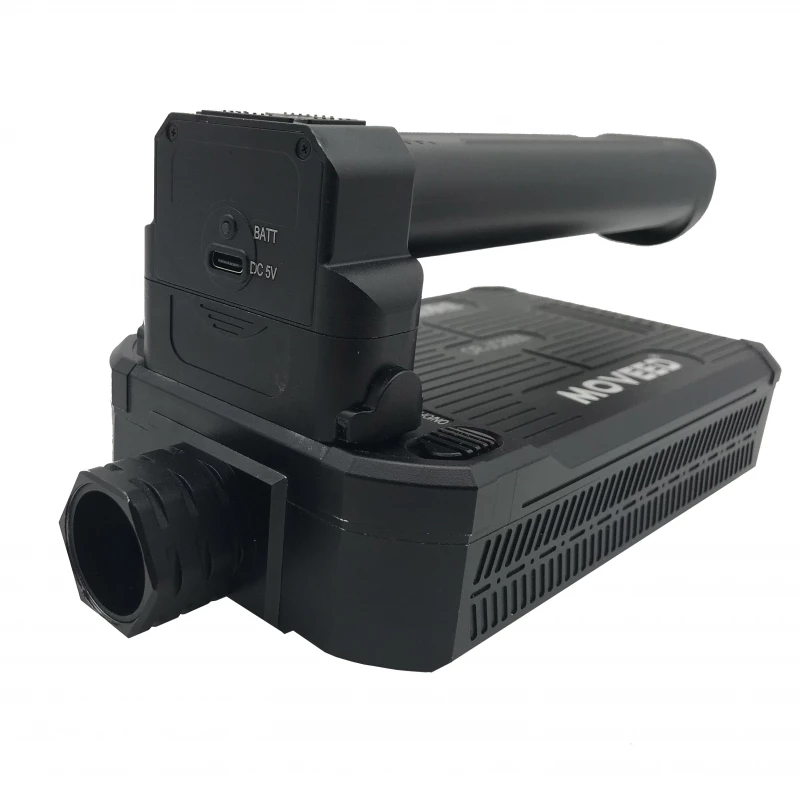

ALL-IN-ONE Forensic Light Source System OR-GJC8000

Visit the Hangzhou Hengli Electronic Tech. Co. LTD Store

Specifications

Solution Type: Illumination & Detection
Illumination Source: Laser
Detection Technique: Imaging, Fluorescence, DNA Detection, UV Illumination & Detection
Battery Operation: Available
Laser Lights (Luminous Power): 530nm (2W); 445nm (3W); CSS0 (4W)
Multi-band Lights (Power): White light (10W); UV 365nm (10W); UV 395nm (8W)
Footwear Impression Light (Power): 40 W
Light Source Intensity: Adjustable
Design: Integrated design for multiple forensic applications

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Multifunctional tool for crime scene and forensic laboratory use
  • Integrated design with Laser Lights, Multi-band Lights, Footwear Impression Oblique
  • Light, and White Uniform Search Light
  • Uniform light beams for enhanced evidence detection
  • Oblique light beam for detecting surface debris and shoe/tire prints
  • Adjustable light source intensity for customized investigations
  • Compact and easy-to-use all-in-one equipment

Applications

  • General searches at crime scenes
  • Detection of body fluids (semen, saliva, etc.)
  • Identification of fingerprints
  • Tracing physical evidence such as hairs and fibers
  • Detecting footwear and tire impressions

Frequently Asked Questions

What is the OR-GJC8000 used for?
The OR-GJC8000 is designed for forensic investigations both at crime scenes and in forensic laboratories. It integrates multiple light sources to reveal and enhance contrast evidence, such as body fluids, fingerprints, hair, fibers, and footwear/tire impressions.
What light sources are included in the OR-GJC8000?
The OR-GJC8000 includes Laser Lights, Multi-band Lights, Footwear Impression Oblique Light, and White Uniform Search Light. It offers wavelengths of 530nm, 445nm, and CSS0 for laser lights; white light, UV 365nm, and UV 395nm for multi-band lights; and a 40W footwear impression light.
How does the OR-GJC8000 enhance evidence detection?
The OR-GJC8000 uses uniform light beams to illuminate evidence clearly. The oblique light beam of the footwear impression light helps detect surface debris and shoe/tire prints, while the adjustable intensity allows for customized illumination based on the specific investigative needs.
Is the light source intensity adjustable?
Yes, the light source intensity on the OR-GJC8000 is adjustable, allowing users to customize the illumination for different types of evidence and investigative conditions.
What types of evidence can the OR-GJC8000 detect?
The OR-GJC8000 can detect a variety of evidence types, including body fluids (such as semen and saliva), fingerprints, hairs, fibers, and footwear/tire impressions. It is designed to enhance contrast and reveal details that might be missed with standard lighting.
Is the OR-GJC8000 portable?
Yes, the OR-GJC8000 is designed to be portable and easy to use in the field and in the lab. Its integrated design allows for all essential light sources to be carried in one compact unit.
What makes the OR-GJC8000 unique compared to other forensic light sources?
The OR-GJC8000 stands out due to its all-in-one design, integrating multiple light sources into a single unit. This multifunctional capability, combined with adjustable intensity and uniform light beams, makes it an exceptionally versatile tool for forensic professionals.
What is included in the OR-GJC8000 package?
The OR-GJC8000 package includes the light source unit, a special charger, three sets of goggles (white, orange, red), an aluminum alloy carrying case, and an instruction manual.
How durable is the OR-GJC8000?
The OR-GJC8000 is constructed with high-quality components to withstand the demands of forensic work. It is designed for durability and long-lasting service, ensuring reliable performance in various investigative conditions.

Got more questions? Use the inquiry form to ask the supplier directly.
