Description

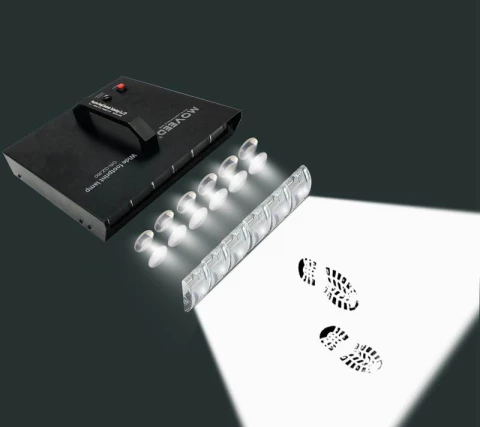

The Crime Scene Wide Footprint Detection Light OR-GZJ60 is a state-of-the-art forensic illumination tool, specifically designed to enhance the visibility of critical evidence at crime scenes. With a powerful output of ≥60W, this light uses low-angle, oblique lighting to make footwear impressions, fibers, and other subtle traces of evidence visible to investigators. This capability is crucial in solving crimes such as burglary, assault, robbery, rape, and homicide, where establishing the presence and movements of suspects is vital.

The OR-GZJ60 is constructed from durable aluminum alloy, ensuring robustness and longevity, while its efficient air cooling system maintains optimal operating temperatures. The light is available in two models: OR-GZJ60A, which offers a non-dimmable light without filters, and OR-GZJ60B, which includes adjustable light intensity and filters in red, green, and blue. Both models feature a compact design with dimensions of 24524050mm and a net weight of ≥3.2kg, making them portable and easy to handle at crime scenes.

Powered by a high-capacity polymer lithium-ion battery, the OR-GZJ60 provides reliable operation with a working time of ≥1 hour on a single charge and a quick recharge time of just 3 hours. The light's beam size and intensity are designed to cover large areas, with a projection angle of 10 degrees, ensuring thorough illumination of the scene. Whether used for detecting footwear impressions or examining trace evidence, the OR-GZJ60 is an indispensable tool for forensic professionals.

Crime Scene Wide Footprint Detection Light OR-GZJ60

Specifications

Solution Type: Illumination Only
Illumination Source: LED
Detection Technique: Not Applicable
Battery Operation: Available
Power: ≥60 W
Voltage: 12.6 V
Battery Type: Polymer lithium-ion battery, 9Ah
Charging Current: 4 A
Charging Time: 3 hrs
Working Current And Voltage: 5.6A@12V
Working Temperature: Normal temperature
Light Spot Uniformity: 80 %
Rated Working Time: ≥1 hour
Light Beam Size At 0.5m: Length: 65cm, Height: 8cm, Illumination: ≥70000Lux
Light Beam Size At 1m: Length: 110cm, Height: 15cm, Illumination: ≥18000Lux
Projection Angle: 10 degrees
Shell: Aluminum alloy
Heat Dissipation: Air cooling, housing temperature rising ≤15℃

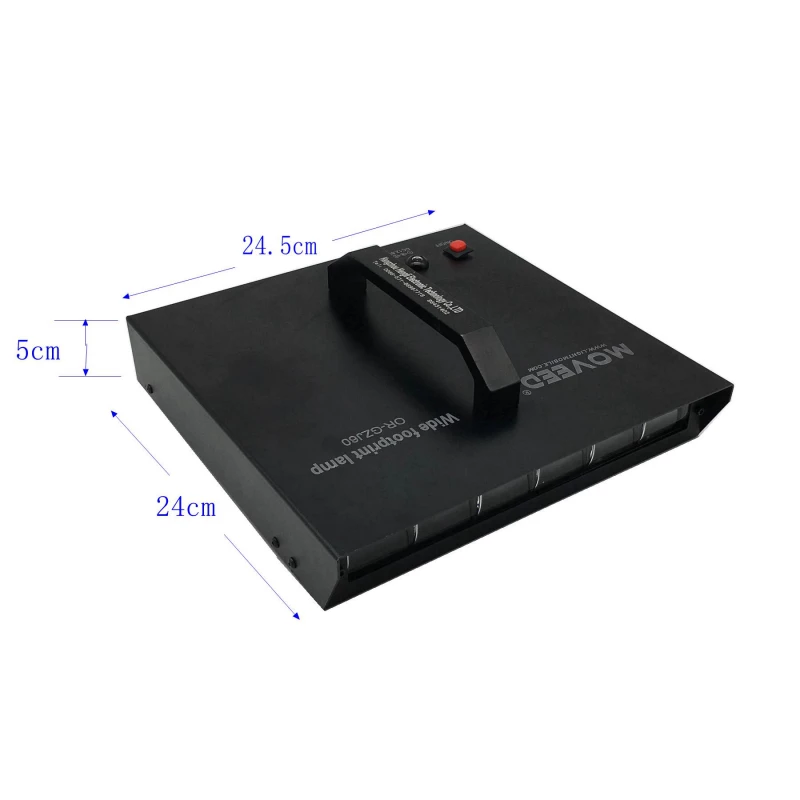

External Dimension: 245x240x50 mm
Net Weight: ≥3.2 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Power Output: Delivers a power output of ≥60W for strong illumination
  • Oblique Lighting: Provides low-angle lighting to highlight footwear impressions and other evidence
  • Adjustable Light Modes: Available in two models, with options for filters and adjustable light intensity
  • Durable Construction: Made from aluminum alloy for durability and efficient heat dissipation
  • Portable Design: Compact dimensions and lightweight build for easy transport and setup
  • Efficient Battery: Equipped with a polymer lithium-ion battery offering ≥1 hour of working time and fast charging in 3 hours

Applications

  • Footwear Impression Detection: Enhances visibility of footwear impressions at crime scenes
  • Trace Evidence Examination: Reveals fibers and other trace evidence crucial for investigations
  • Crime Scene Investigation: Provides vital lighting for examining burglary, assault, robbery, rape, and homicide scenes
  • Forensic Analysis: Assists in gathering evidence about suspects' movements and presence at crime scenes

Frequently Asked Questions

What is the primary use of the Crime Scene Wide Footprint Detection Light OR-GZJ60?
The OR-GZJ60 is designed to enhance visibility of critical evidence at crime scenes, specifically focusing on footwear impressions, fibers, and other trace evidence. It is used in forensic investigations to provide detailed illumination for examining crime scenes.
How does the OR-GZJ60 improve evidence detection at crime scenes?
The OR-GZJ60 uses low-angle, oblique lighting to highlight footwear impressions and other subtle evidence that might be missed under regular lighting conditions. This specialized illumination makes it easier for investigators to detect and analyze crucial details.
How long does the battery last on a single charge?
The OR-GZJ60 provides a working time of ≥1 hour on a single charge. The battery is a high-capacity polymer lithium-ion battery, ensuring reliable performance during forensic investigations.
How long does it take to charge the OR-GZJ60?
The charging time for the OR-GZJ60 is approximately 3 hours. It uses a charging current of 4A for efficient and quick recharging.
Is the OR-GZJ60 portable?
Yes, the OR-GZJ60 is designed to be portable. It has compact dimensions (24524050mm) and a net weight of ≥3.2kg, making it easy to transport and handle at crime scenes.
What is the power output and voltage of the OR-GZJ60?
The OR-GZJ60 has a power output of ≥60W and operates at a voltage of 12.6V. This ensures strong and effective illumination for detailed forensic analysis.
How does the OR-GZJ60 manage heat dissipation?
The OR-GZJ60 features an air-cooling system that keeps the housing temperature rise to ≤15℃. This efficient heat dissipation ensures the device remains cool and operates optimally during use.
What materials are used in the construction of the OR-GZJ60?
The OR-GZJ60 is constructed from durable aluminum alloy. This robust material ensures the device can withstand the demands of field use and provides long-lasting performance.

Got more questions? Use the inquiry form to ask the supplier directly.
