Description

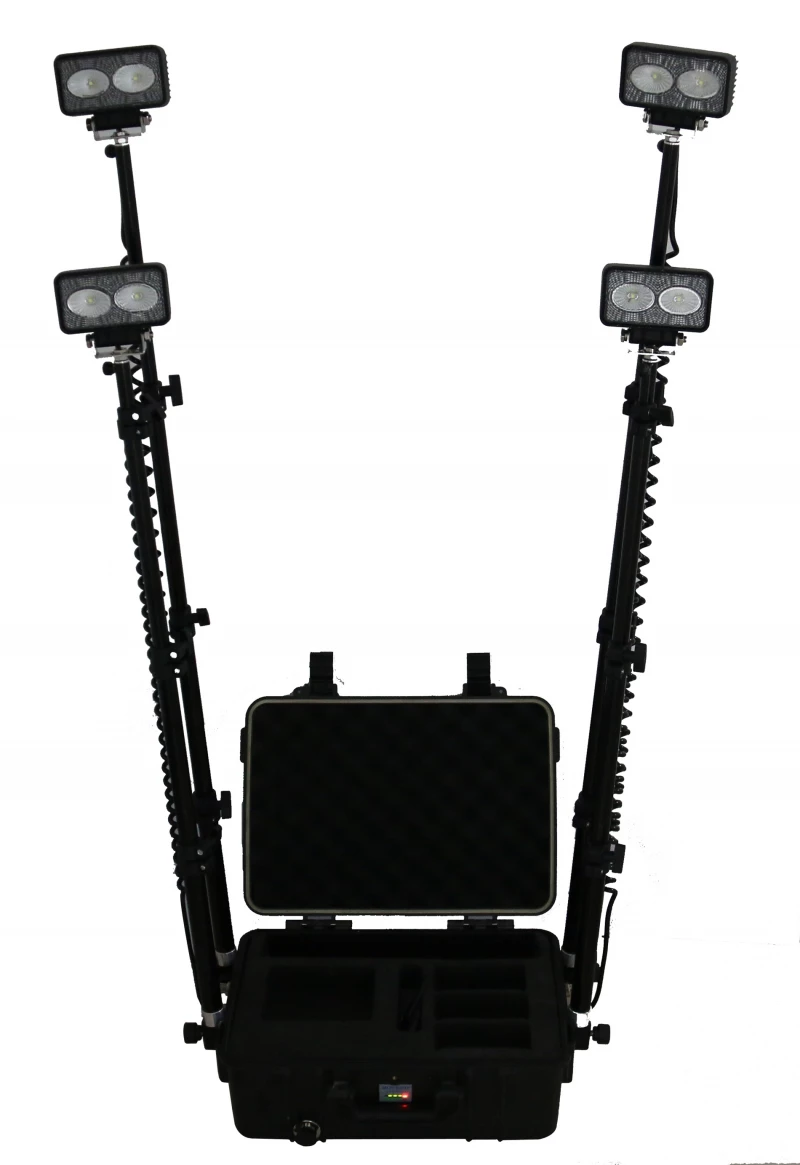

The OR-GXL80 Li-ion Portable Remote Area Lighting System is an advanced and versatile lighting solution designed for optimal performance in demanding environments. This system features four high-brightness LED light heads, each crafted with an aviation-grade aluminum alloy shell to ensure exceptional durability and heat dissipation. The hidden type sealing rings and robust suitcase construction make the OR-GXL80 waterproof, compression-resistant, and shockproof, ensuring reliable operation in harsh conditions.

This lighting system is equipped with an intelligent power display, offering real-time updates on the current battery capacity. The display turns red to indicate when charging is necessary, ensuring you are never left in the dark unexpectedly. The adjustable light mast, with its convenient hand screws, allows for precise control over the LED lighting direction, making it adaptable to various scenarios.

Operating the OR-GXL80 is straightforward with a simple button press system that cycles through three light intensity levels: LOW, MIDDLE, and HIGH, before turning off. This flexibility allows you to adjust the lighting to suit different tasks and environments. With a maximum light device height of 1.2 meters, the OR-GXL80 provides ample coverage and visibility.

The system is powered by a reliable lithium battery with a voltage of 28Ah, ensuring long-lasting performance. The total power output is 80W, with each light head consuming 20W. The luminous flux ranges from 1200 lumens on low to 5500 lumens on high, providing powerful illumination for extended periods. The system boasts an impressive working time of at least 16 hours at total power, making it ideal for prolonged use in remote areas.

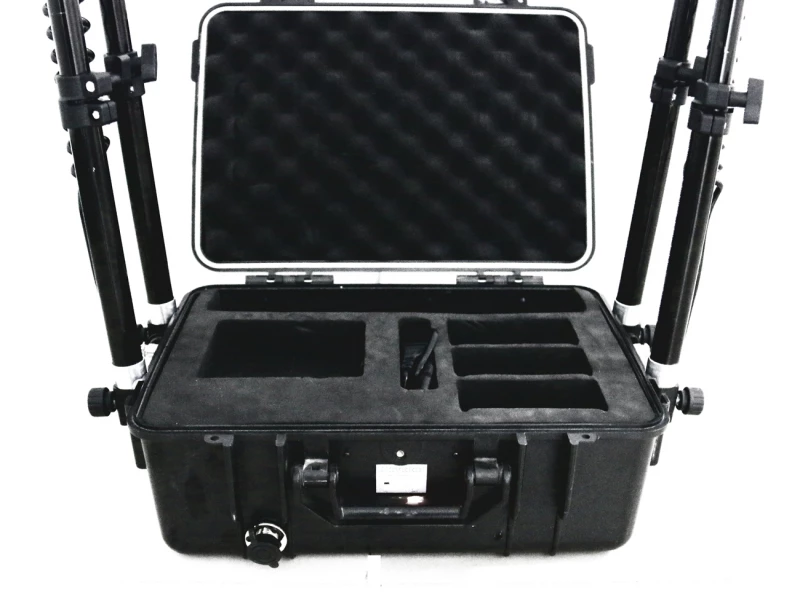

The OR-GXL80 is compact and portable, with a suitcase size of L425W325H168mm and a total weight of just 9.5kg. This makes it easy to transport and deploy, whether for crime scene investigations, emergency responses, outdoor activities, or any other situation requiring reliable, high-quality lighting.

Li-ion Portable Remote Area Lighting System OR-GXL80

Specifications

Solution Type: Illumination Only
Illumination Source: LED
Detection Technique: Not Applicable
Battery Operation: Available
Light Device Height: ≥1.2 m
Total Power: 80 W
Power Per Light Head: 20 W
Luminous Flux (High/Middle/Low): 5500/2600/1200 Lm
Battery Voltage: 28 Ah
Battery Type: Lithium Battery
Charger: DC12V/3A
Working Time: ≥16H at total power
Suitcase Size: L425 x W325 x H168 mm
Weight: 9.5 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Four-part LED output with high-brightness LED light source
  • Aviation aluminum alloy light head shell with hidden sealing ring
  • Waterproof, compression-resistant, and shockproof suitcase design
  • Intelligent power display for real-time battery capacity updates
  • Adjustable LED lighting direction with hand screws on the light mast
  • Three light intensity levels (LOW-MIDDLE-HIGH)
  • Compact and portable with a lightweight suitcase design
  • Long working time of at least 16 hours at total power

Applications

  • Crime Scene Investigations
  • Emergency Responses
  • Outdoor Activities
  • Remote Area Lighting
  • Search and Rescue Operations
  • Industrial and Construction Sites

Frequently Asked Questions

What are the primary features of the OR-GXL80 Li-ion Portable Remote Area Lighting System?
The OR-GXL80 features four high-brightness LED light heads with aviation-grade aluminum alloy shells, making them durable and efficient. It has a waterproof, compression-resistant, and shockproof suitcase design. The system includes an intelligent power display for real-time battery status, adjustable LED lighting direction, and three light intensity levels (LOW, MIDDLE, HIGH).
How do I operate the lighting system?
To operate the lighting system, turn on the device and press the button continuously. The light intensity will cycle through LOW, MIDDLE, HIGH, and OFF.
What is the maximum height of the light device?
The maximum height of the light device is 1.2 meters, providing ample coverage and visibility.
What is the total power output and luminous flux of the OR-GXL80?
The total power output of the OR-GXL80 is 80W, with each light head consuming 20W. The luminous flux ranges from 1200 lumens on low to 5500 lumens on high.
How long does the battery last on a full charge?
The lithium battery of the OR-GXL80 has a voltage of 28Ah and provides a working time of at least 16 hours at total power.
How do I know when to charge the battery?
The OR-GXL80 is equipped with an intelligent power display that shows the current battery capacity status in real-time. When the display turns red, it indicates that the battery needs to be charged.
What are the dimensions and weight of the lighting system?
The suitcase size of the OR-GXL80 is L425W325H168mm, and the total weight is 9.5kg, making it compact and portable.
What type of environments is this lighting system suitable for?
The OR-GXL80 is suitable for various environments, including crime scene investigations, emergency responses, outdoor activities, remote area lighting, search and rescue operations, and industrial and construction sites.
Can the lighting direction be adjusted?
Yes, the LED lighting direction can be adjusted using the hand screws on the light mast, allowing for precise control over the illumination.

Got more questions? Use the inquiry form to ask the supplier directly.
