LDTLS Laser-Driven Tunable Light Source
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Description

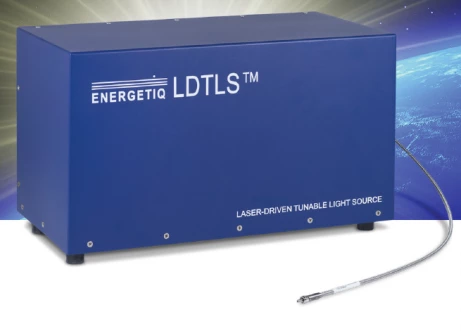

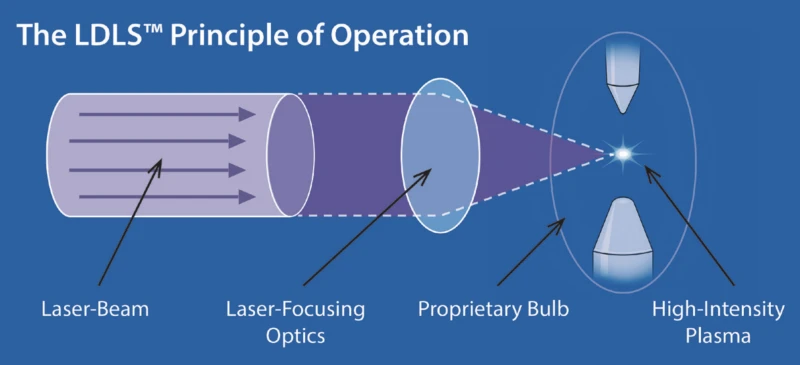

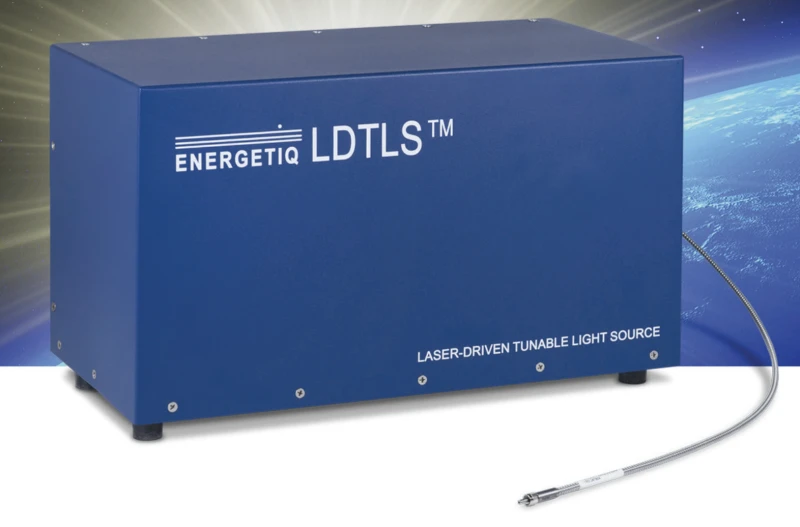

The Laser-Driven Tunable Light Source (LDTLS™) is a cutting-edge, compact, and fully integrated tunable broadband light source. It is built on the robust Laser-Driven Light Source (LDLS™) technology, renowned for its exceptional brightness and output flux. This innovative light source is engineered to provide the highest output flux in the industry, ensuring higher throughput and efficiency in various applications.
One of the standout features of the LDTLS™ is its impressive longevity, offering a long lifetime of approximately 9000 hours between bulb changes. This significantly reduces the cost of ownership and maintenance, making it a cost-effective solution for long-term use. The system is designed for high stability and low noise, crucial for precise and accurate measurements in scientific and industrial applications.
The LDTLS™ is equipped with a high-performance monochromator that allows for fast wavelength tuning, reaching speeds of up to 200nm per second. This rapid tuning capability enables faster measurements, enhancing productivity and efficiency. The fiber-coupled output of the system is both flexible and convenient, allowing for precise delivery of wavelength-selected light to the desired location, making it an adaptable solution for a wide range of applications.
Energetiq Technology, Inc., the developer of the LDTLS™, combines its expertise in high-power plasma physics with extensive experience in creating durable industrial and scientific products. This results in a reliable and high-performance light source that meets the demands of modern scientific research and industrial applications.
LDTLS Laser-Driven Tunable Light Source
Specifications |
|
|---|---|
| Spectral Output: | 300 – 1100 nm |
| Numerical Aperture: | 0.39 |
| Typical Bulb Life: | >9000 hrs |
Features
- Highest Output Flux in the Industry: Achieve higher throughput with the most powerful output available.
- Long Lifetime: Enjoy approximately 9000 hours between bulb changes, reducing the cost of ownership.
- Low Noise and High Stability: Ensure precise measurements with minimal interference.
- Fast Wavelength Tuning: Tune wavelengths up to 200nm per second for quicker measurements.
- Convenient Optical Fiber Output: Easily integrate into a variety of applications with fiber optic convenience.
- Achromatic Reflective Coupling Optics: Experience aberration-free radiation collection and focusing.
- Etendue-Matched Monochromator: Benefit from high efficiency optical design for maximum light throughput.
Applications
- Optical Sensor Testing: Provides stable, tunable illumination for sensor characterization and calibration.
- Process Monitoring and Control: Enables precise wavelength selection for inline monitoring applications.
- VIS/NIR Spectroscopy: Delivers high brightness and spectral stability for analytical spectroscopy.
- Scientific Research: Ideal for fundamental studies requiring tunable, broadband light.
- Thin-Film Measurements: Supports accurate optical characterization of thin films and coatings.
- Materials Characterization: Facilitates precise optical property measurements across diverse materials.
Frequently Asked Questions
The LDTLS™ is a compact, fully integrated and highly stable tunable broadband light source that utilizes the EQ-77 LDLS™ broadband source and features the highest brightness and output flux available in a tunable broadband light source.
The LDTLS™ offers an extremely long lifetime of ~9000 hours between bulb changes for low cost of ownership.
The LDTLS™ can be used for optical sensor testing, process monitoring and control, VIS/NIR spectroscopy, scientific research, thin-film measurements, and materials characterization.
The spectral resolution can be customized for application specific purposes and ranges in bandwidth from 1nm to 10nm.

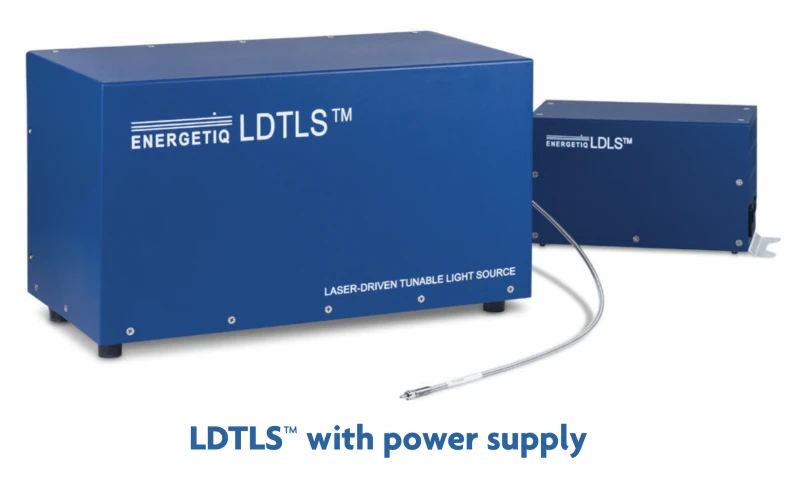

The LDTLS™ system dimensions are 266mm x 432mm x 222mm and it weighs 16.6 kg (36.5 lb). The power supply dimensions are 152mm x 250mm x 132mm and it weighs 2.9 kg (6.5 lb). The electrical requirement is 100-240 VAC, 50/60Hz and the cooling water requirement is 1.0 liter/min (.27 gal/min).
