EQ-77 Broadband Laser-Driven Source

Energetiq
REQUEST QUOTE

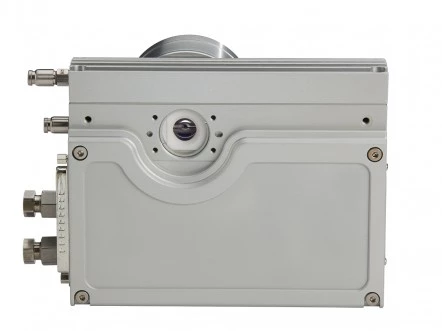

EQ-77 Broadband Laser-Driven Source

OVERVIEW

Based on the highly successful Laser-Driven Light Source
(LDLS) technology, the EQ-77 offers the highest radiance and irradiance available in a truly broadband white light source.



The EQ-77 features a compact lamp house, with clean construction that ensures long life and ultimate stability. With a 170nm-2100nm wavelength range and a single-beam output with retro-reflector, the EQ-77 is flexible for a broad variety of applications.

SPECIFICATION

  • Spectral Output: 170 - 2100 nm
  • Numerical Aperture: Up to .50
  • Typical Bulb Life: >9000 hrs
Download Data Sheet

Applications

Semiconductor Metrology & Inspection
Monochromator Source
UV-Vis-NIR Spectroscopy
Photoemission Electron Microscopy (PEEM)
Materials Characterization
Advanced Imaging
Thin Film Measurements

KEY FEATURES

Radiance >40mW/mm².sr.nm (wavelength dependent)
Fastest measurements
Very low noise and excellent spatial stability
Precise & repeatable results
Dual beam output or higher-output Single-beam
(using integrated Retro-reflector) for flexibility
Compact lamphouse with water-cooling and clean construction
Long life and stability
Extreme high brightness across broad spectrum
UV-Vis-NIR (170nm – 2100nm)
Electrodeless operation
Long life and low cost of ownership
Electronic optical output control
Light attenuation
