EQ-400 LDLS Broadband Laser-Driven Light Source
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Description

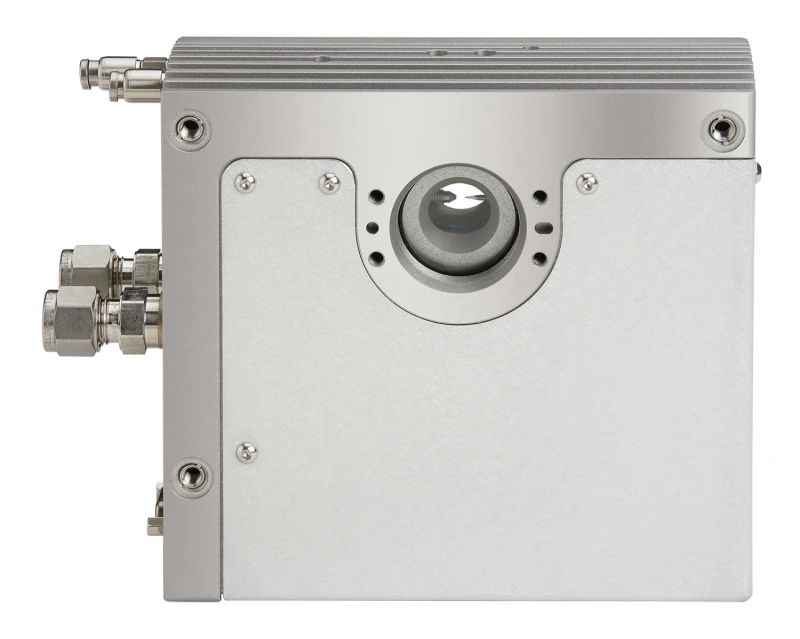

The EQ-400 LDLS™ is a state-of-the-art, high-brightness, long-life, broadband laser-driven light source that sets a new standard in the field of optical technology. This advanced light source is designed to deliver the highest radiance and irradiance available in a truly broadband white light source, making it an ideal choice for researchers and professionals in various scientific disciplines. The EQ-400 features a compact lamp house with clean construction, ensuring longevity and ultimate stability across its operational life.
With an impressive wavelength range of 170nm to 2100nm, the EQ-400 offers unparalleled flexibility for a broad variety of applications. It provides users with the option of a dual-beam output or a single-beam output with a retro-reflector, catering to diverse optical needs. This flexibility is crucial for applications that require extreme high brightness and power across a broad wavelength range, such as imaging and analytical spectroscopy in life sciences and materials sciences.
Traditional light sources often rely on multiple lamps, such as Tungsten/Halogen, Xenon-arc, and Deuterium, to cover a wide spectral range. However, these solutions can be costly, optically inefficient, and limited by the use of electrodes, which reduce brightness and power. The EQ-400 addresses these challenges by employing the revolutionary LDLS™ technology, which eliminates electrodes and provides a relatively flat spectrum with extreme brightness from UV through visible and beyond. This technology not only extends the operational life of the light source but also ensures consistent performance without the frequent need for lamp changes.
The EQ-400 is a product of Energetiq Technology, Inc., renowned for its innovative approach to light source technology. This compact, continuous wave (CW) broadband source is specifically designed for critical spectroscopic and imaging applications, offering a reliable and efficient solution for researchers seeking high-performance light sources. With multiple patents worldwide, the LDLS™ technology embodied in the EQ-400 represents a significant advancement in the field, promising enhanced performance and reduced operational costs.
EQ-400 LDLS Broadband Laser-Driven Light Source
Specifications |
|
|---|---|
| Spectral Output: | 170 – 2100 nm |
| Numerical Aperture: | 0.5 |
| Typical Bulb Life: | >9000 hrs |
Features
- Radiance >100mW/mm².sr.nm (wavelength dependent): Ensures the fastest measurements.
- Very Low Noise and Excellent Spatial Stability: Provides precise and repeatable results.
- Dual Beam Output or Higher-Output Single-Beam: Offers optical flexibility with an integrated retro-reflector.
- Compact Lamphouse with Water-Cooling: Ensures long life and stability with clean construction.
- Extreme High Brightness Across Broad Spectrum: Covers UV-Vis-NIR (170nm – 2100nm) wavelengths.
- Electrodeless Operation: Offers long life and low cost of ownership.
Applications
- Semiconductor Metrology & Inspection: Enables high-precision wafer and mask analysis with broadband illumination.
- UV-Vis-NIR Spectroscopy: Ideal for analytical and research spectroscopy requiring extreme brightness.
- Photoemission Electron Microscopy (PEEM): Provides stable high-brightness illumination for advanced imaging techniques.
- Thin Film Measurements: Supports accurate characterization of thin films across the UV to NIR range.
- Materials Characterization: Facilitates detailed optical analysis of materials properties.
- Advanced Imaging: Suitable for imaging applications demanding high power and stable broadband light output.
Frequently Asked Questions
The EQ-400 LDLS Broadband Laser-Driven Light Source has a wavelength range of 170nm-2100nm.
The EQ-400 LDLS Broadband Laser-Driven Light Source has a radiance of >100mW/mm².sr.nm (wavelength dependent).
The EQ-400 LDLS Broadband Laser-Driven Light Source can be used in Semiconductor Metrology & Inspection, Monochromator Source, UV-Vis-NIR Spectroscopy, Photoemission Electron Microscopy (PEEM), Materials Characterization, Advanced Imaging, and Thin Film Measurements.
The EQ-400 LDLS Broadband Laser-Driven Light Source has an electrodeless operation, which means it has a long life and low cost of ownership.
The EQ-400 LDLS Broadband Laser-Driven Light Source has a dual-beam output or a single-beam output with retro-reflector for optical flexibility.
