Description
Right-angle prisms - retroreflectors are versatile optical elements that can function as internal or external reflectors or retro-reflectors. They are often preferred over inclined mirrors in applications involving severe acoustic or inertial loads due to their easier mounting and minimal deformation under external mechanical stress.
These prisms can work as retro-reflectors, turning beams back to their original direction. Various dielectric coatings can be applied to these prisms based on specific requirements.
14RPR-5-1 Right-Angle Prisms - Retroreflectors

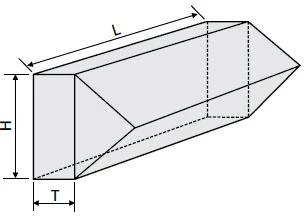

Specifications
Type And Material: | BK7 |
---|---|
Length: | 35 mm |
Diameter: | Not Specified |
Height: | 10 mm |
Thickness: | 5 mm |
Mounting: | Unmounted |
Dimension Tolerances: | +0.0, -0.2 mm |
Surface Quality: | 40-20 scratch & dig |
Clear Aperture: | 80% of the face size |
Flatness: | λ/4 @ 632.8 nm |
Features
- Can function as internal or external reflectors or retro-reflectors
- Suitable for applications involving severe acoustic or inertial loads
- Easier to mount and deform less than inclined mirrors under mechanical stress
- Working as retro-reflectors, turning beams back to the original direction
- Clear aperture of 80% of the face size
- Available in BK7 material with different dimensions
- Coatings: None (Please refer to the Coatings Section for additional options)
Applications
- Laser-based optical systems and experiments
- Range finding and laser communication
- Surveying and metrology
- LIDAR (Light Detection and Ranging) systems
- Target detection and tracking
- Optical alignment and beam control
Frequently Asked Questions
What are retroreflector prisms used for?
Retroreflector prisms are used as internal or external reflectors or as retro-reflectors.
What are the advantages of using right-angle prisms as retroreflectors?
Right-angle prisms are easier to mount and deform much less than mirrors in response to external mechanical stress.
What are the dimensions of the 14RPR-5-1 retroreflector prism?
The dimensions of the 14RPR-5-1 retroreflector prism are not specified in the product description.
What is the angle tolerance for the 14RPR right-angle prisms?
The angle tolerance for the 14RPR right-angle prisms is ±2 arcmin for the general type and ±5 arcsec for the precision type.
Are coatings available for the retroreflector prisms?
Yes, various dielectric coatings can be deposited upon request.
