Description
Dispersing Prisms are optical components used for wavelength separation applications. These prisms separate light by wavelength through double refraction. When a light ray passes through the prism, it is twice refracted, and the deviation is dependent on the refractive index, which is wavelength dependent.
The prisms are available in various materials, and dielectric coatings can be applied upon request to enhance their performance for specific applications.
14DP-1-1 - Dispersing Prisms
Specifications
| Material: | BK7, UVFS, IRFS |
|---|---|

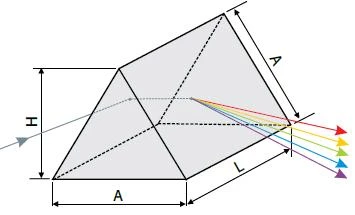

| Dimensions (A): | 12.5 mm |
| Dimensions (L): | 12.5 mm |
| Design Wavelength: | Not Specified |
| Surface Quality: | 40-20 scratch & dig |
| Flatness: | λ/4 @ 633 nm |
| Angle Tolerance: | ±2 arcmin |
| Thickness: | 10 mm |
| Side Length: | 15 mm |
Download Data Sheet
Features
- Wavelength separation through double refraction
- Dielectric coatings available upon request
- Available in different materials for versatility
Applications
- Spectroscopy and wavelength analysis
- Optical instrumentation for color separation
- Laser systems requiring wavelength selection
- Scientific research involving light dispersion
- Fiber optic communication and wavelength management
Frequently Asked Questions
What are dispersing prisms used for?
Dispersing prisms are used for wavelength separation applications.
How does a light ray pass through a dispersing prism?
A light ray is twice refracted passing through the prism.
What is the deviation of a dispersing prism a function of?
The deviation of a dispersing prism is a function of refractive index, and hence wavelength.
What are some applications of dispersing prisms?
Some applications of dispersing prisms include wavelength separation, pulse stretching/compression, time delay, and beam deflection.
Can various dielectric coatings be deposited upon request for dispersing prisms?
Yes, various dielectric coatings can be deposited upon request for dispersing prisms.
