Precision Optical Flat 4542-0014
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Discover the unparalleled precision and quality of our Fused Silica Precision Optical Flats, expertly crafted to serve as the ultimate reference for determining the flatness of unknown surfaces. These optical components are essential tools in various optical applications, offering exceptional accuracy and reliability. Our optical flats are available in both single-sided and double-sided configurations, providing flexibility to meet your specific needs.
Crafted from high-quality Fused Silica, our precision optical flats boast a flatness specification of λ/10 or λ/20, ensuring superior performance. For less demanding applications, we also offer optical flats made from BK7 material, with a flatness of λ/4 or better. These optical flats are not only functional but also versatile, as they can be used as windows in various optical setups.
Our optical flats are available in a range of diameters from 25mm to 200mm, with precise ground and polished surfaces to ensure optimal performance. The attention to detail in the manufacturing process guarantees that each optical flat meets the highest standards of quality and precision. Whether you require single or dual surface optical flats, our products are designed to deliver exceptional results every time.
At Tower Optical, we understand that quality is not just a feature—it's a necessity. Our commitment to excellence ensures that you receive optical components that are not only cost-effective but also invaluable in achieving precise measurements and results. For custom requirements, we offer tailored solutions to meet your specific needs, ensuring that you receive the perfect optical flat for your application.
Precision Optical Flat 4542-0014
Specifications |
|
|---|---|
| Diameter: | 150 mm |
| Thickness: | 25 mm |
| Substrate: | Fused Silica |
| Flatness: | lambda/10 |
| Single Or Dual Surface: | Single |
| Ref. Index: | 1.458 |
| Abbe Number: | 67.7 |
| Exp. Coefficient: | 0.55 Per degree Celsius |
| Surface Quality: | 60-40 scratch-dig |
| Parallelism: | 1 arc min |
Features
- High Precision Optical Flats: Made from Fused Silica, these optical components are used as a reference to determine the flatness of unknown surfaces.
- Material Options: Available in both Fused Silica and BK7 for varying levels of precision and cost-effectiveness.
- Flatness Specifications: Choose from λ/10 or λ/20 for Fused Silica, and λ/4 or better for BK7, ensuring high accuracy for different applications.
- Single and Double-Sided Options: Available in both single and dual surface configurations to meet diverse needs.
- Size Range: Optical flats available in diameters from 25mm to 200mm, with thicknesses ranging from 12.5mm to 38mm.
- Precision Ground and Polished: Ensures superior surface quality with a surface quality rating of 60/40 and parallelism of less than 1 arc minute.
- Durable and Reliable: Made from high-quality materials with a density of 2.53 g/cm³ for BK7 and 2.2 g/cm³ for Fused Silica.
- Thermal Stability: Low expansion coefficients of 7.1 × 10⁻⁶/°C for BK7 and 0.55 × 10⁻⁶/°C for Fused Silica ensure stability under varying temperatures.
- Customizable: Custom versions available upon request. Send your drawings or specifications for a tailored solution.

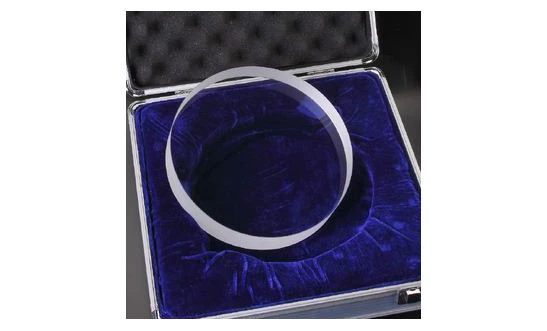

- Optional Carrying Case: Protect your optical flats with a carrying case available for purchase (CASE-S for up to 100mm, CASE-L for 150mm & 200mm).
Applications
- Surface Flatness Measurement: Serves as reference for evaluating unknown surfaces.
- Optical Windows: Integrates into optical systems requiring high-quality glass.
- Laser & Photonics Systems: Ideal for beam alignment, interferometry, and optical calibration.
- Scientific Research: Used in physics, photonics, and advanced laboratory experiments.
- Calibration Standards: Provides precise baselines for optical instrumentation.
Frequently Asked Questions
Precision optical flats are used as a reference against which the flatness of an unknown surface can be determined.
Precision optical flats are made from Fused Silica or BK7.
Tower's BK7 optical flats have a flatness specified as λ/4 or better.
Tower's precision optical flats are available from 25mm to 200mm.
Yes, Tower offers custom versions of their precision optical flats. Customers can send their drawings or specifications and Tower will provide a quotation.
