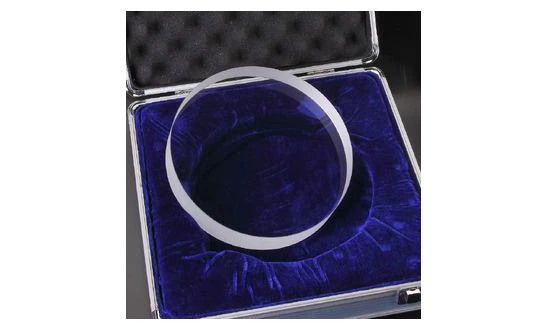

Precision Optical Flat 4542-0010
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Precision Optical Flats are essential components in the world of optics, serving as a benchmark for assessing the flatness of unknown surfaces. Crafted from high-quality Fused Silica, these optical flats are renowned for their exceptional precision and reliability. For applications where less stringent specifications are acceptable, Tower Optical also offers optical flats made from BK7, ensuring versatility and adaptability to various needs.
These optical flats are available in both single-sided and double-sided configurations, providing flexibility for different measurement requirements. The Fused Silica variants boast impressive flatness levels of λ/10 or λ/20, making them ideal for high-precision tasks. With sizes ranging from 25mm to 200mm, these optical flats cater to a wide array of applications, ensuring that you find the perfect fit for your specific needs.
Each optical flat is meticulously ground and polished to ensure the highest quality surface finish. The BK7 options, while more cost-effective, still maintain a high standard of quality, offering a flatness of λ/4 or better. This makes them suitable for less demanding applications without compromising on performance. Whether you require single or dual surface optical flats, Tower Optical provides a comprehensive range of options to meet your precise requirements.
At Tower Optical, quality is not just a promise; it is a guarantee. The precision and craftsmanship that go into each optical flat make them an invaluable tool for professionals in the field of optics. Whether you are conducting research, quality control, or any other application requiring precise surface measurement, these optical flats are designed to deliver unparalleled accuracy and reliability.
Precision Optical Flat 4542-0010
Specifications |
|
|---|---|
| Diameter: | 100 mm |
| Thickness: | 20 mm |
| Substrate: | Fused Silica |
| Flatness: | lambda/10 |
| Single Or Dual Surface: | Single |
| Ref. Index: | 1.458 |
| Abbe Number: | 67.7 |
| Exp. Coefficient: | 0.55 Per degree Celsius |
| Surface Quality: | 60-40 scratch-dig |
| Parallelism: | 1 arc min |
Features
- High-Quality Material: Precision optical flats made from Fused Silica, known for its superior optical properties.
- Flatness Options: Available in flatness of λ/10 or λ/20 for high precision applications.
- Versatile Design: Offered in both single-sided and double-sided configurations to suit various needs.
- Size Range: Available in diameters from 25mm to 200mm, catering to different application requirements.
- Precision Ground and Polished: Ensures exceptional surface quality and accuracy.
- Cost-Effective Alternatives: BK7 material available for less demanding applications, with flatness specified as λ/4 or better.
- Surface Quality: 60/40 surface quality ensures minimal imperfections.
- Parallelism: Less than 1 arc minute for precise measurements.
- Back Surface (Single): 1-2 λ @633nm for optimal performance.
- Tolerances: Diameter tolerance of ±1mm and thickness tolerance of ±1.5mm.
- Custom Options Available: Custom versions can be made to your specifications.
- Carrying Cases: Optional carrying cases available for up to 100mm (CASE-S) and for 150 & 200mm (CASE-L).
Applications
- Surface Flatness Measurement: Provides accurate reference for unknown surfaces.
- Optical Windows: Can be integrated into various optical systems.
- Laser & Photonics Experiments: Ideal for interferometry, beam alignment, and calibration.
- Scientific Research: Supports laboratory and precision optical experiments.
- Calibration Standards: Ensures dependable measurements for optical instruments.
Frequently Asked Questions
Precision optical flats are used as a reference against which the flatness of an unknown surface can be determined.
Precision optical flats are made from Fused Silica or BK7.
Tower's BK7 optical flats have a flatness specified as λ/4 or better.
Tower offers both single and double sided optical flats.
Tower's precision optical flats range from 25mm to 200mm in diameter and have a thickness tolerance of ±1.5mm.
