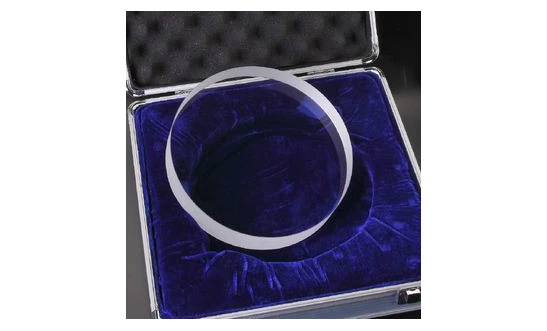

Precision Optical Flat 4542-0020
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Precision Optical Flats are essential components in the field of optics, offering unmatched accuracy and reliability. Crafted from high-quality Fused Silica, these optical flats serve as a reference standard for determining the flatness of unknown surfaces. Their exceptional flatness, specified as λ/10 or λ/20, ensures precise measurements and evaluations. For applications with less stringent requirements, Tower Optical also provides optical flats made from BK7, which offer a flatness of λ/4 or better. These versatile components can also function as windows, making them a valuable addition to any optical setup.
Available in both single-sided and double-sided configurations, Precision Optical Flats are designed to meet a wide range of needs. Their ease of use and adaptability make them suitable for various applications, from scientific research to industrial quality control. With diameters ranging from 25mm to 200mm, these optical flats are precision ground and polished to deliver the highest level of performance. The choice of material, either Fused Silica or BK7, allows users to select the best option based on their specific requirements and budget.
At Tower Optical, we understand that quality is not just a feature—it's a necessity. Our commitment to excellence ensures that each optical flat meets rigorous standards for surface quality, parallelism, and dimensional tolerances. Whether you need a standard product or a custom solution, our team is ready to assist you. We offer custom versions of all our products, tailored to your drawings or specifications, ensuring that you receive the perfect optical component for your needs.
Precision Optical Flat 4542-0020
Specifications |
|
|---|---|
| Diameter: | 200 mm |
| Thickness: | 38 mm |
| Substrate: | Fused Silica |
| Flatness: | lambda/10 |
| Single Or Dual Surface: | Dual |
| Ref. Index: | 1.458 |
| Abbe Number: | 67.7 |
| Exp. Coefficient: | 0.55 Per degree Celsius |
| Surface Quality: | 60-40 scratch-dig |
| Parallelism: | 1 arc min |
Features
- High-Quality Material: Made from Fused Silica for superior optical performance, with an option for BK7 for less demanding applications.
- Exceptional Flatness: Available with flatness specifications of λ/10 or λ/20 for precise measurements.
- Versatile Options: Choose between single-sided and double-sided optical flats to suit your specific needs.
- Wide Range of Sizes: Available in diameters from 25mm to 200mm, catering to various applications.
- Precision Ground and Polished: Ensures high-quality surface finish and accuracy.
- Cost-Effective BK7 Option: Offers a budget-friendly alternative with reduced quality for less critical applications.
- Surface Quality: 60/40 surface quality ensures minimal imperfections.
- Precision Parallelism: Less than 1 arc minute for accurate alignment.
- Customizable: Custom versions available upon request to meet specific requirements.
- Optional Carrying Case: Available for purchase to protect your optical flats.
Applications
- Optical Metrology: Provides reference standards for flatness measurement.
- Interferometry: Enables precision surface testing and calibration.
- Laboratory & Research: Ideal for optics testing, verification, and alignment.
- Optical Windows: Can serve as precision optical windows in setups requiring high stability.
- Industrial Quality Control: Supports inspection of polished surfaces and optical components.
Frequently Asked Questions
Precision optical flats are used as a reference against which the flatness of an unknown surface can be determined.
Precision optical flats are made of Fused Silica or BK7.
The flatness specification of the BK7 optical flats is λ/4 or better.
Precision optical flats are available in sizes ranging from 25mm to 200mm.
Yes, carrying cases are available for the precision optical flats. Customers can order CASE-S for up to 100mm for $20, and CASE-L for 150 & 200mm for $50.
